Biesse Rover 24 L

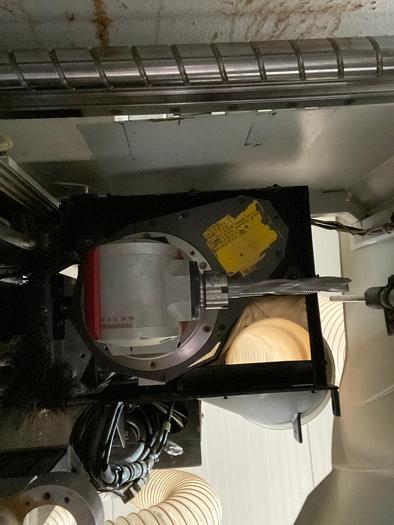

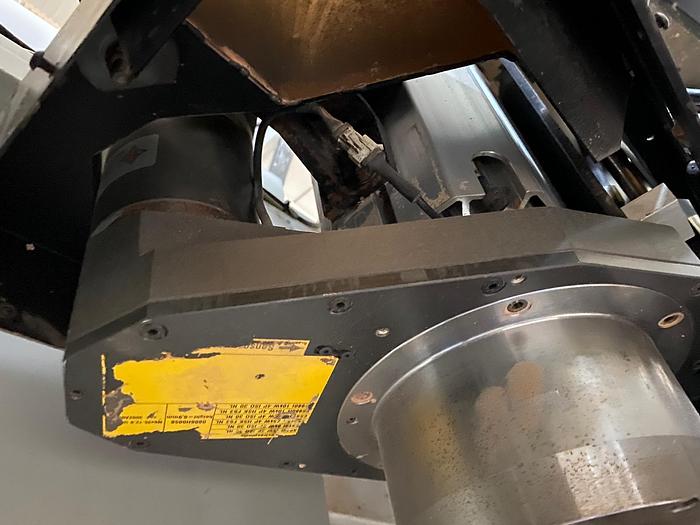

Numerical Control Nc 1000 with Biesse Works Software Working field in X axis 4500 mm Working field in Y axis 1380 mm Working stroke in Z axis 155 mm N ° 2 work fields Bar worktop N ° 8 adjustable bars for the suction cups support with display of working quotas N ° 3 adjustable suction cups for each bar with vacuum seal for fixing the panel during processing N ° 1 vertical electrospindle with C Vector axis, with automatic tool change Automatic tool change system with 10 positions positioned on the rear of the machine Drilling head with spindles arranged as follows: - N ° 7 vertical in X axis - N ° 7 vertical in Y axis - N ° 4 horizontal in X axis - N ° 2 horizontal in Y axis - N ° 1 blade unit integrated in the X axis Front protection and safety system with carpets Chip evacuation system with motorized belt Automatic lubrication system Air conditioning system for cooling and cleaning the machine control 110 m3 / h vacuum pump
