Masterwood Project 416 L

Sold

Specifications

ManufacturerMasterwood
ModelProject 416 L
Stock NumberMGF001

Description

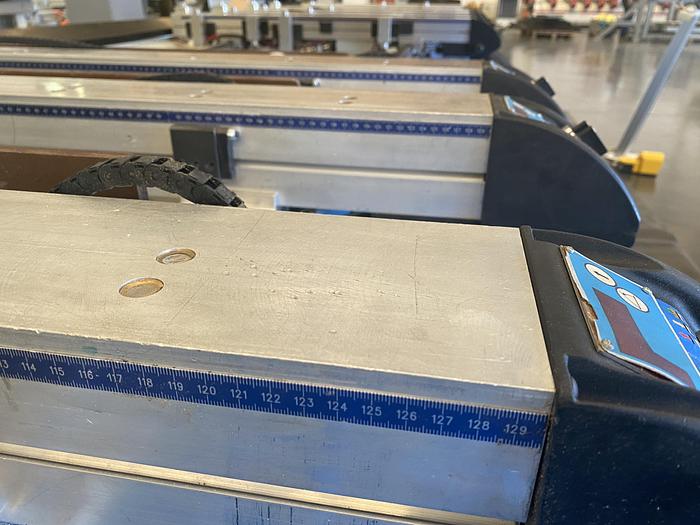

Numerical Control MasterWork MW310 with PC and Windows operating system TUBE LESS system bar worktop N ° 8 manually adjustable working bars N ° 3 panel support suction cups for each bar - manually adjustable - Schmalz system Working field in X mm 5200 Working field in Y mm 1360 Working field in Z mm 110 N ° 1 Vertical pantograph with Vektor C axis and automatic tool change - KW 8 Tool change system positioned on the operating head at 8 positions Tool change system positioned on the back of the machine with 14 positions N ° 1 Horizontal pantograph with double output KW 3 N ° 1 Horizontal pantograph with inclination + - 8 ° KW 3 Drilling head with spindles divided as follows: N ° 8 vertical spindles in X N ° 3 vertical spindles in Y N ° 4 horizontal spindles in X N ° 2 horizontal spindles in 2 Front safety mats Perimeter protection nets 100 m3 \ h vacuum pump Total installed power 30.5 KW Machine weight 4600 KG
