2009 Morbidelli Universal 3615

Sold

Specifications

ManufacturerMorbidelli
ModelUniversal 3615
Year2009
Stock NumberNegotiation

Description

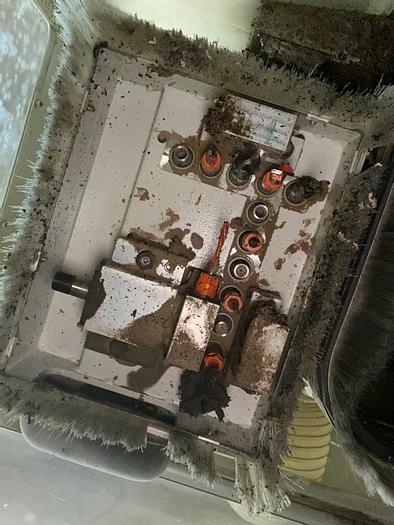

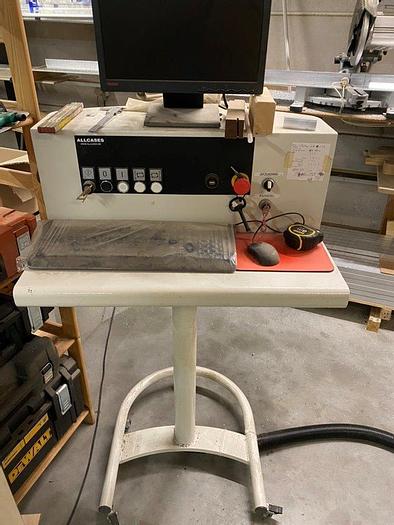

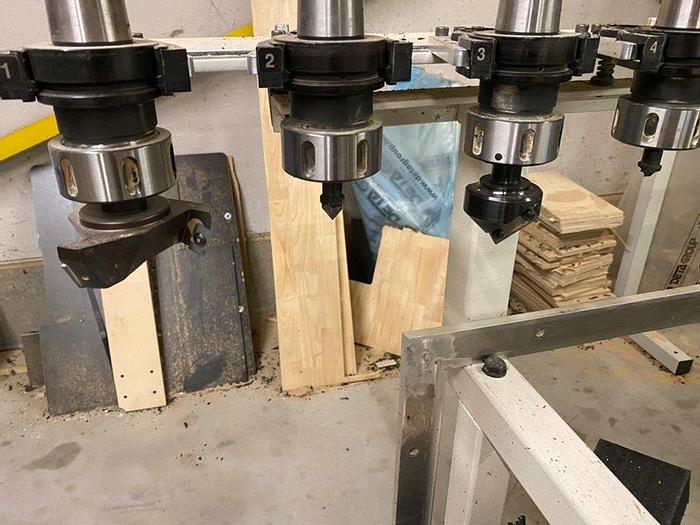

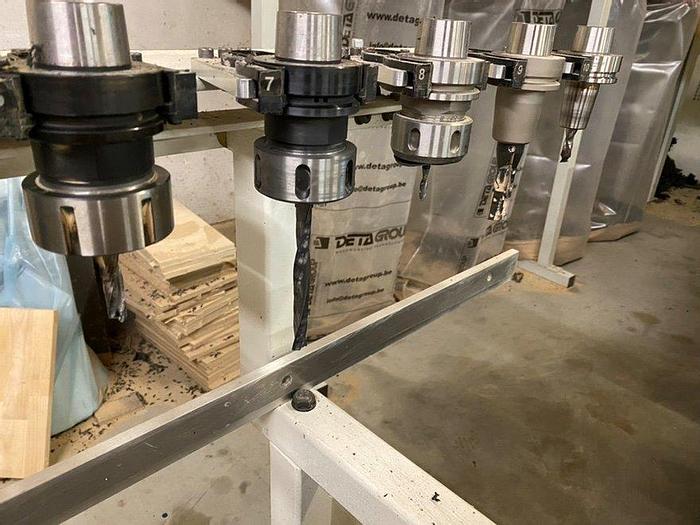

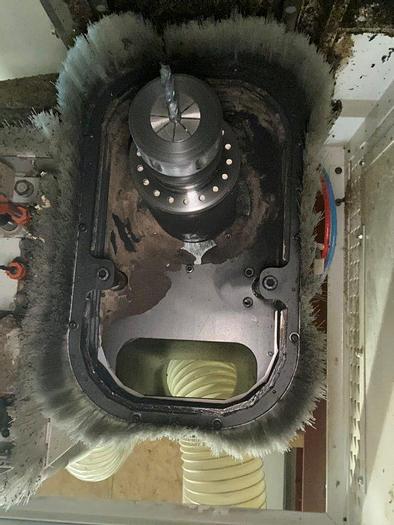

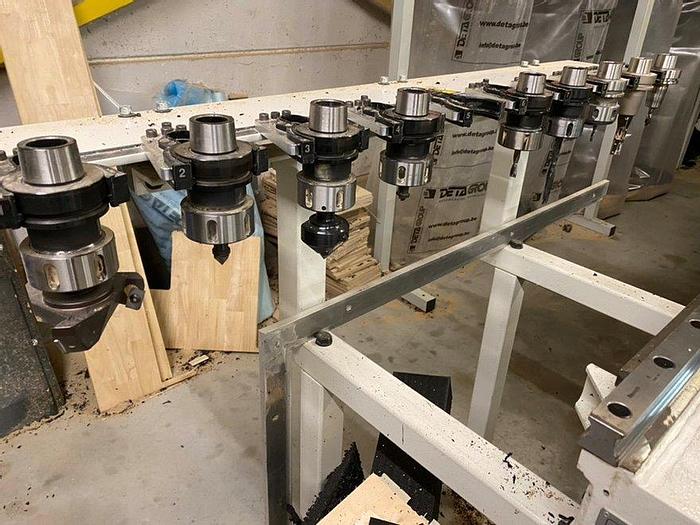

Numerical Control Pc Office Working field in X axis 3600 mm Working field in Y axis 2200 mm Working stroke in Z axis 150 mm Nesting work plan 2 work areas Centralized management of 8 vacuum zones Side lifting table with suction cups system for detaching the panels Automatic suction cup loading system Automatic unloading system with motorized belt Pieces ejection pusher Panel alignment device in Y axis N ° 1 3-axis vertical electrospindle, with automatic tool change, motor KW 13, liquid cooling, type cones Hsk Automatic tool change system with 12 positions - positioned on the rear of the machine Boring head with 18 spindles arranged as follows: - N ° 7 vertical in X axis - N ° 5 vertical in Y axis - N ° 4 horizontal in X axis - N ° 2 horizontal in Y axis N ° 1 integrated 120 mm blade in X axis for grooving Predisposition for angular transmission head Optimized and centralized suction Suction from below on the piece unloading belt Suction from above on the piece unloading belt Side bulkheads for piece unloading belt Protection and safety system with perimeter grids Safety device with photocells Automatic lubrication system Air conditioning system for cooling and cleaning the machine control N ° 2 Vacuum pump mc / h 250 each
