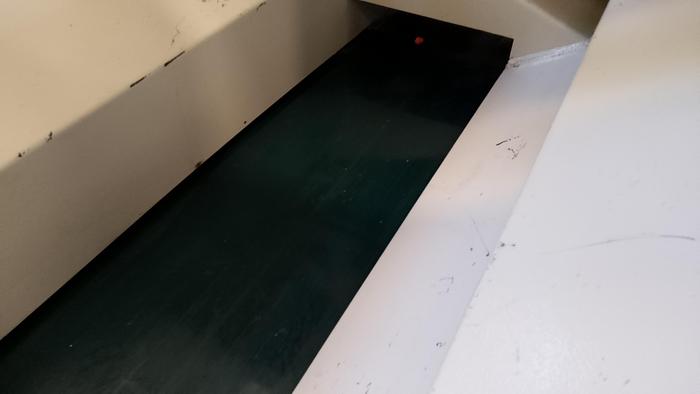

2014 Morbidelli Universal X5 HD 36

Basic PC Numerical Control with XILOG PLUS software Movable pine cone with command functions Working range in X axis mm 3548 Working range in Y axis mm 1350 Working range in Z axis mm. 180 Z-axis stroke mm 400 N° 2 work fields in X N° 6 manually adjustable panel support bars N° 3 Suction cups for holding the panel for each bar N° 4 pneumatic bakelite bars for lifting the panel (loading and unloading aid) N° 1 5-axis vertical electrospindle with automatic tool changer KW 11 cones HSK 63 connection Liquid pantograph cooling system 10-position lateral automatic tool changer 12-position automatic tool changer on the operating head Drilling head composed of: N° 20 vertical spindles (10 in X axis and 5+5 in Y axis) N° 4 horizontal spindles in X axis N° 4 horizontal spindles in Y axis Safety system with bumper system on the operating head N° 1 vacuum pump 100 m3\h Automatic lubrication
