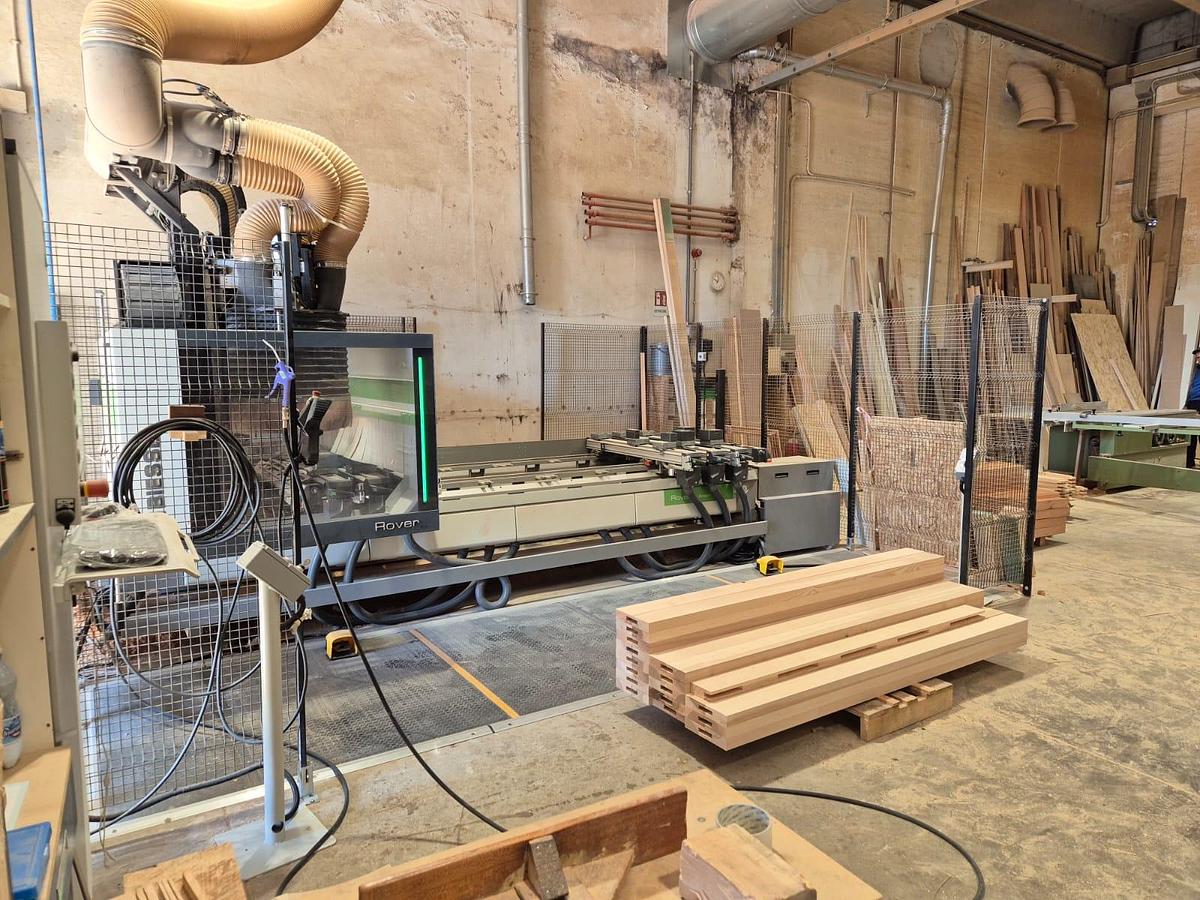

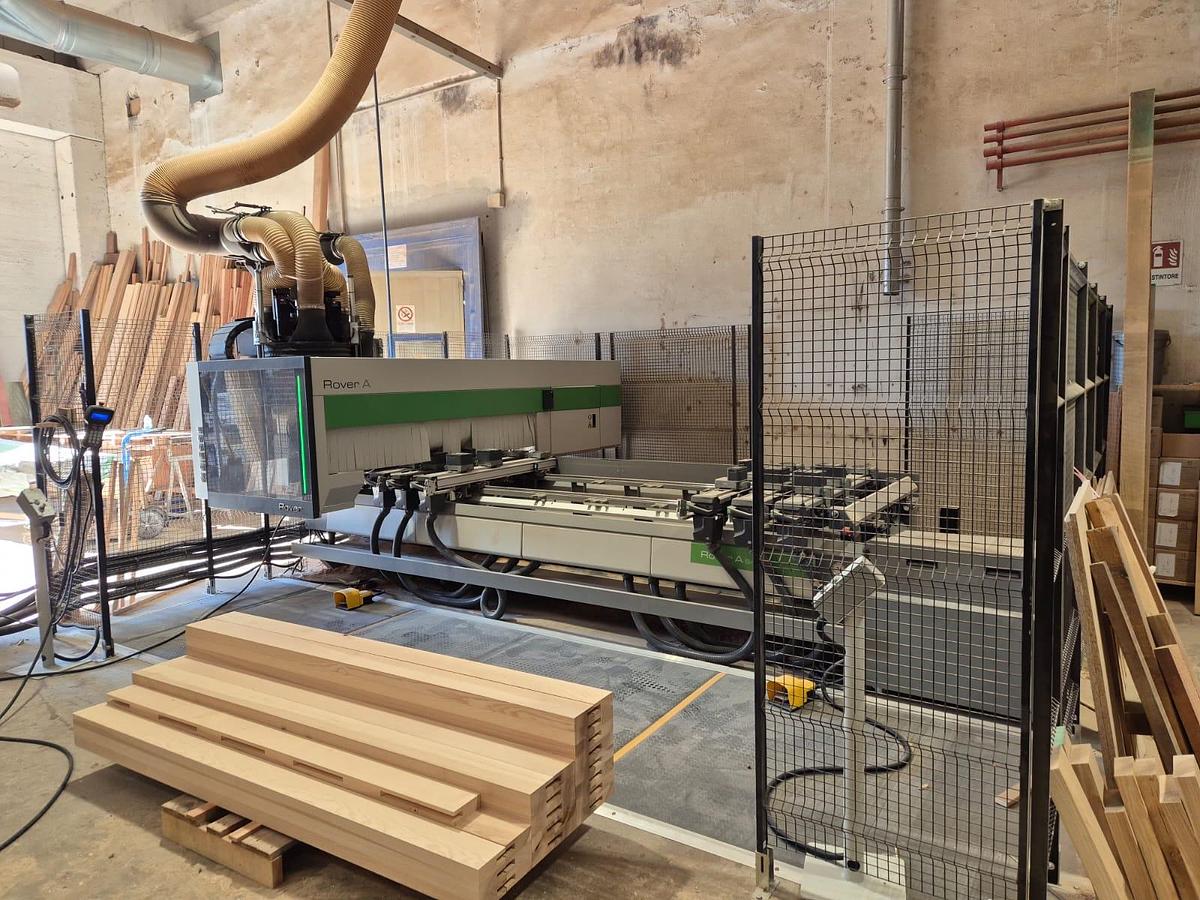

2022 Biesse Rover A Smart 1632

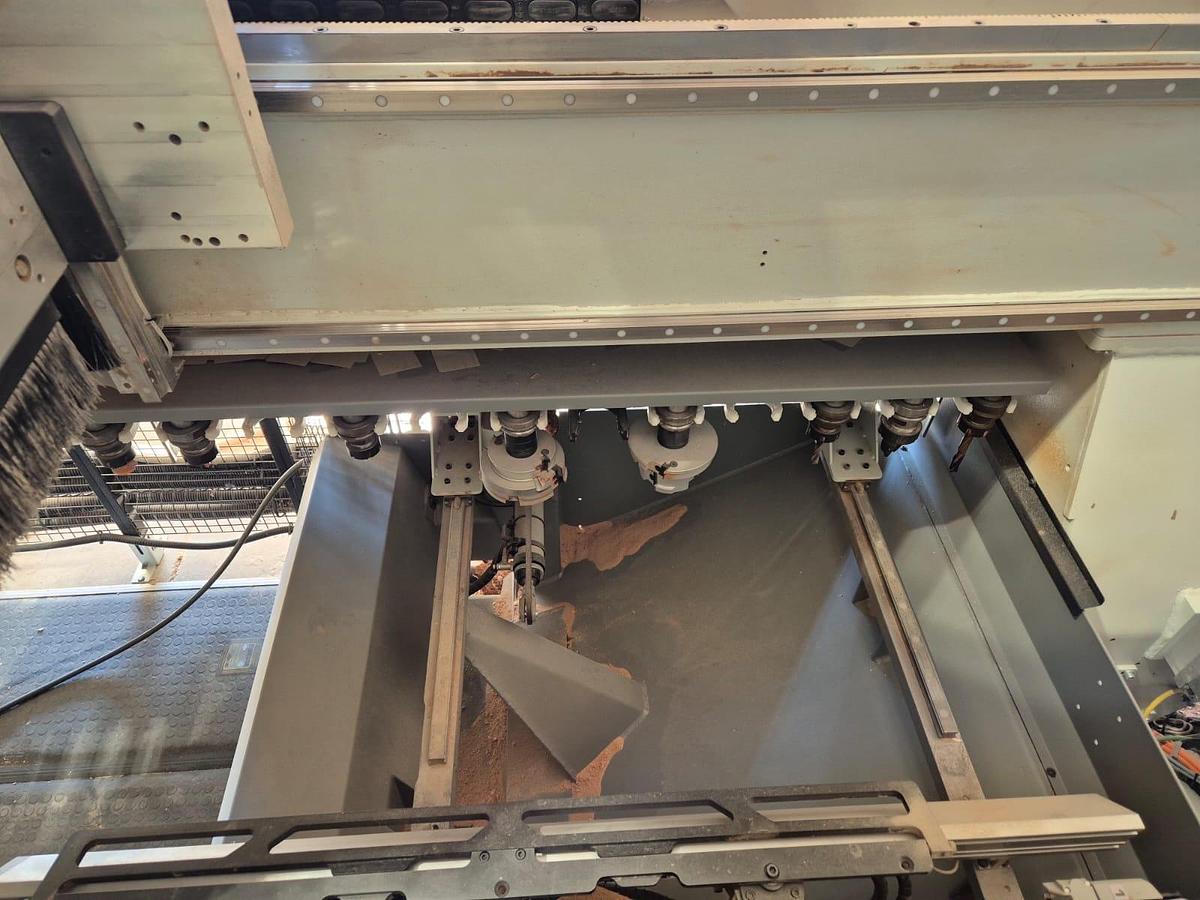

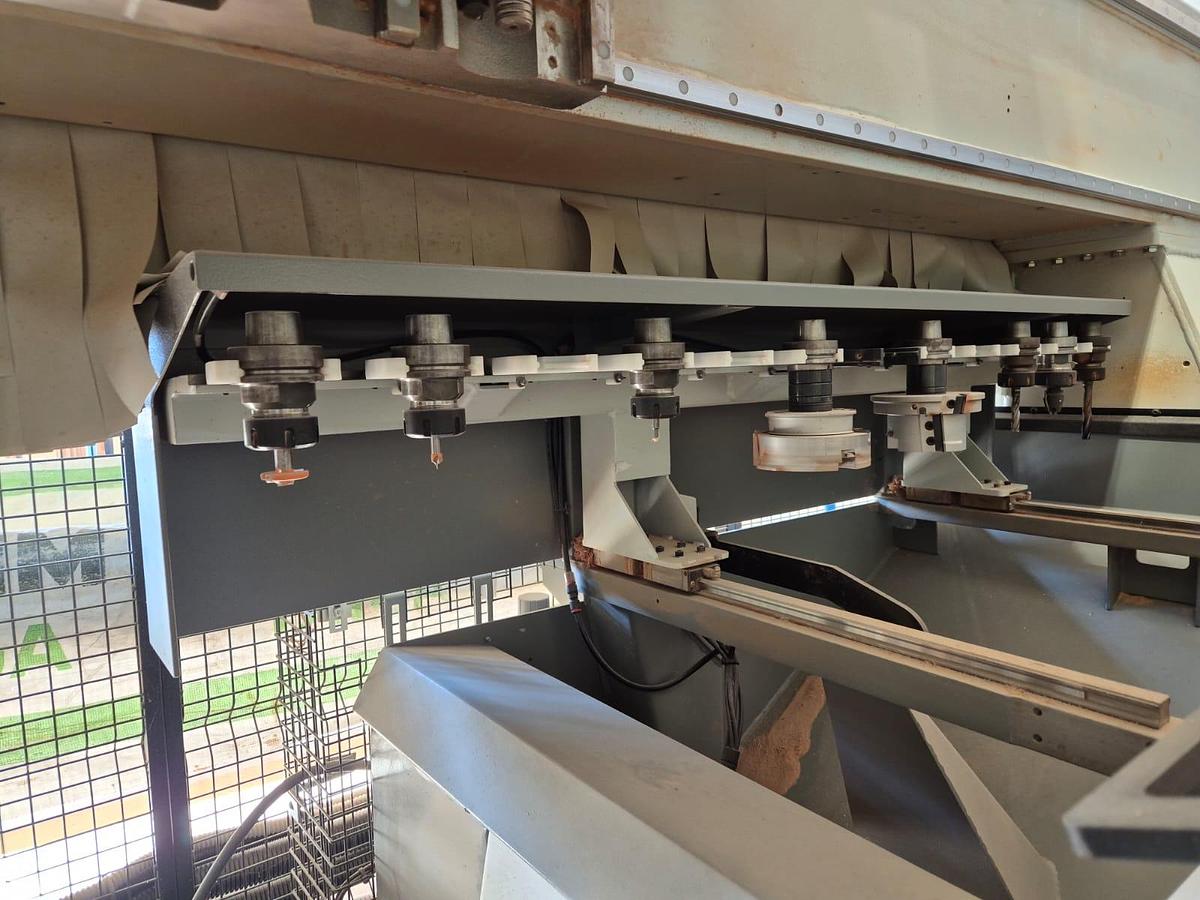

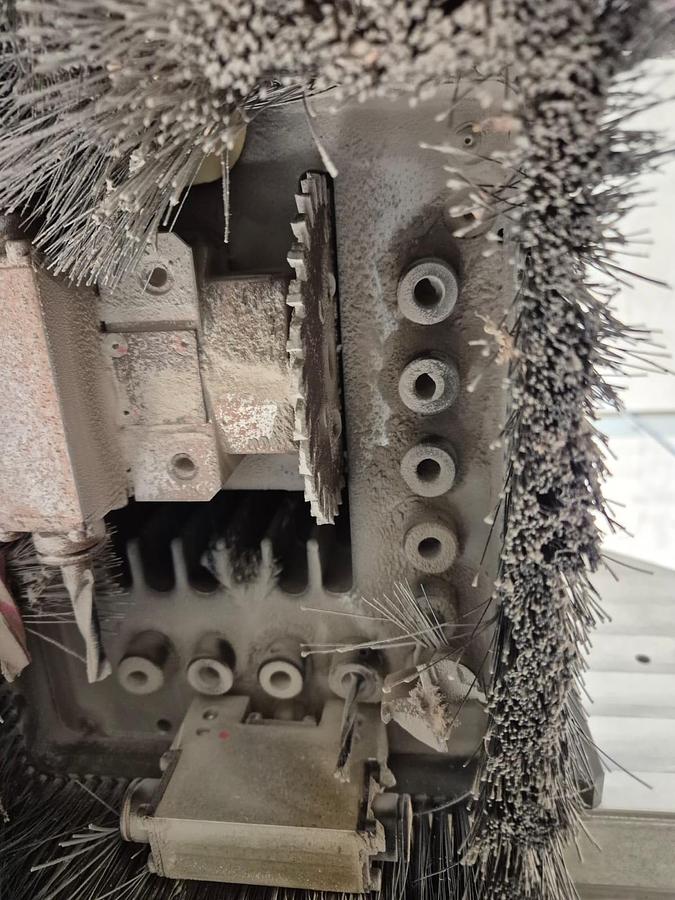

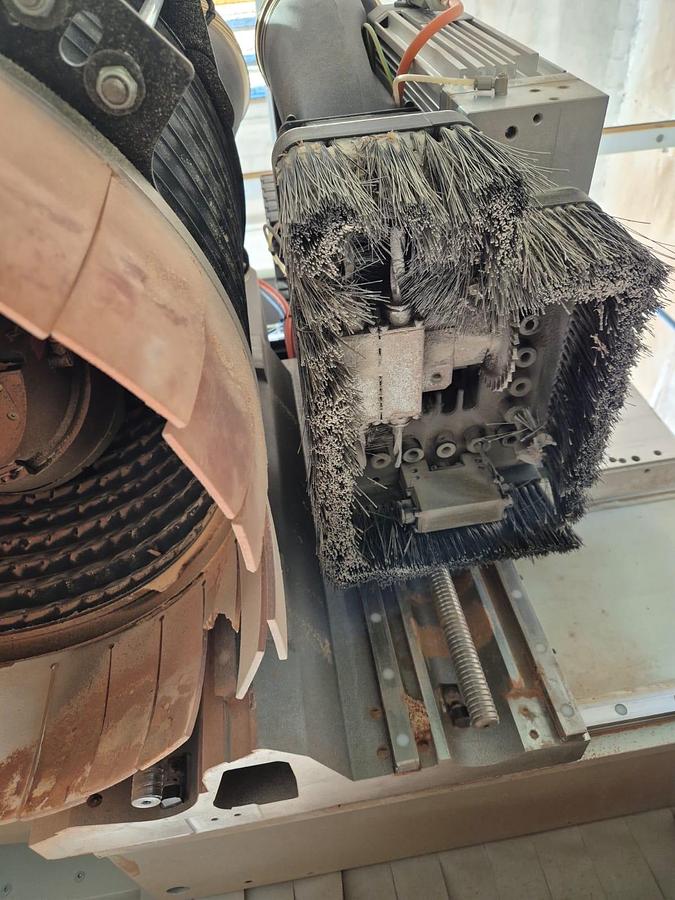

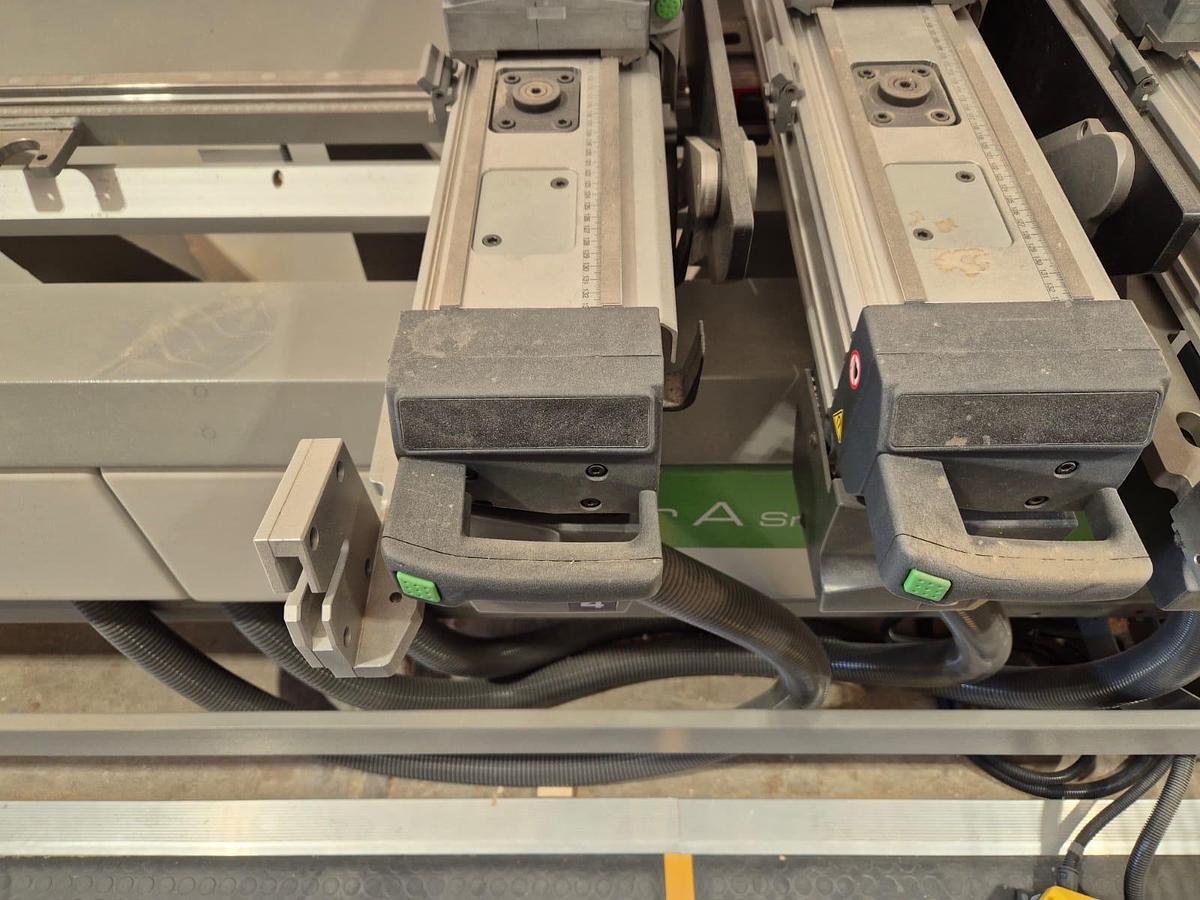

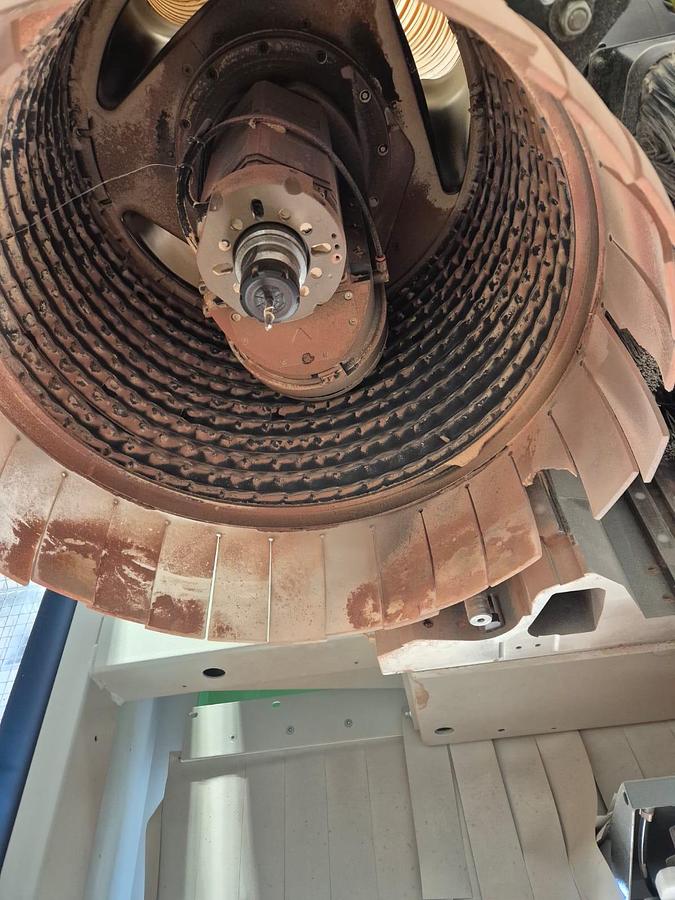

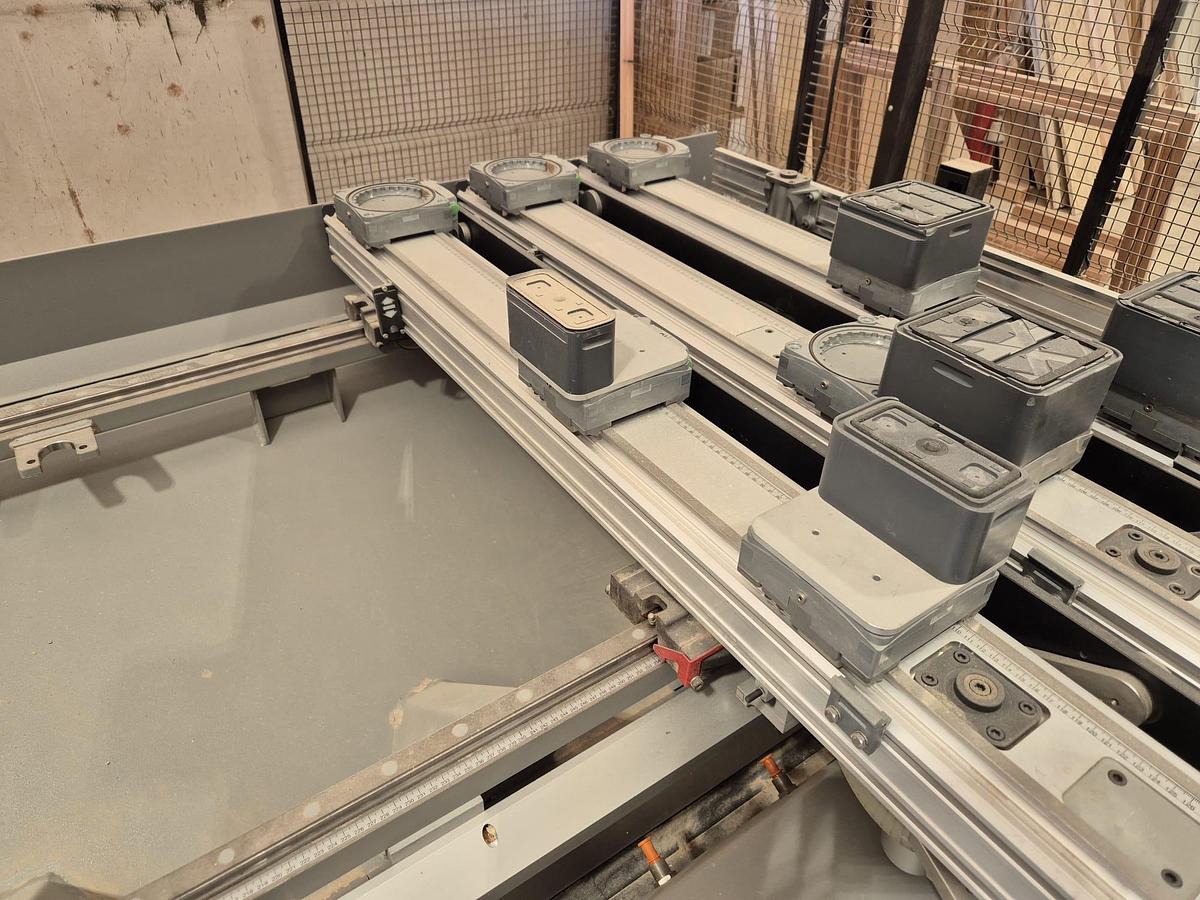

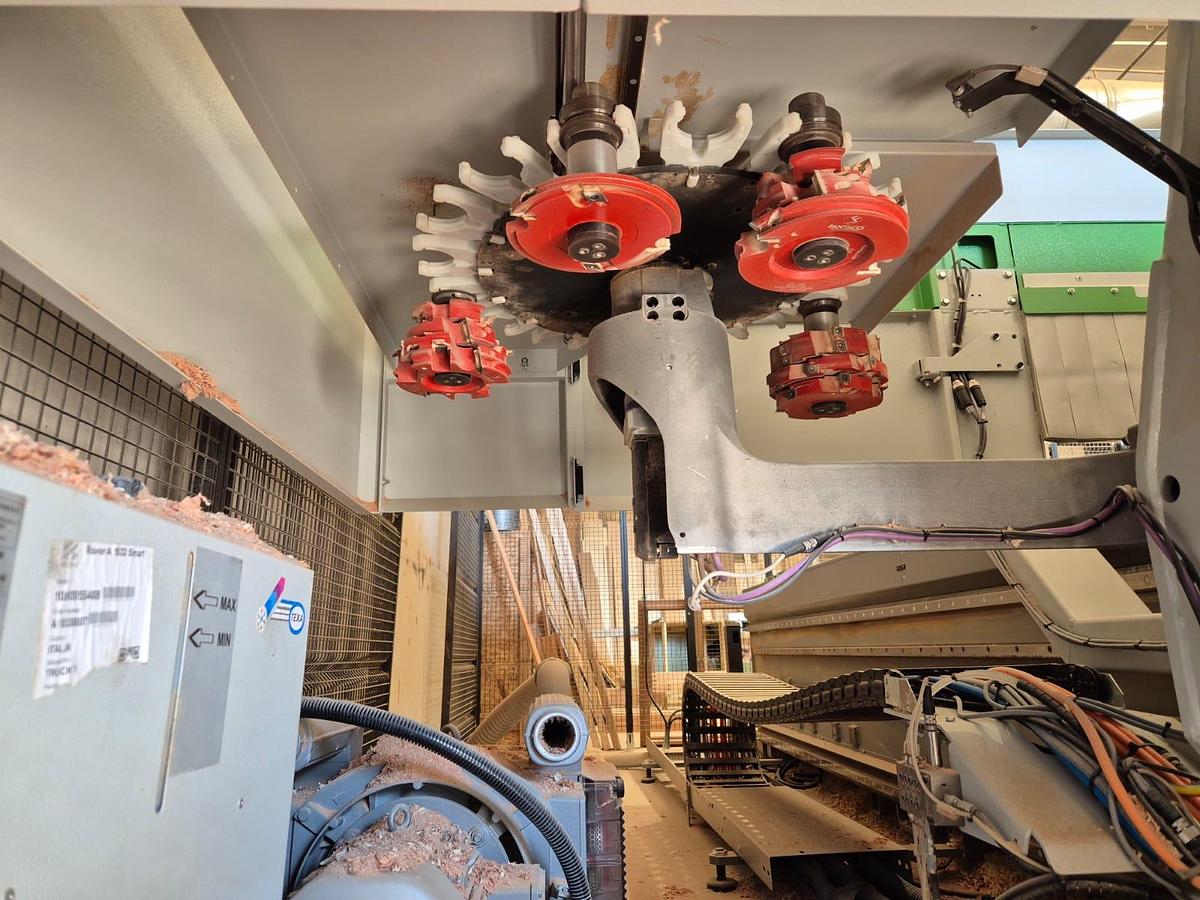

BH 660 Numerical Control with BSolid Working field in X axis mm 3280 Working field in Y axis mm 1580 Working field in Z axis alignment mm 200 No. 2 working fields in X axis Bar worktop 6 adjustable bars for the suction cup support N° 4 pneumatic Bakelite bars for lifting the panel No. 3 adjustable suction cups for each bar with vacuum seal for fixing the panel during processing No. 1 vertical five-axis electro-spindle, with automatic tool changer, liquid cooling, HSK63 type taper, 13 kW (HP 17.4) Automatic tool changer system with 16 positions on a spindle placed along the X axis at the back of the machine Automatic tool magazine with 12 positions located on the machine side Drill head BH16 L with spindles arranged as follows: - N° 6 verticals on X axis - 4 verticals aligned in Y axis - 4 horizontal in X axis - No. 2 horizontals on Y axis - 1 Integrated blade for groove cutting Chip evacuation system with powered belt Front protection and safety system with carpets Automatic lubrication system Air conditioning system for cooling and cleaning of machine control 250 m³/h vacuum pump TECHNICAL DETAILS TO BE CHECKED
