2008 Masterwood Project 415
Specifications
| Manufacturer | Masterwood |
| Model | Project 415 |
| Year | 2008 |
| Stock Number | MGB009 |
Description

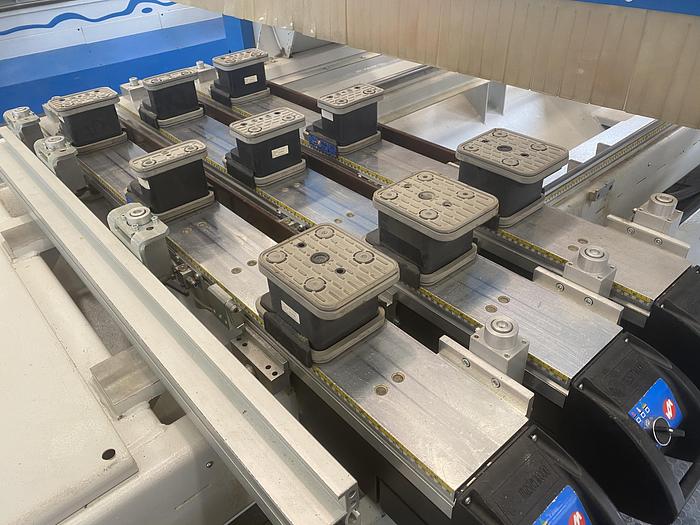

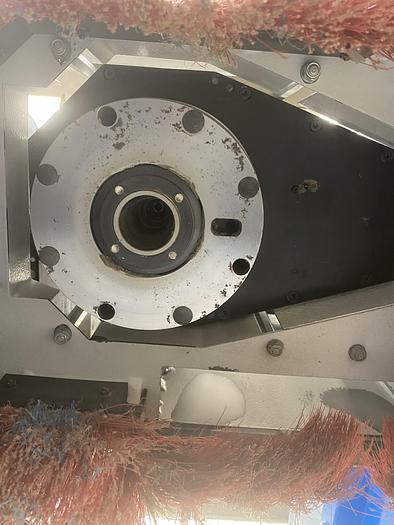

Control: MASTERWORK MW 310 Working range in x mm 3200 Working range in y mm 1400 Working field in z mm 110 2 work fields Worktop with bars N ° 6 adjustable bars - for the suction cups support N ° 4 pneumatic bakelite bars for lifting the panel N ° 2 adjustable suction cups for each bar with vacuum seal for fixing the panel during processing N ° 1 vertical electrospindle with C Vector axis, with automatic tool change Automatic tool change system with 12 positions - positioned on the rear of the machine Boring head with 19 spindles arranged as follows: - N ° 8 vertical in X axis - N ° 5 vertical in Y axis - N ° 4 horizontal in X axis - N ° 2 horizontal in Y axis Front protection and safety system with carpets Automatic lubrication system Vacuum pump mc / h 100 Vacuum pump
