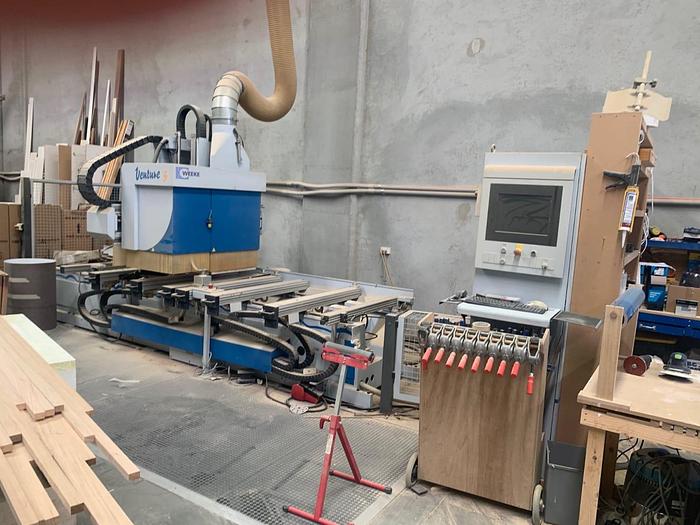

Weeke Bhc Venture 5

Numerical Control Power Control with Wood Wop Software Working field in X axis 3250 mm Working field in Y axis 1220 mm Working field in Z axis 125 mm Working stroke in Z axis 370 mm 2 work fields Worktop with bars 6 manually adjustable bars for the suction cups support N ° 3 pneumatic bakelite bars for lifting the panel N ° 2 manually adjustable suction cups for each bar with vacuum seal for fixing the panel during the processing N ° 1 vertical electrospindle with C Vector axis, with automatic tool change N ° 2 automatic tool change system with 8 + 8 positions Boring head with 18 spindles arranged as follows: - N ° 6 vertical in X axis - N ° 6 vertical in Y axis - N ° 4 horizontal in X axis - N ° 2 horizontal in Y axis Integrated blade for making grooves Front protection and safety system with carpets Vacuum pump mc / h 100
