2015 Selco WNT 630

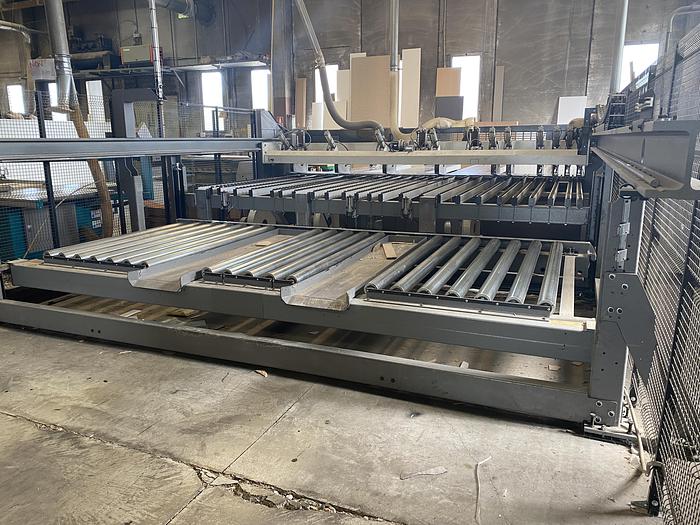

Numerical Control on PC with Windows operating system and OSI plus software Quick Opti software for the optimization of cutting patterns on the machine + office OS- Labeling software for graphic labeling Industrial label printer Working dimensions 4500 x 2200 mm Max blade projection (mm) 108 Max opening of the clamps for locking panels mm 100 Device for cutting thin panels (4 mm approx) Panel measuring system for manual cuts Rear lifting table (stack at loading mm 630) for automatic loading with motorized rollers Pneumatic feeler for counting on the lifting table recommended for panels with protruding coating e corrugated panels N. 10 pneumatic grippers on the pusher carriage Air curtain machine table for delicate panels Lateral aligner integrated in the saw carriage (min mm 0 - max mm 4200) Cutting line closing system to prevent the longitudinal trims from falling Ascent of the blades by means of brushless motors and ball screws Controlled opening of the presser Digiset device for electronic adjustment of the scoring blade with the main blade Quick change blade release system Scoring unit (max blade diameter / power) 200 / Kw 2,2 - with electronic exclusion from the control panel Main blade group (max blade diameter / power) 400 / Kw 18.5 Adjustable speed of the saw carriage (m / min) 1 - 160 with Brushless motor Pusher carriage speed 90 mt / min with Brushless motor N. 4 front air curtain desks with top extension to 3050 x 620 mm each Automatic lubrication Protection grids Air conditioner for electrical panel
