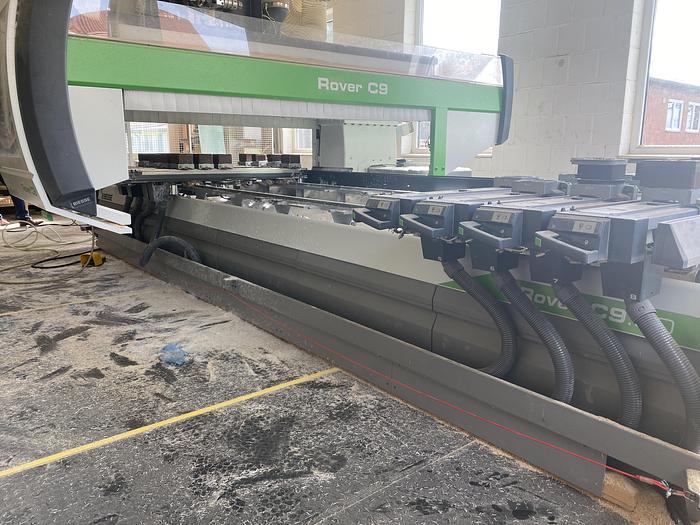

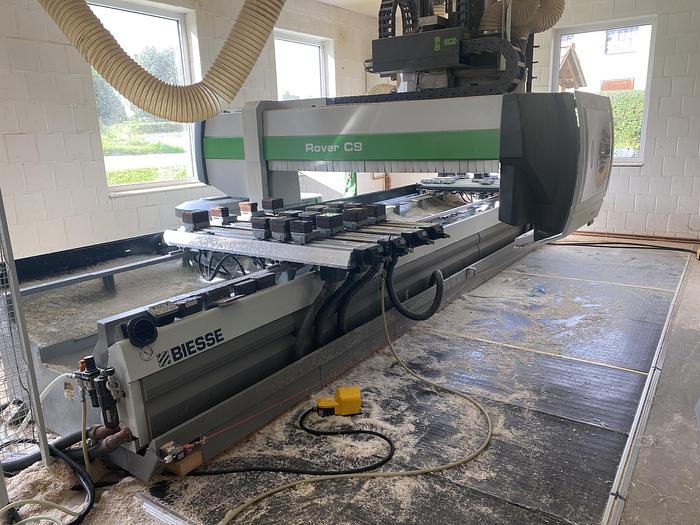

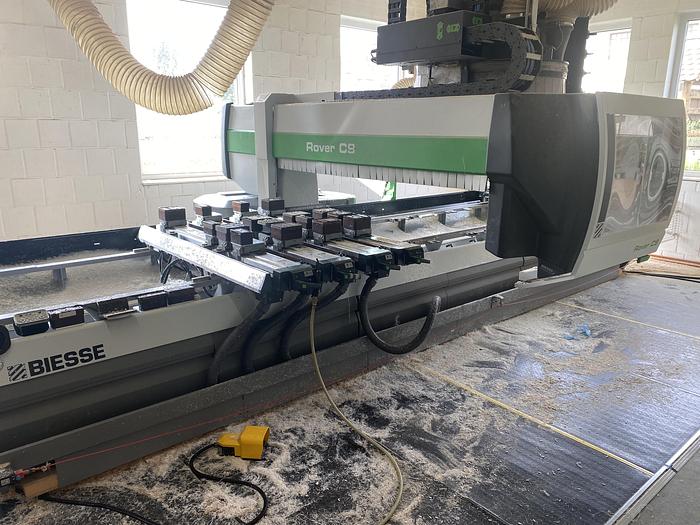

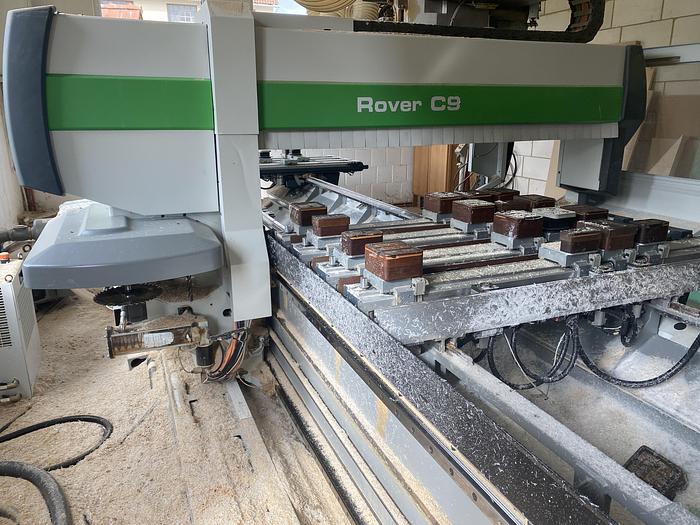

2009 Biesse Rover C 9.50 Conf. 3

Sold

Specifications

ManufacturerBiesse
ModelRover C 9.50 Conf. 3
Year2009
Stock NumberNegotiation

Description

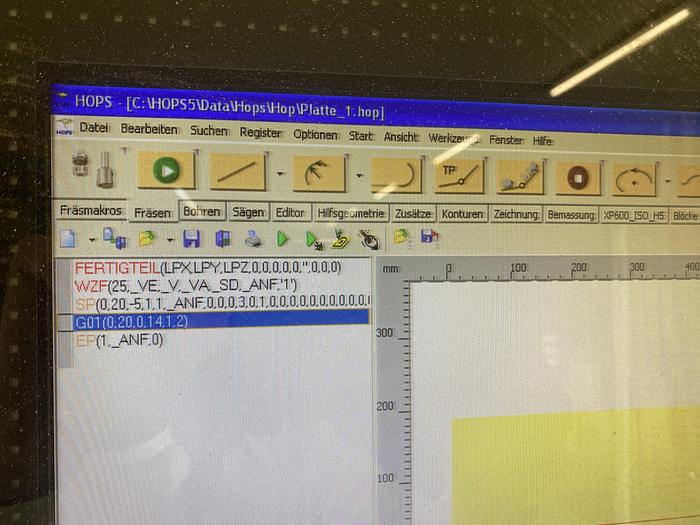

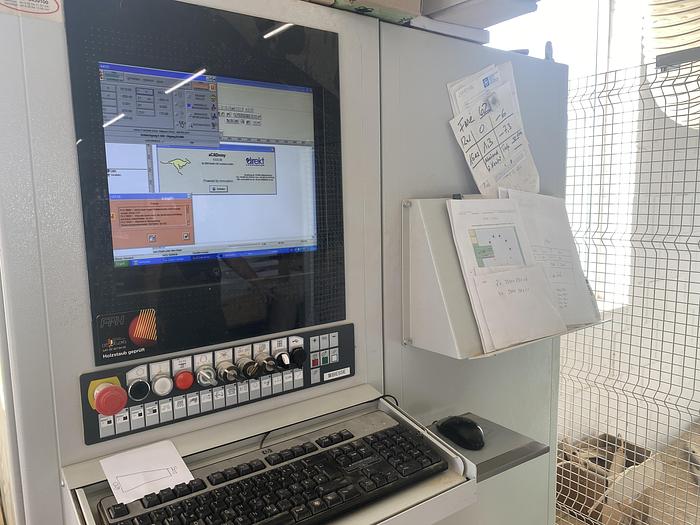

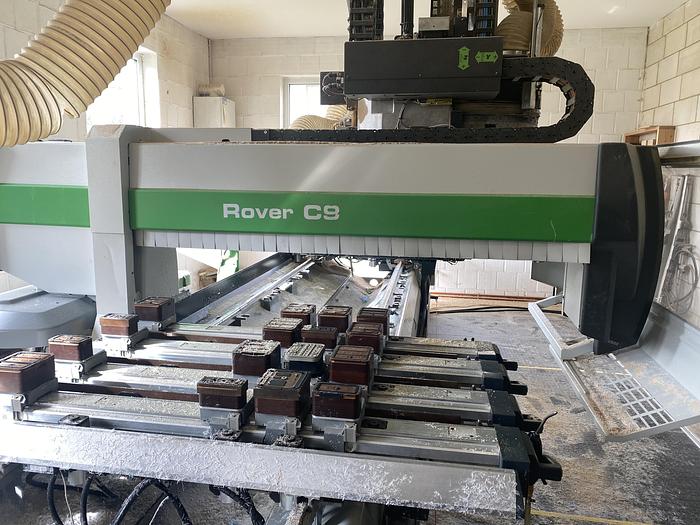

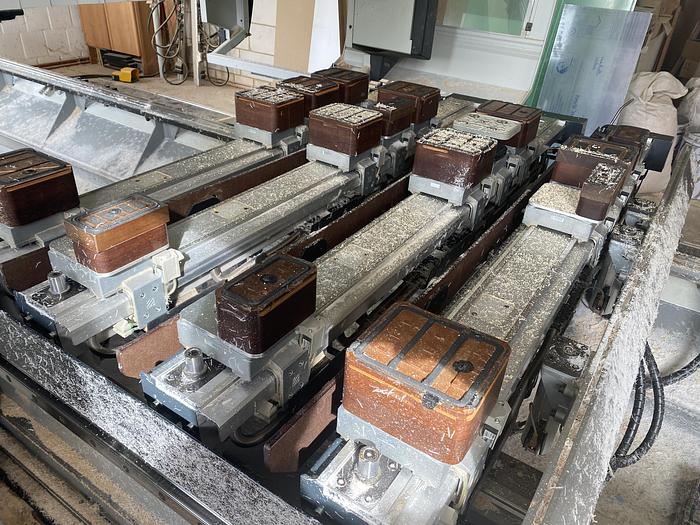

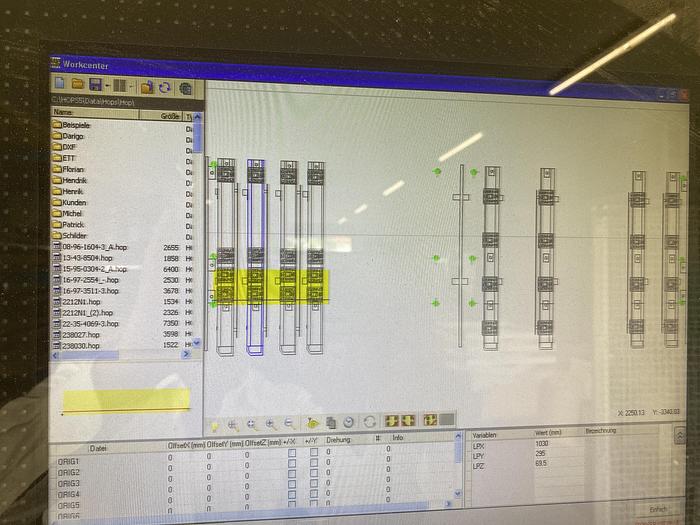

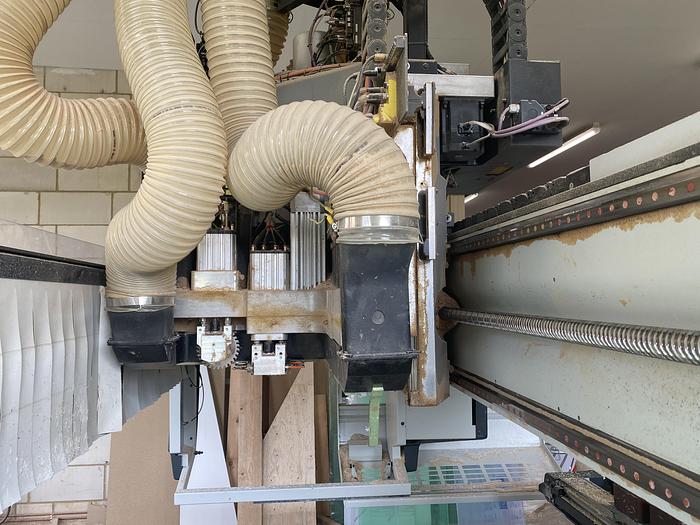

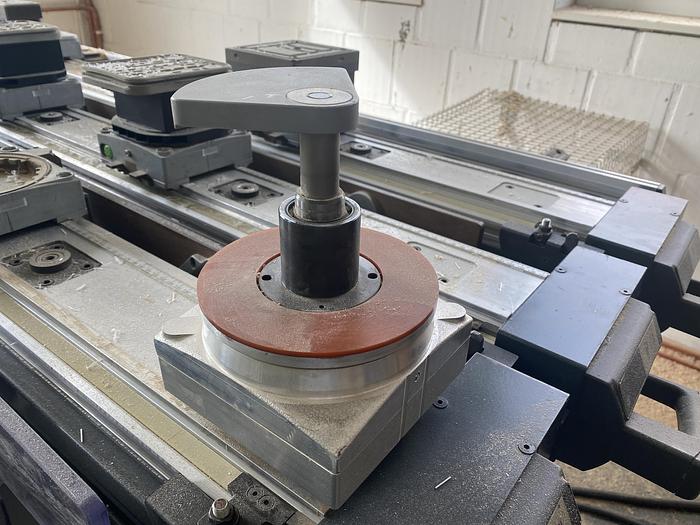

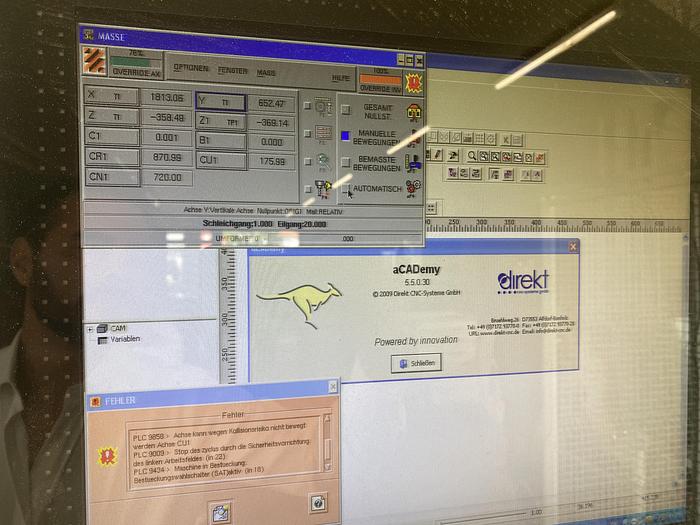

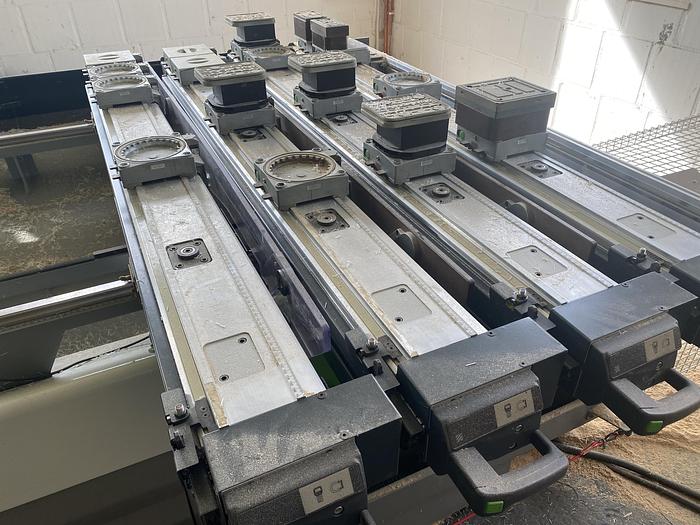

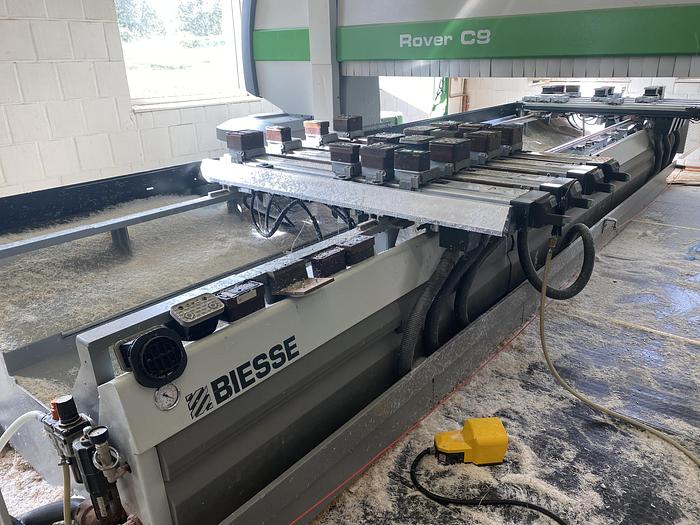

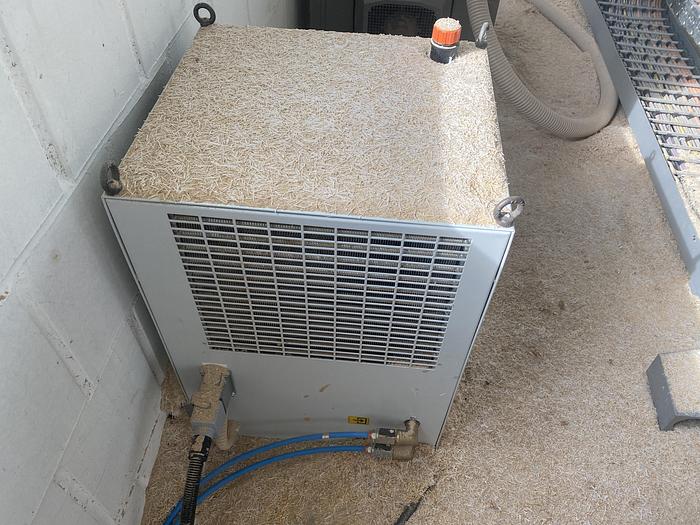

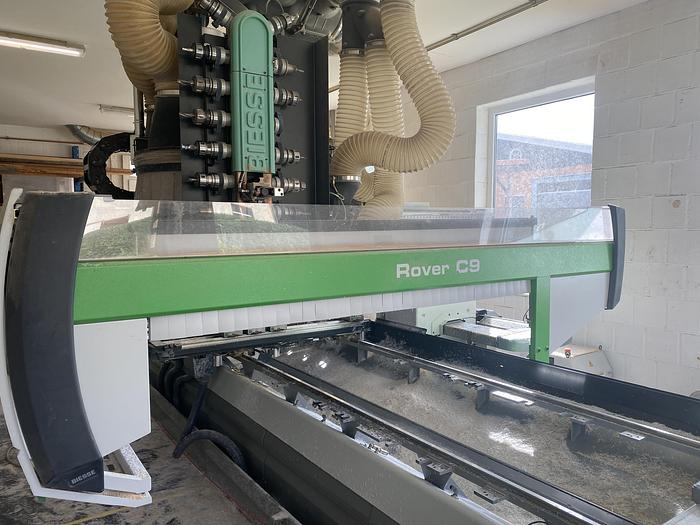

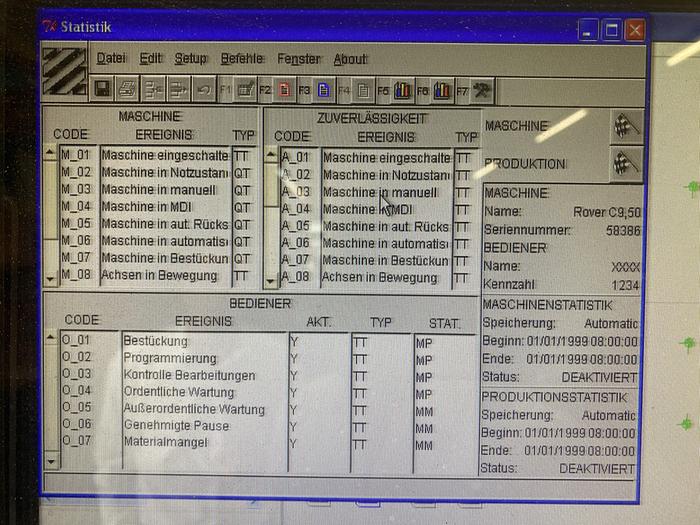

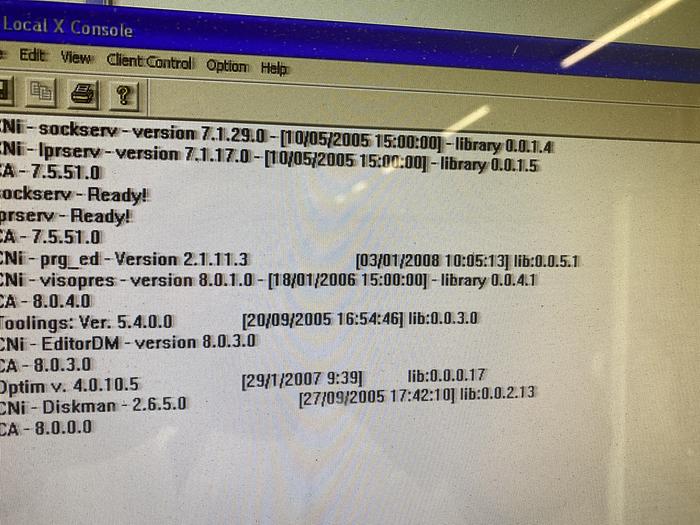

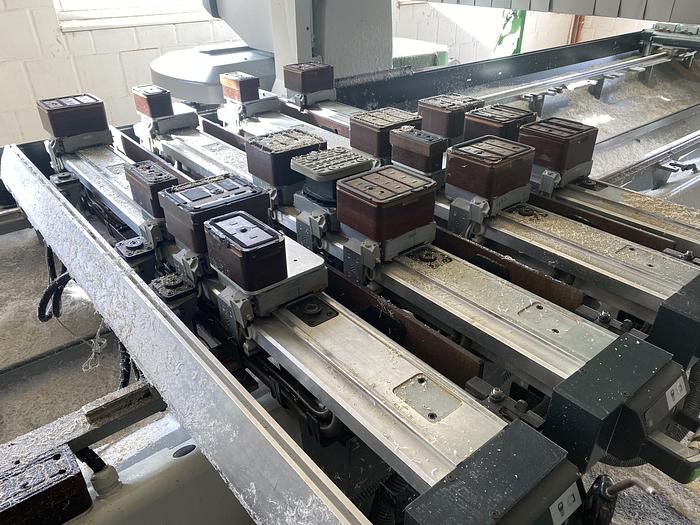

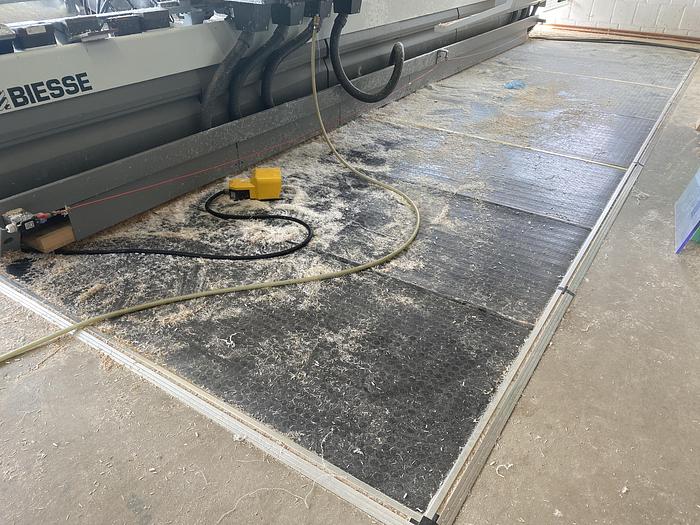

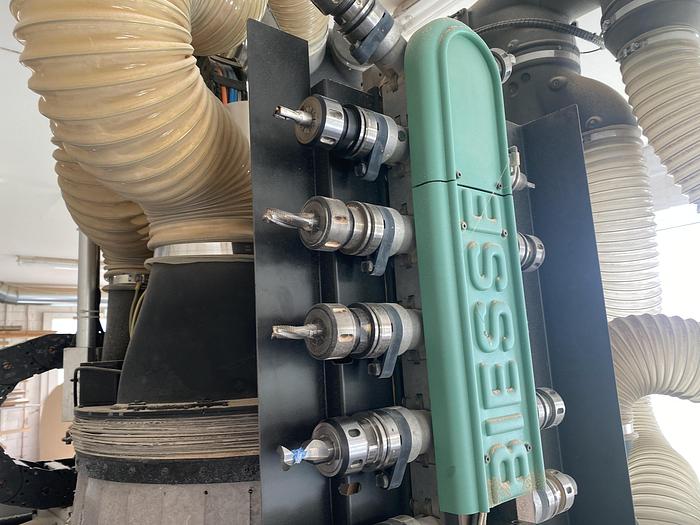

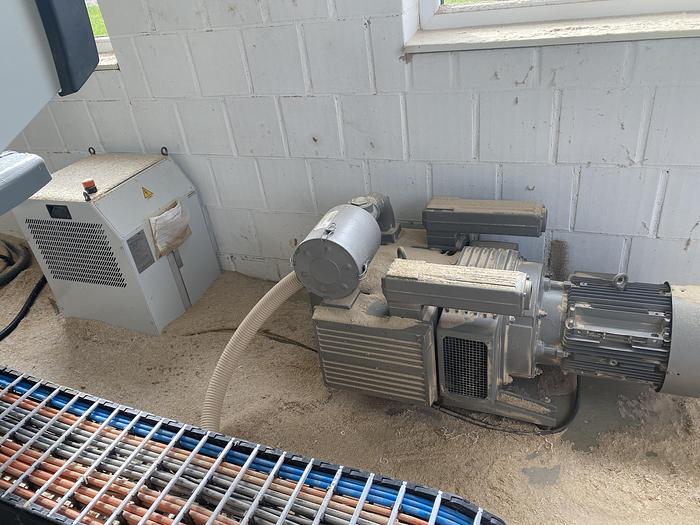

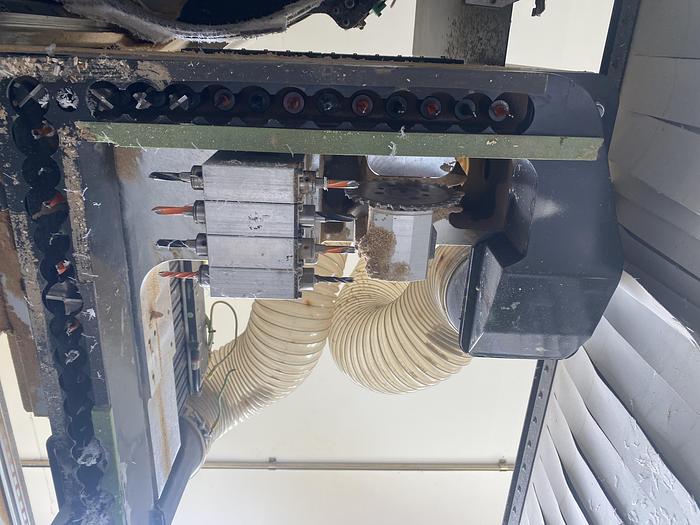

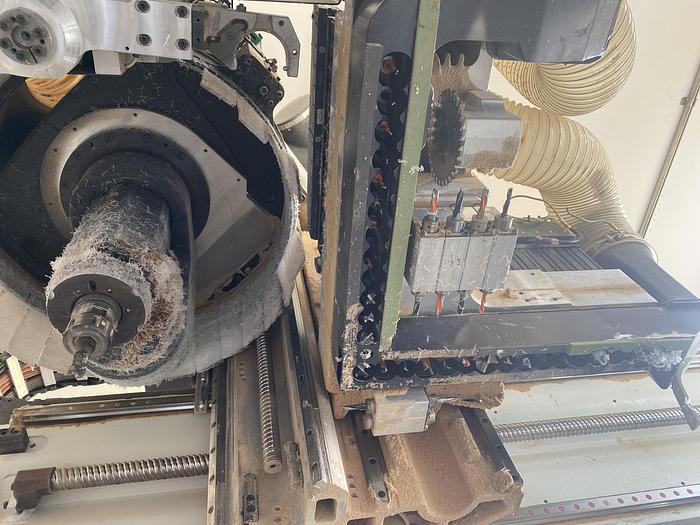

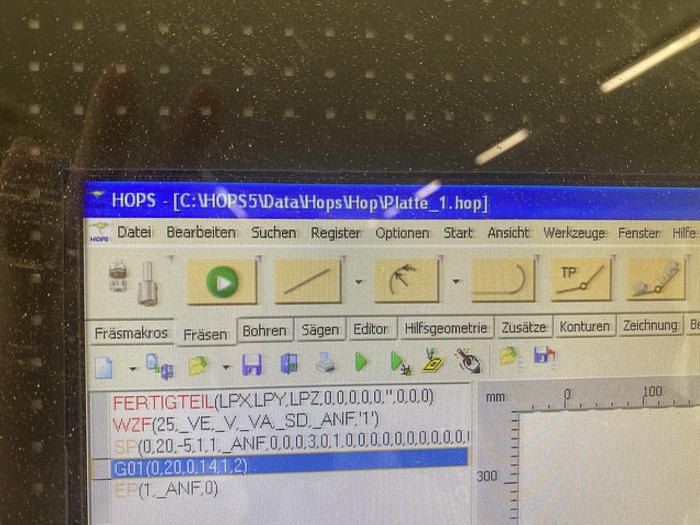

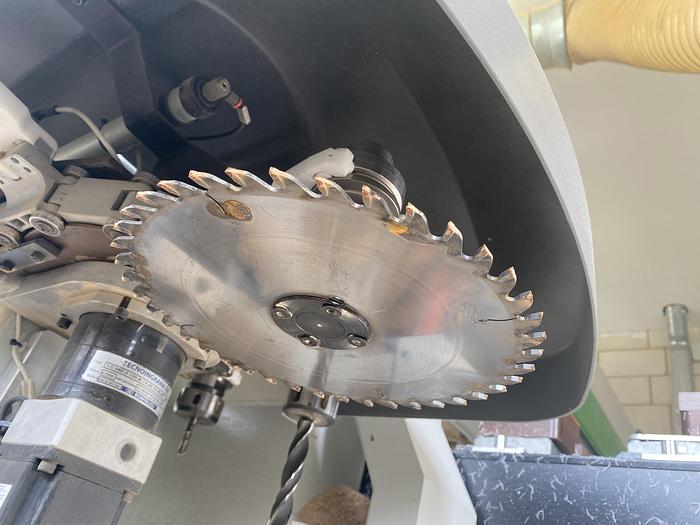

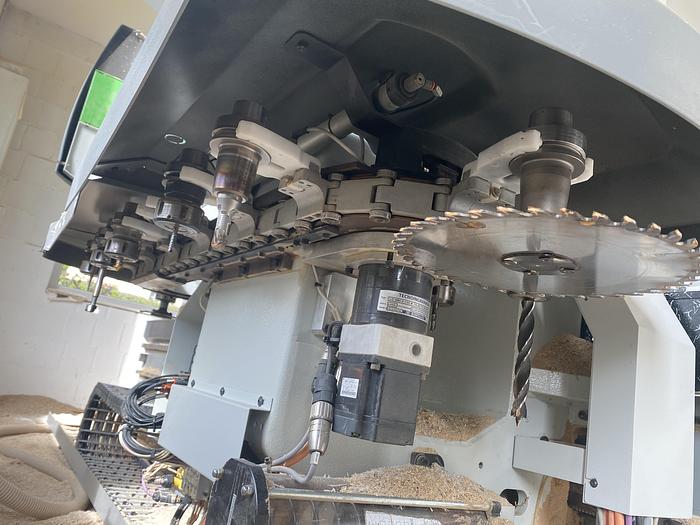

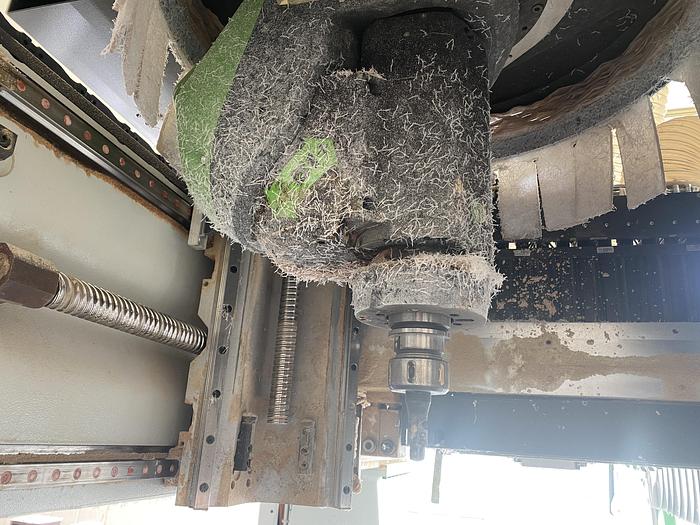

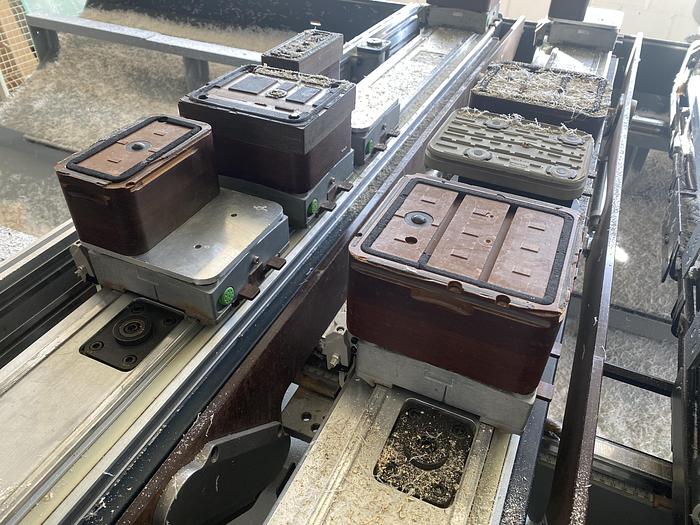

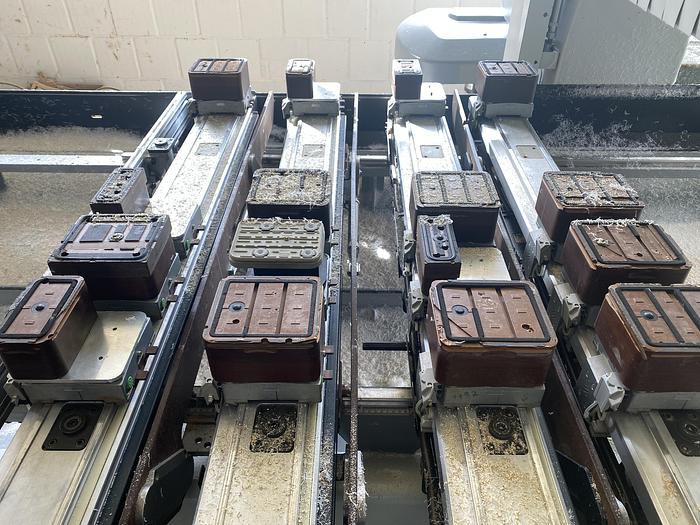

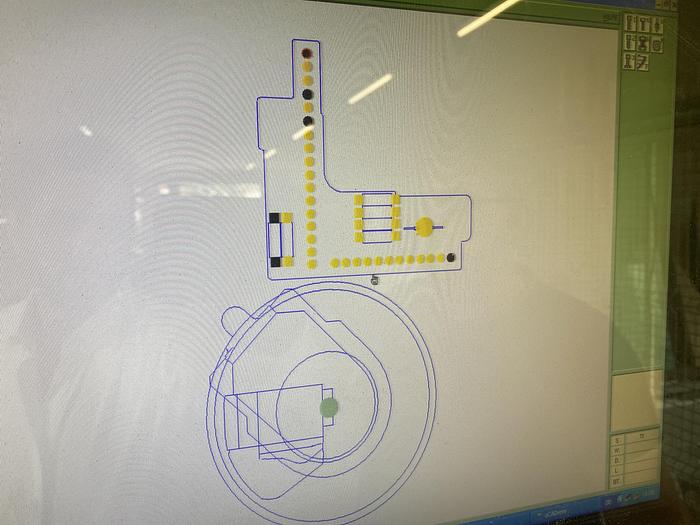

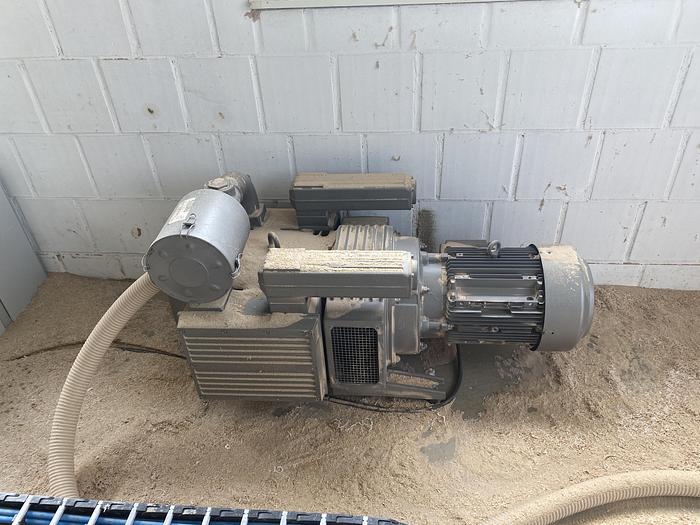

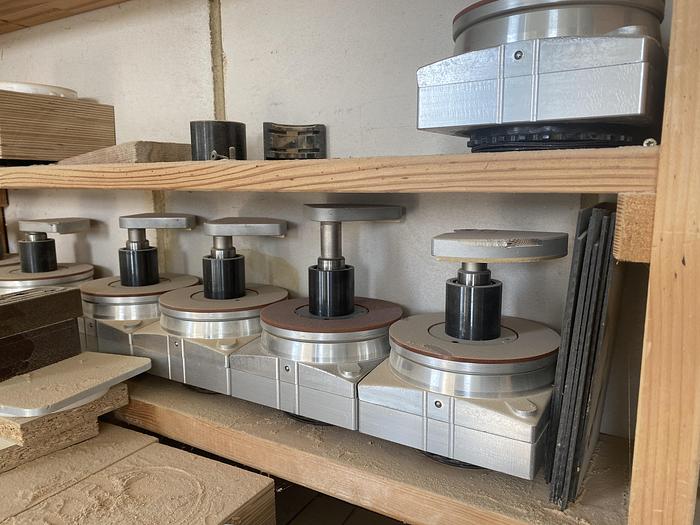

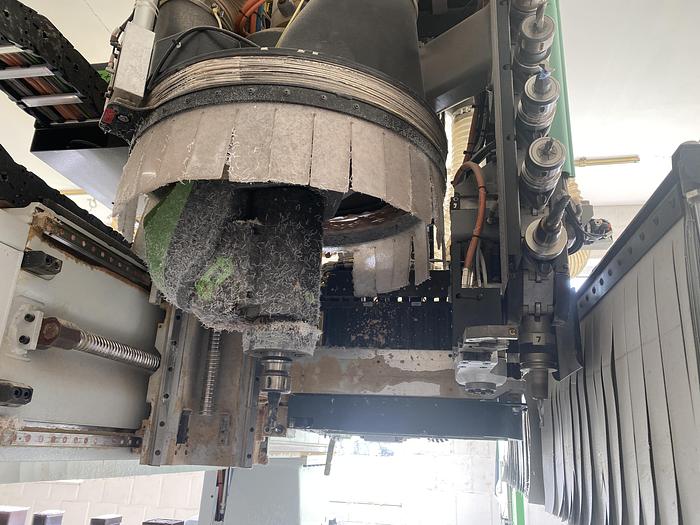

XP600 Numerical Control with Biesse Works Software Biesse Works office version software Working field in X axis 6200 mm Working field in Y axis 1570 mm Working range in Z axis 275 mm N ° 2 work fields Bar worktop 10 bars electronically adjustable by C.N. for the suction cup support N ° 8 pneumatic bakelite bars for lifting the panel N ° 4 suction cups electronically adjustable by C.N. for each bar with vacuum seal for panel fixing during processing N ° 1 vertical electrospindle 5 interpolated axes, with automatic tool change, motor KW 18, cooling a liquid, Hsk type cones N ° 1 vertical electrospindle with C Vector axis, with automatic tool change, liquid cooling, type cones Hsk Automatic tool change system with 33 positions - positioned on the rear of the machine Automatic tool change system with 5 positions - positioned on the operating head Front protection and safety system with carpets Perimeter protection grids Chip evacuation system with motorized belt Automatic lubrication system Air conditioning system for cooling and cleaning the machine control Vacuum pump mc / h 250 Machine weight: +/- 7200 Kg
