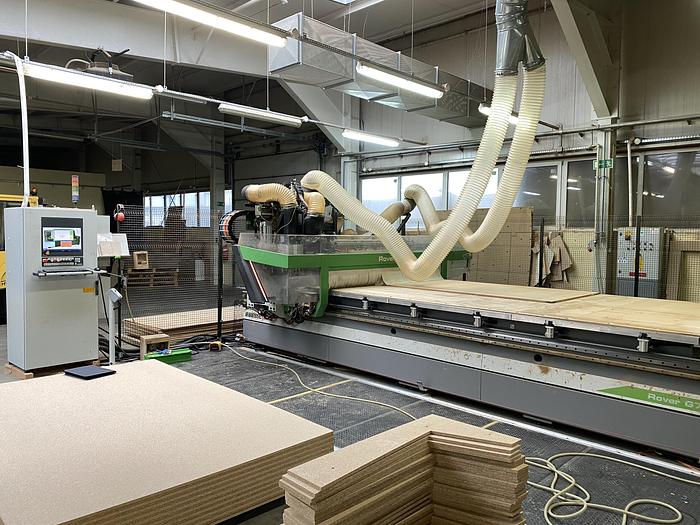

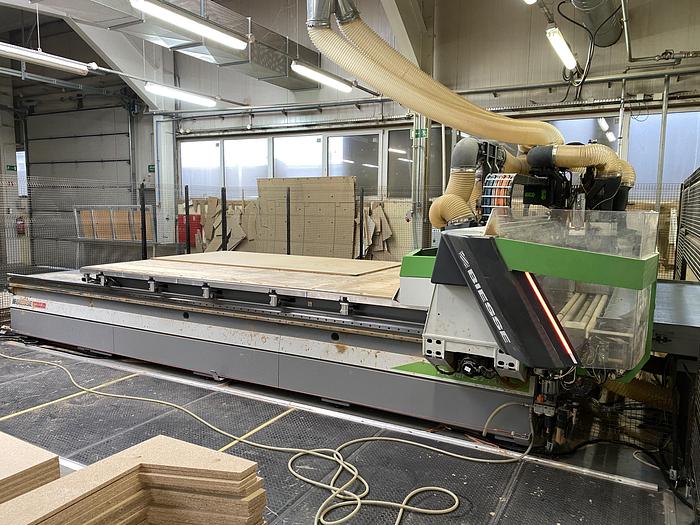

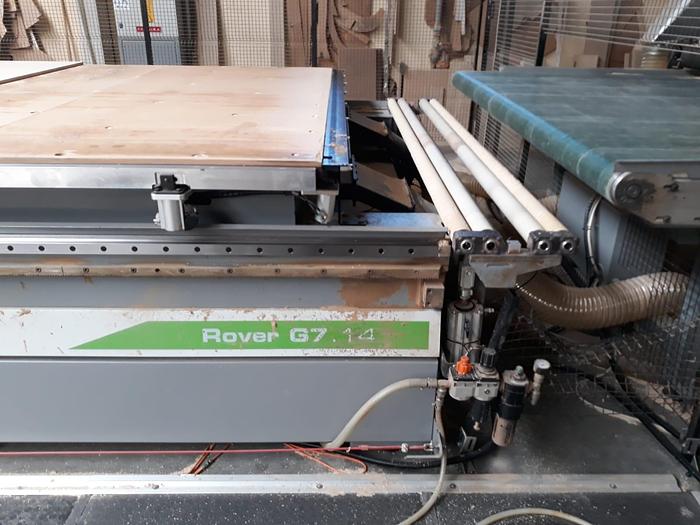

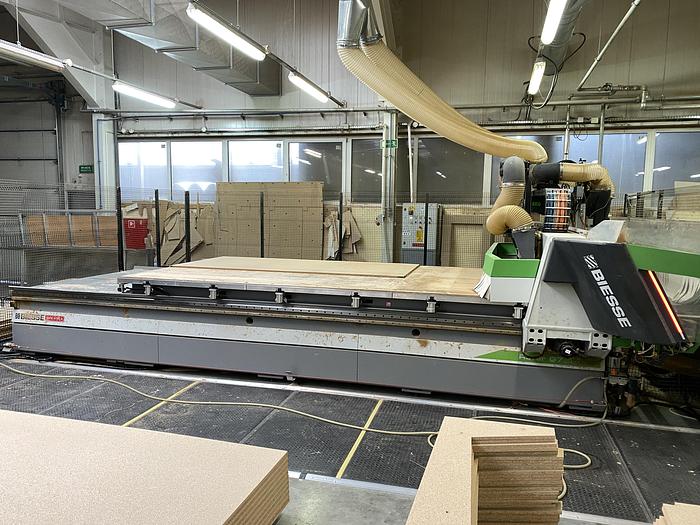

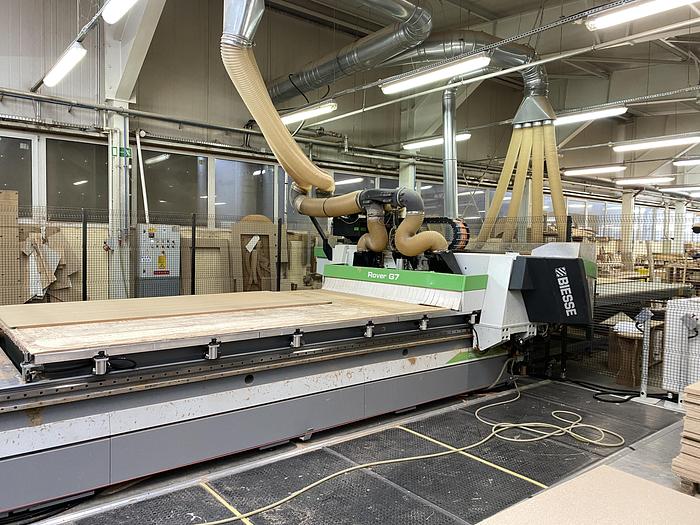

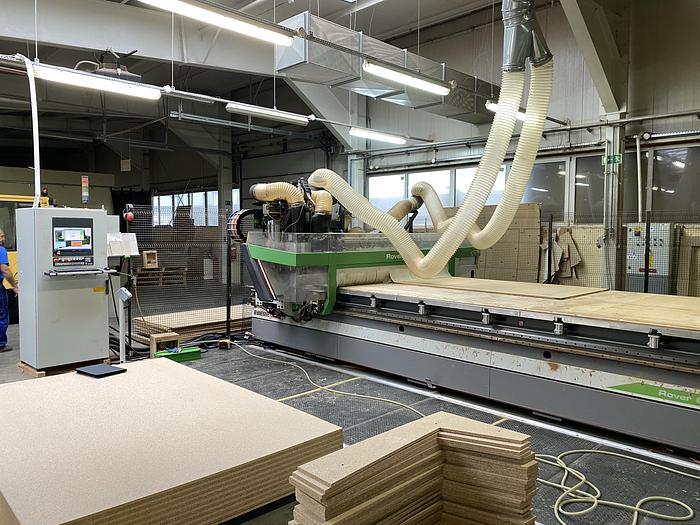

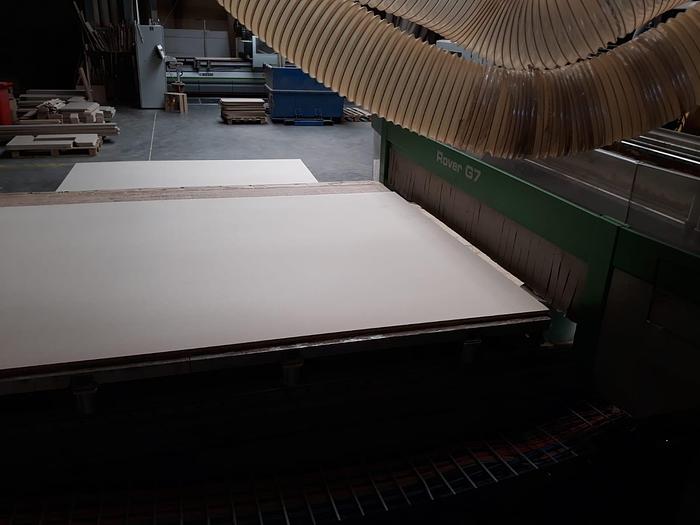

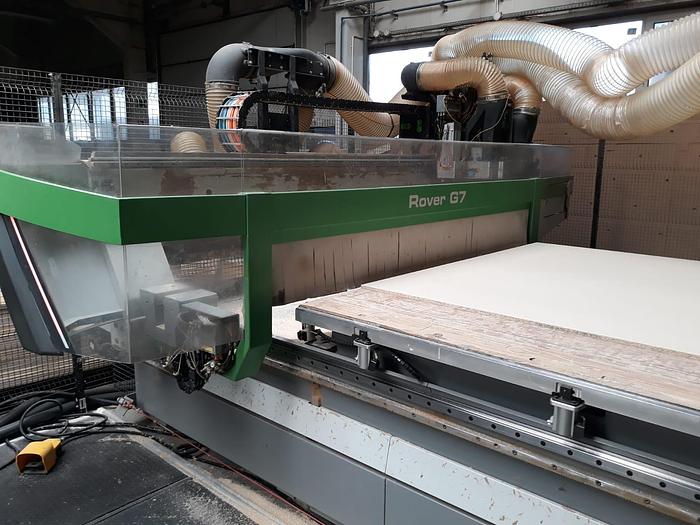

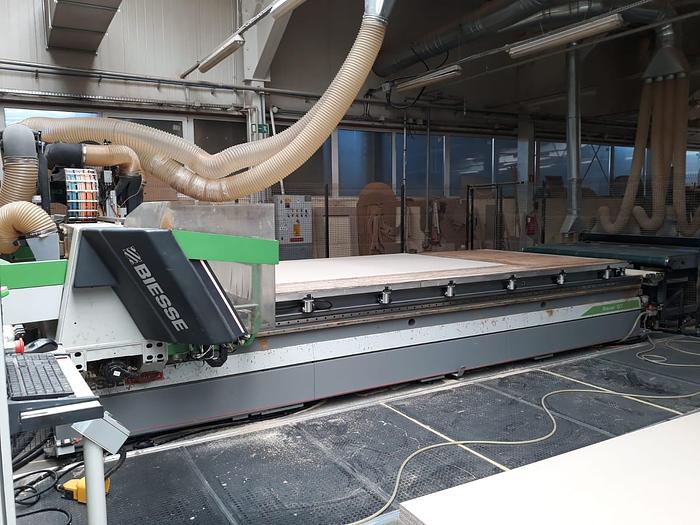

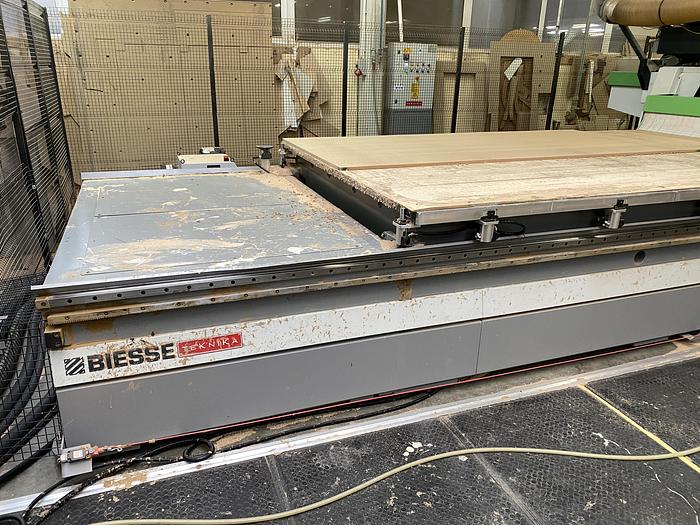

2011 Biesse Rover G 714

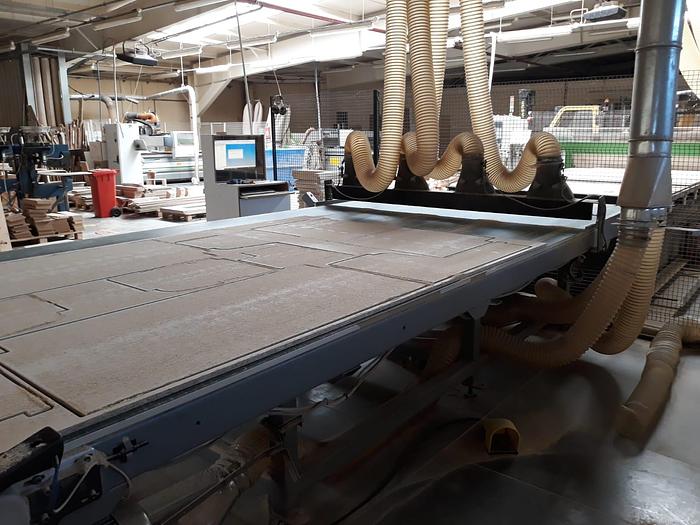

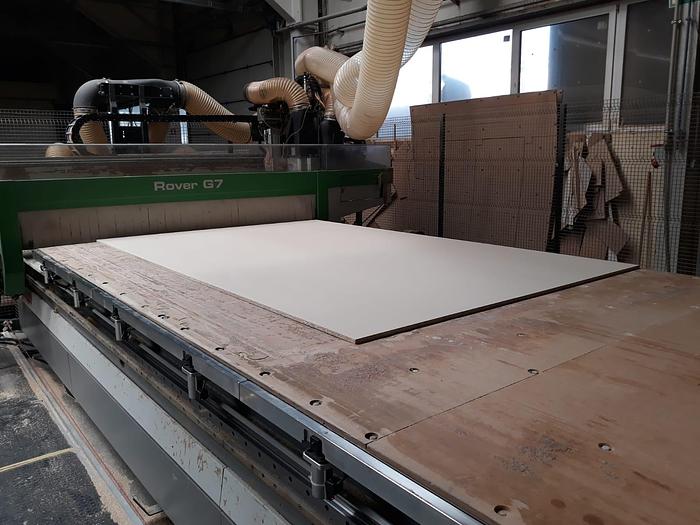

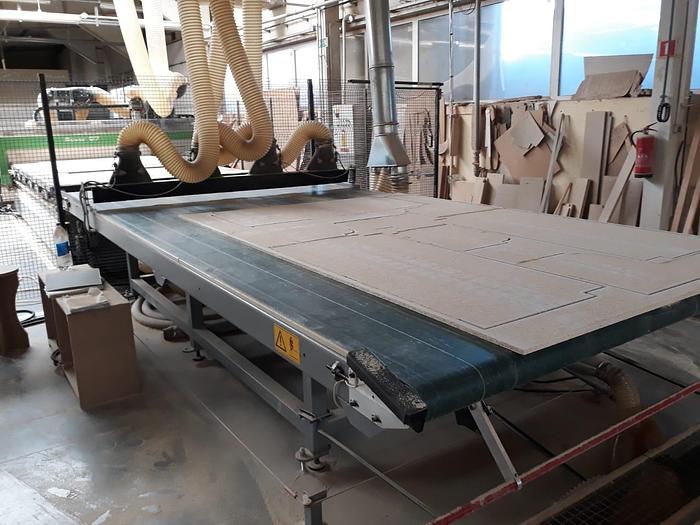

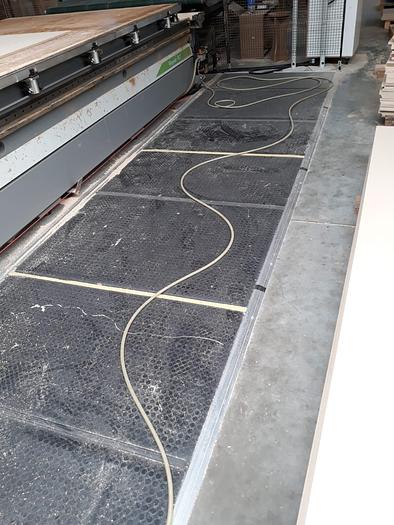

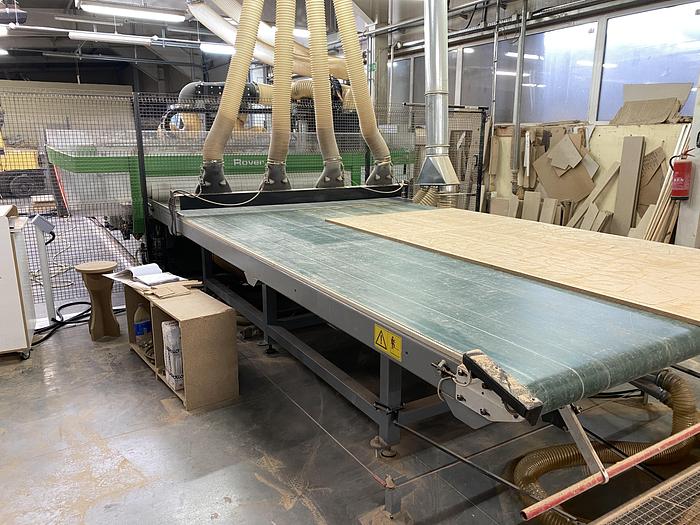

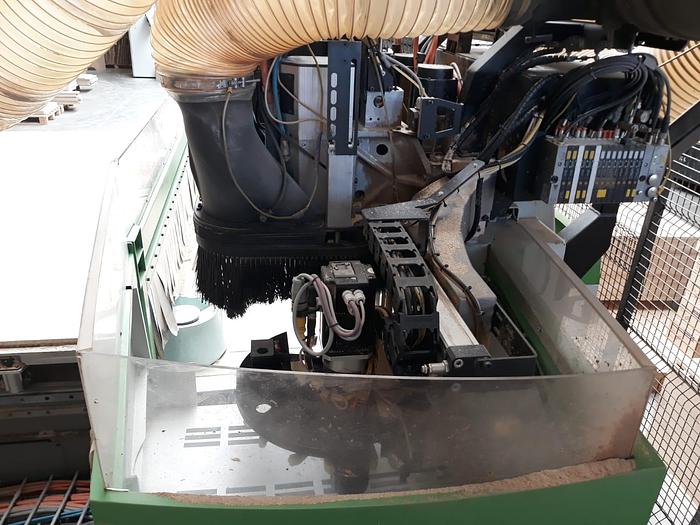

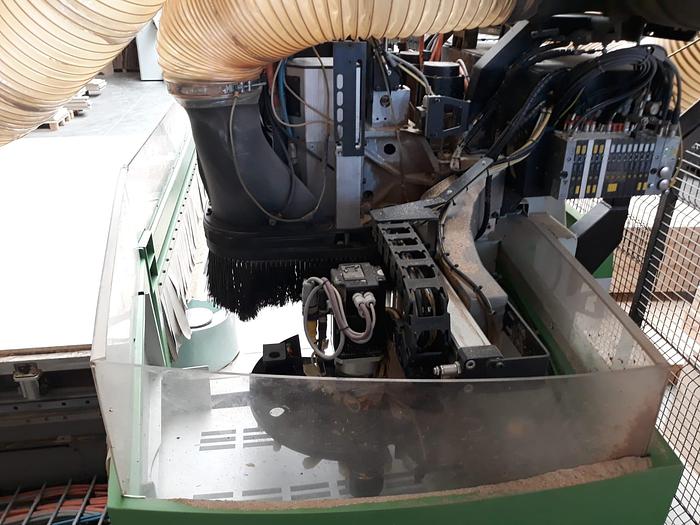

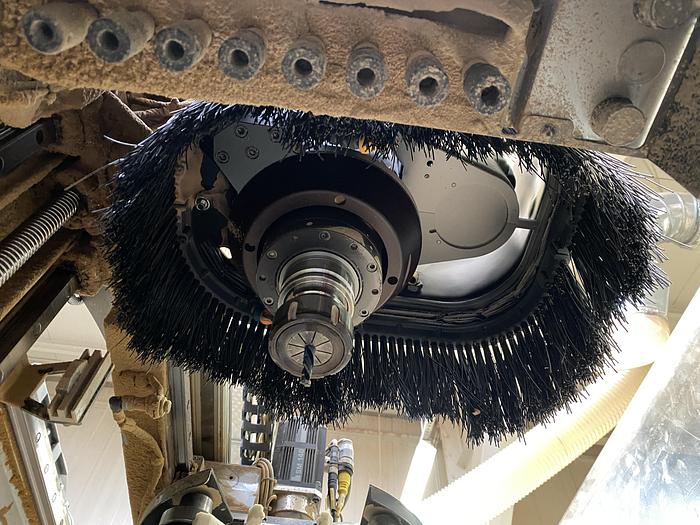

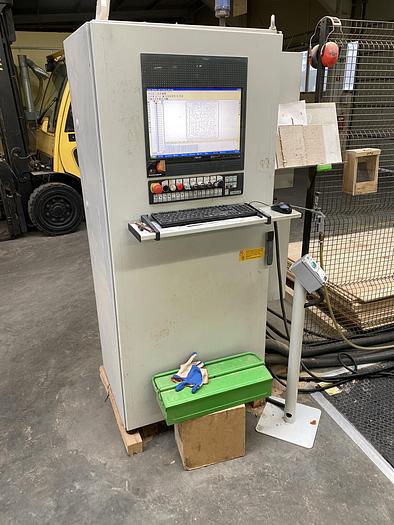

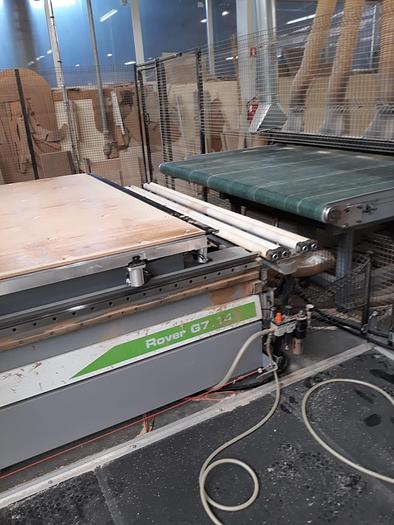

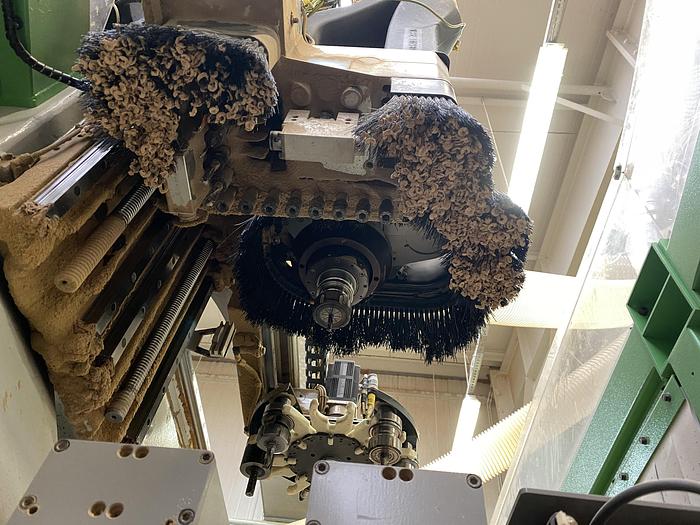

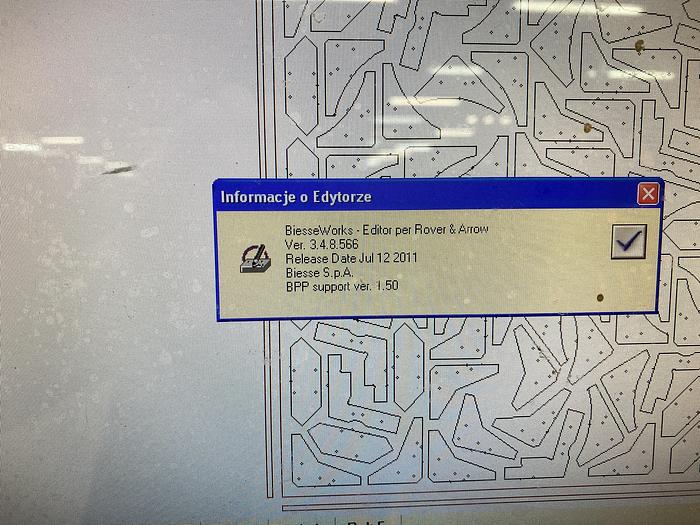

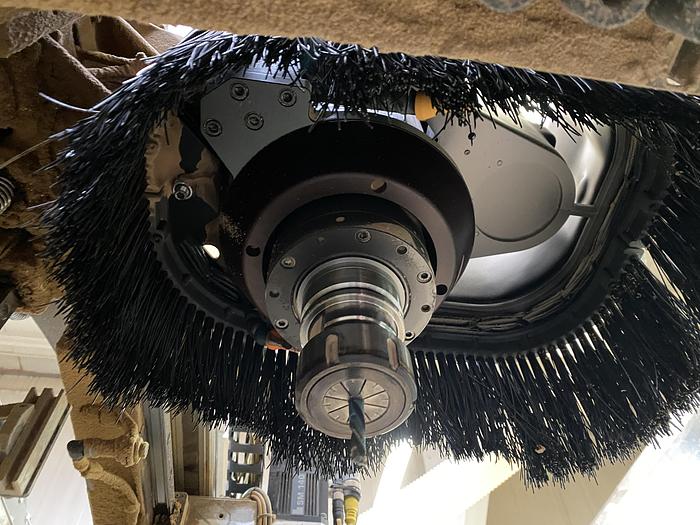

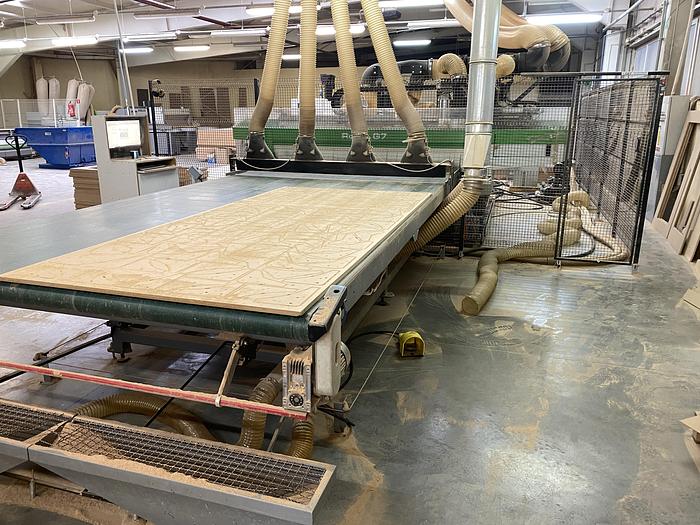

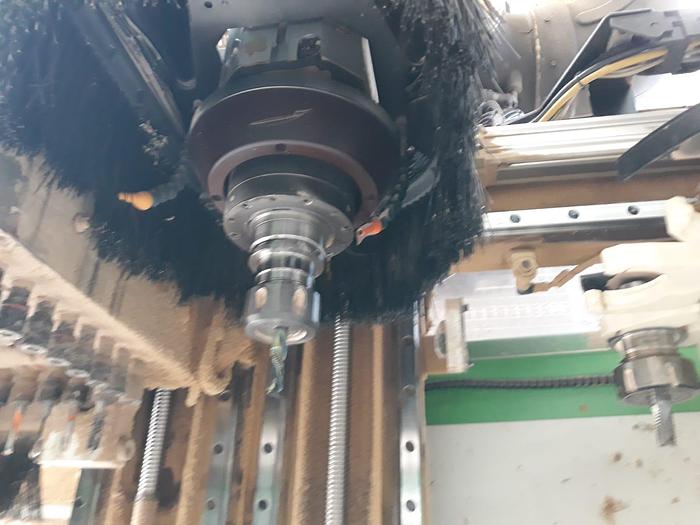

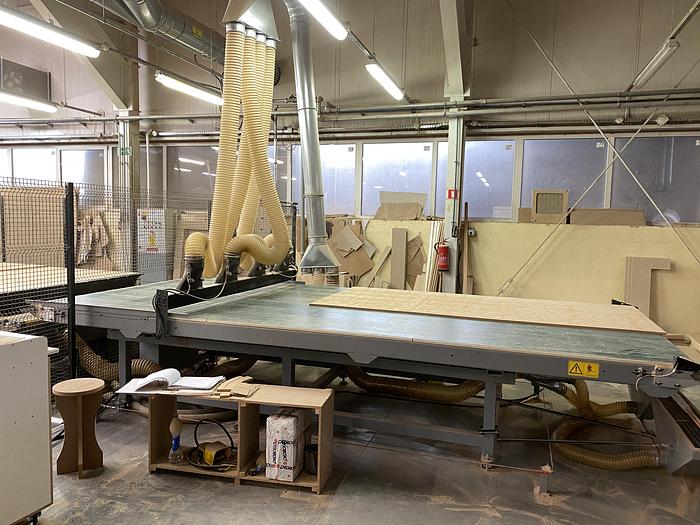

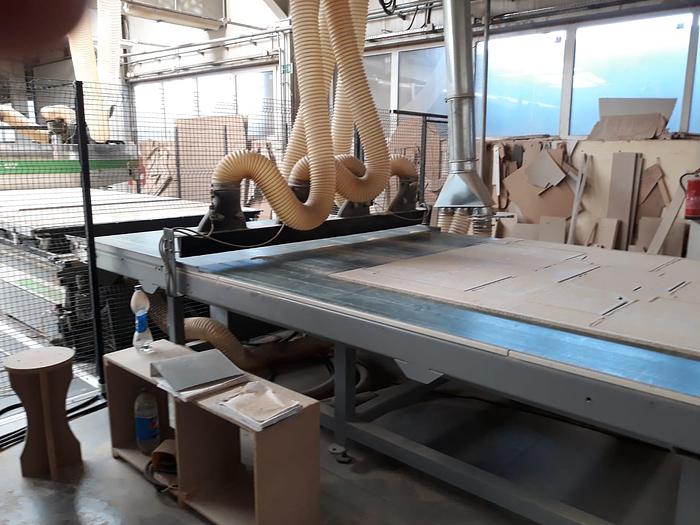

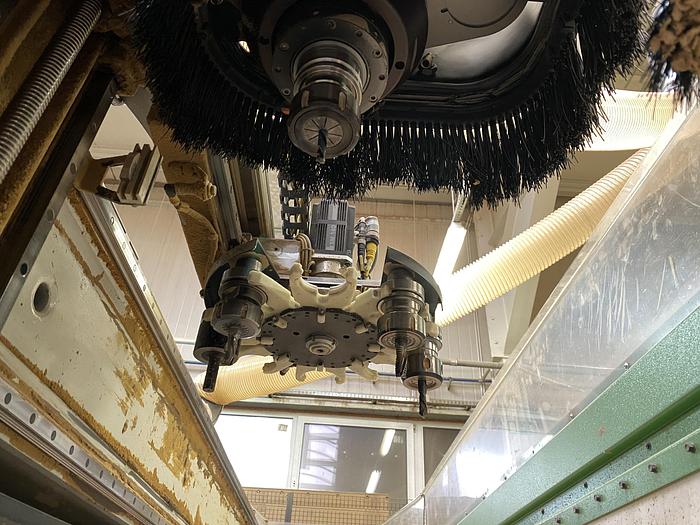

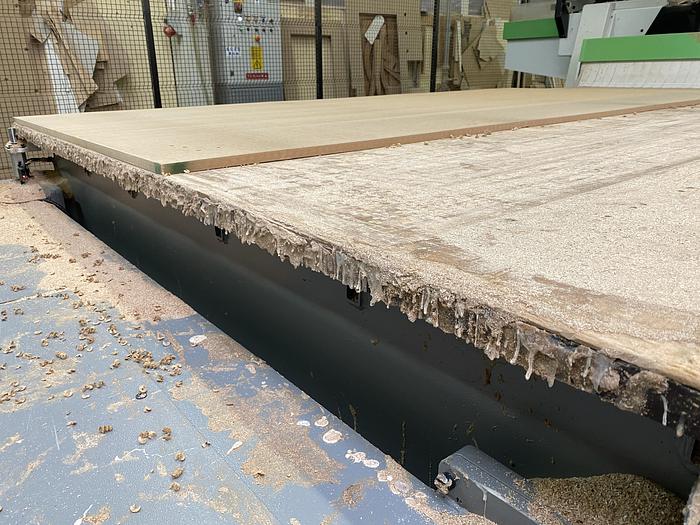

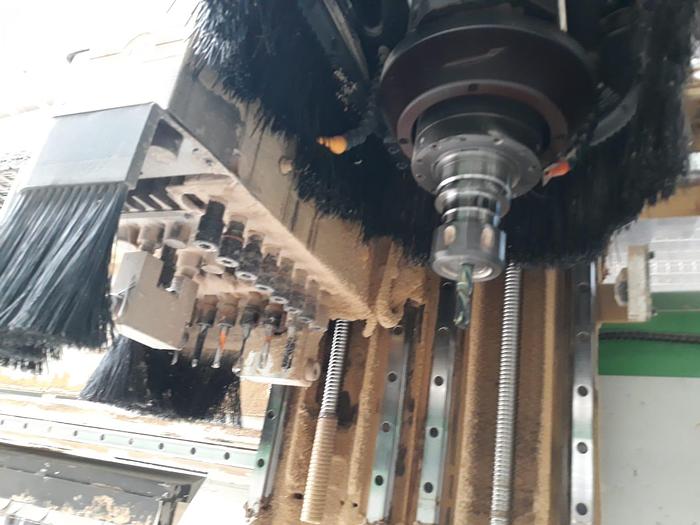

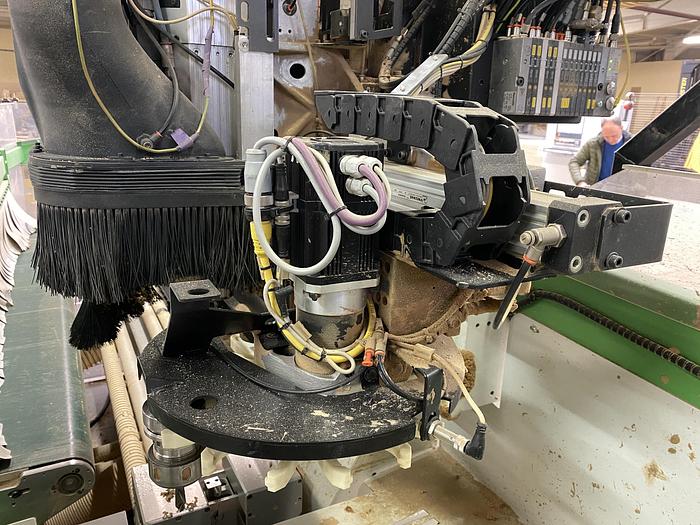

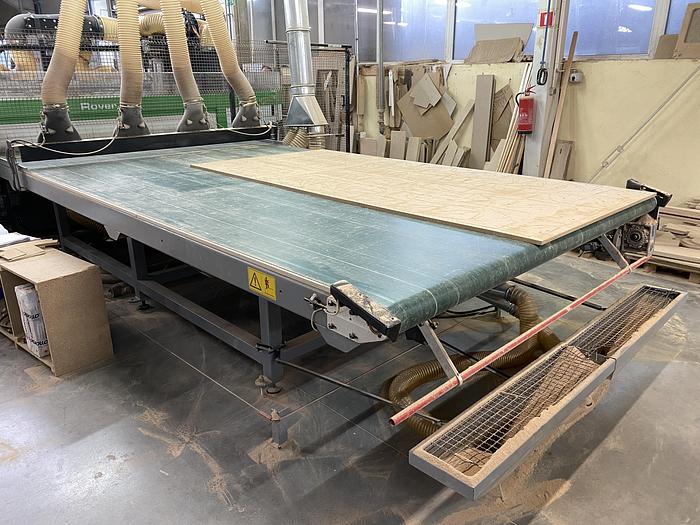

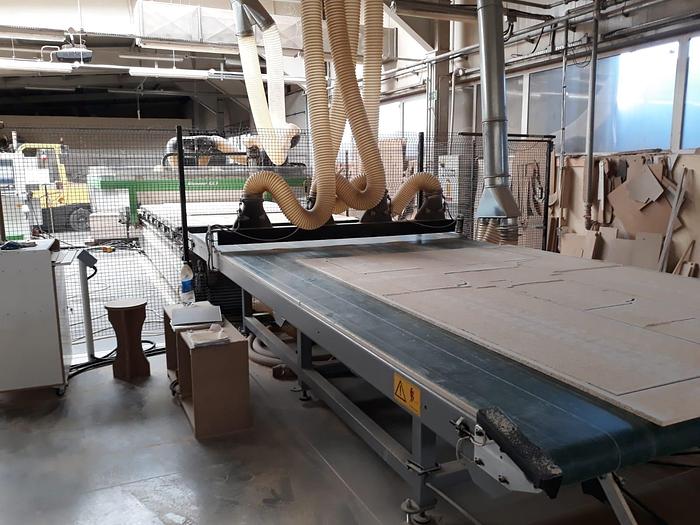

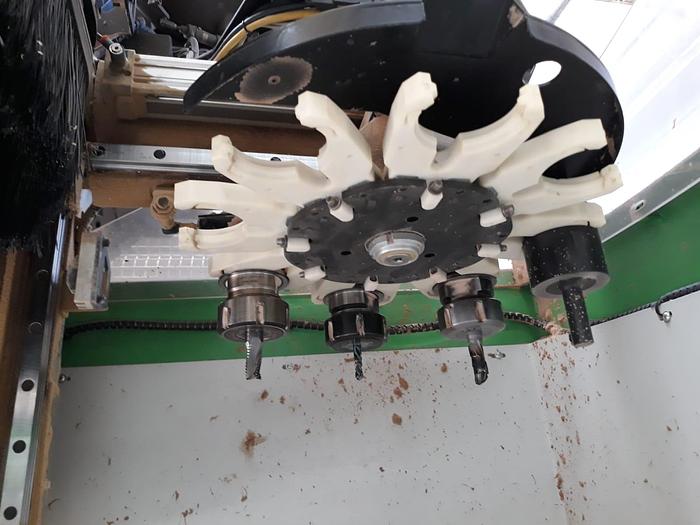

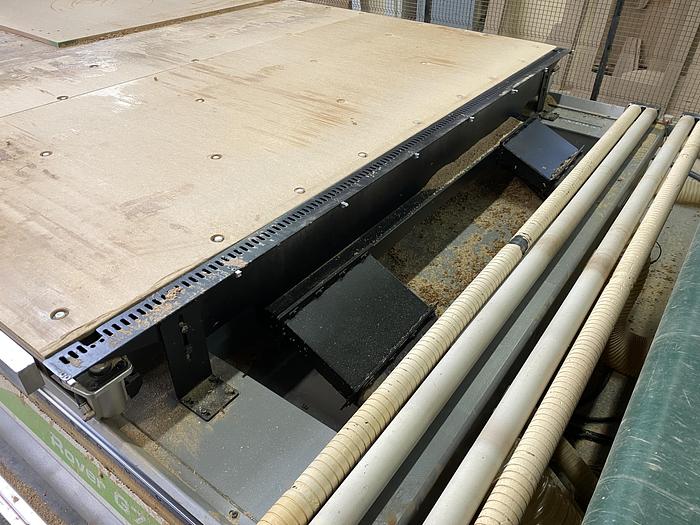

Numerical Control BH660 with Biesse Works Advanced Software - Biesse Nest. With WRT technology (Windows Real time) for increase the performance of Windows XP. Biesse Works Advanced with office version and machine version (with 2 hardware keys) Possibility to import files from CAD in DXF and CID 3 formats (possibility to execute DXF or CID 3 directly) Working field in X axis 4300 mm - X axis travel 5365 mm Working field in Y axis 2205 mm - Y axis travel 2749 mm Working stroke in Z axis 160 mm - Z axis stroke 385 mm FT nesting full floor worktop - division of the worktop into 52 independent zones directly from C.N. N. 6 rear stops + N. 6 front stops + N. 2 right side stops + N. 2 left side stops Blower for cleaning the work surface Automatic loading system with side lifting table 180 ° rotating system to work the panel on both surfaces Automatic labeling machine Automatic printing and application system of adhesive labels N ° 1 4-axis vertical electrospindle (C-Vektor axis), with automatic tool change, Iso 30 cones, 12 KW (16.1 HP), RPM up to 24000 from C.N. , includes flange for aggregates use - inverters up to 18 KW Blade unit integrated in the drilling head on X axis - diam. 120 mm Automatic tool change system with 8 positions - positioned on the machine operating head Automatic tool change system with 21 positions - positioned on the rear of the machine with chain BH 40 L boring head with independent spindles arranged as follows: - N ° 17 vertical in X axis - N ° 12 vertical in Y axis - N ° 6 horizontal in X axis - N ° 4 horizontal in Y axis Automatic unloading system with motorized belt Front protection and safety system with carpets and perimeter nets Automatic lubrication system Air conditioning system for the electrical panel N ° 3 vacuum pumps of 300 m3 \ h
