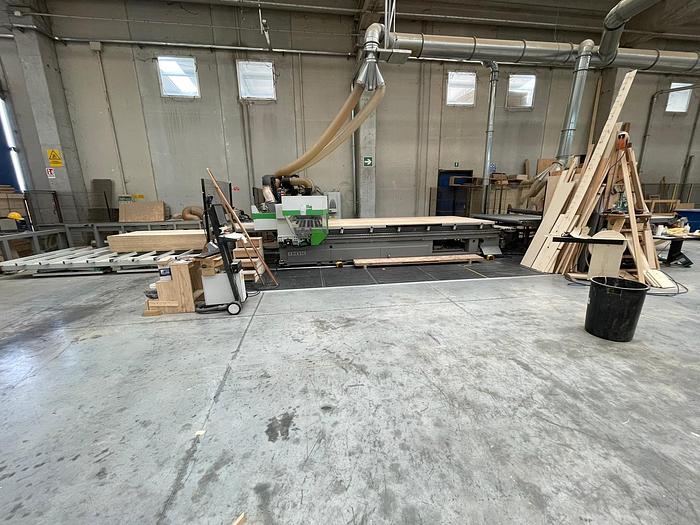

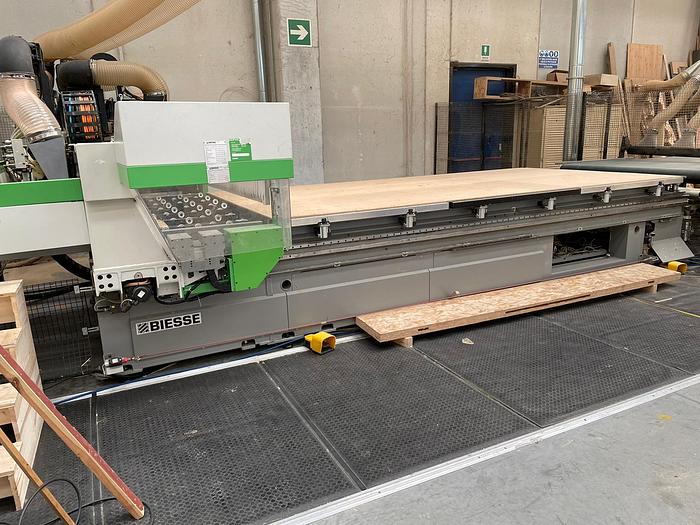

2015 Biesse Rover A 2243 G FT

Specifications

ManufacturerBiesse
ModelRover A 2243 G FT
Year2015
Stock NumberMMF001

Description

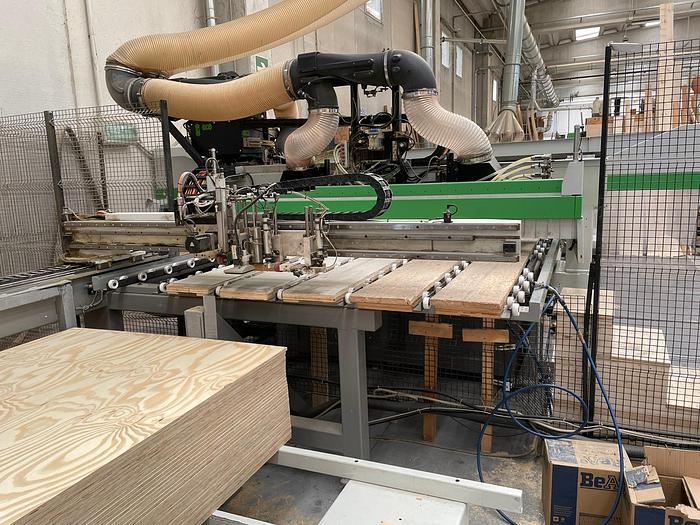

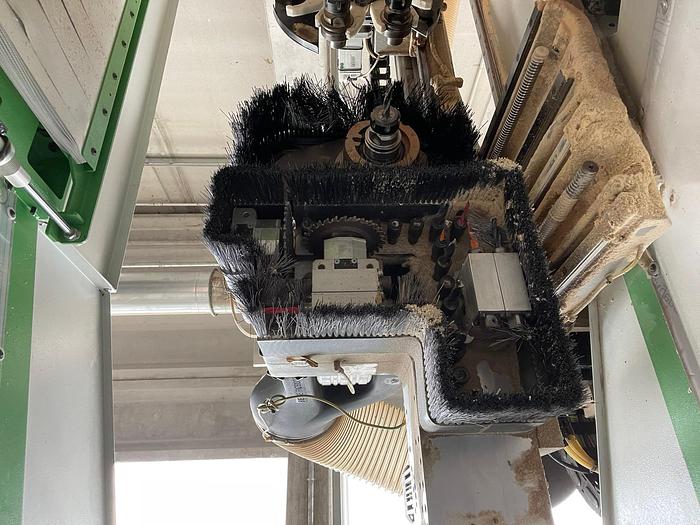

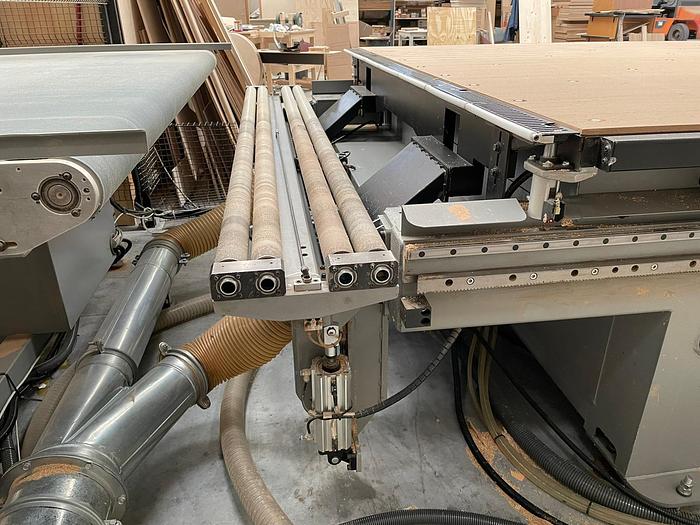

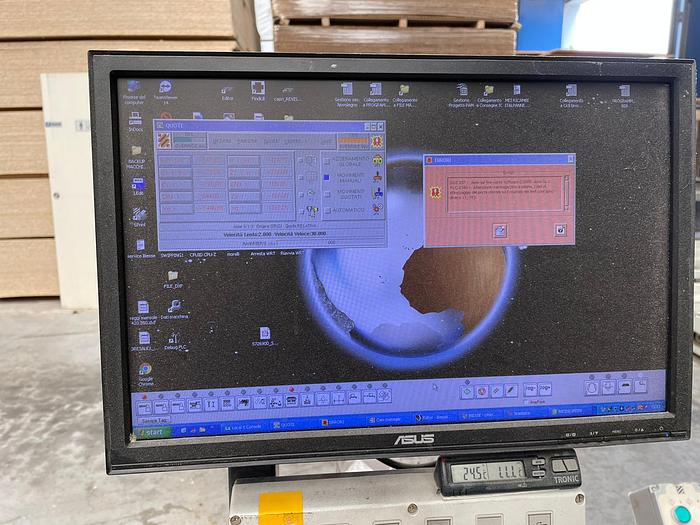

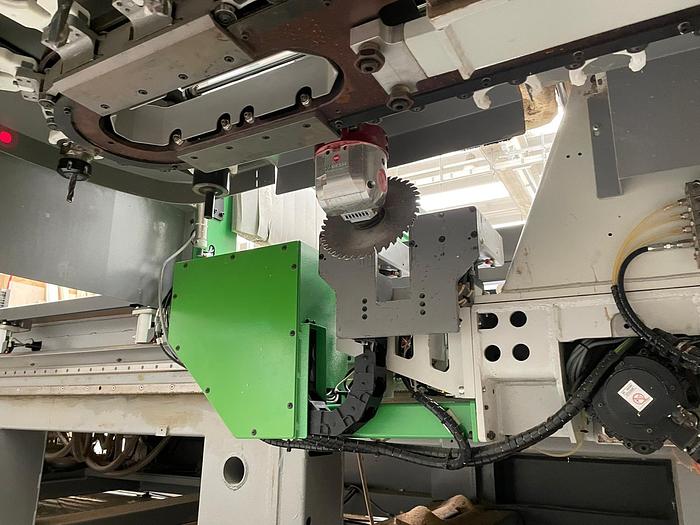

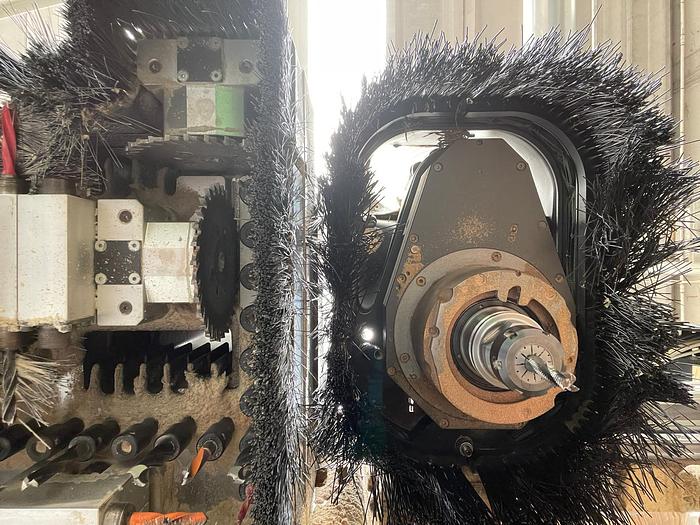

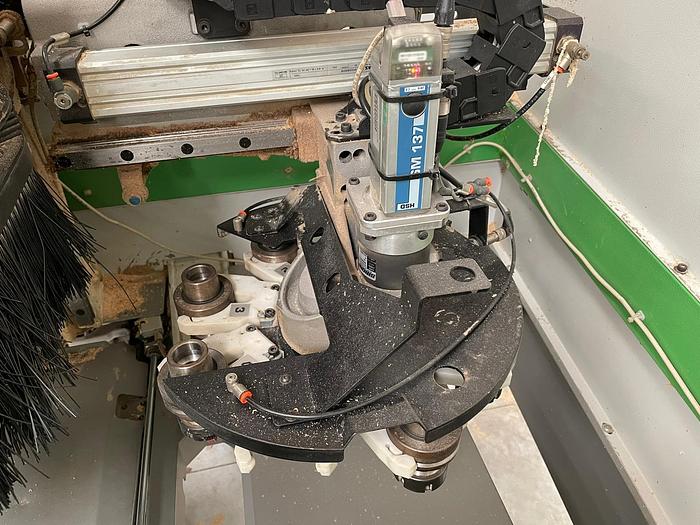

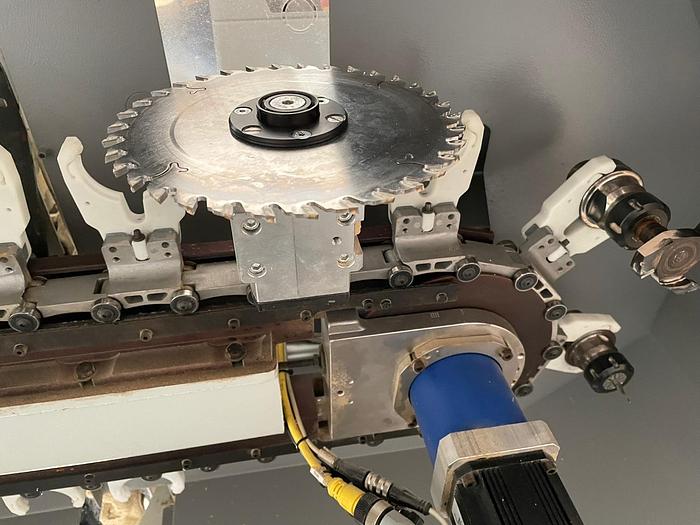

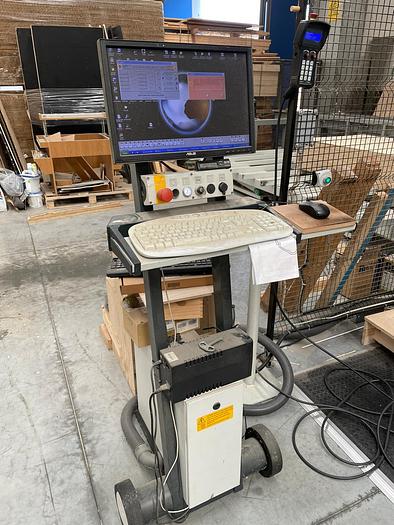

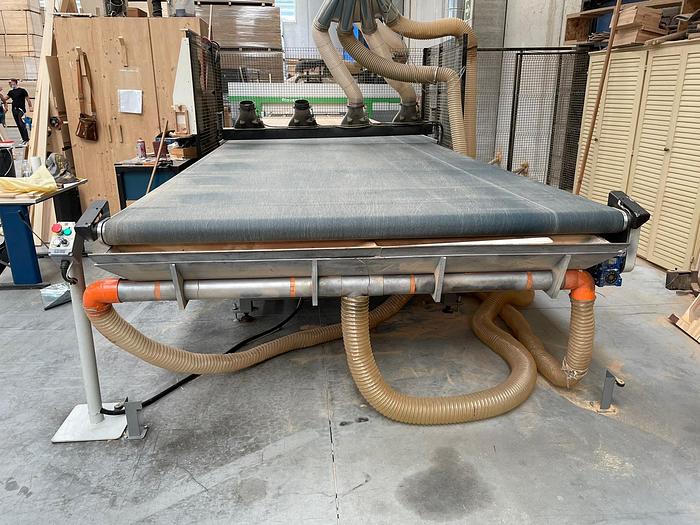

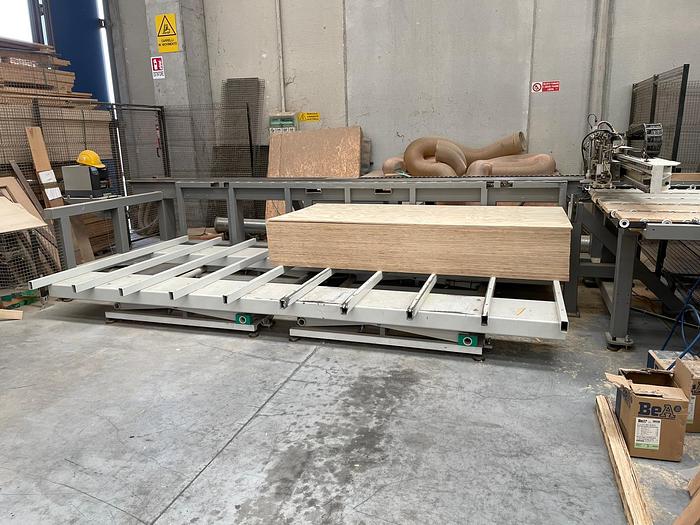

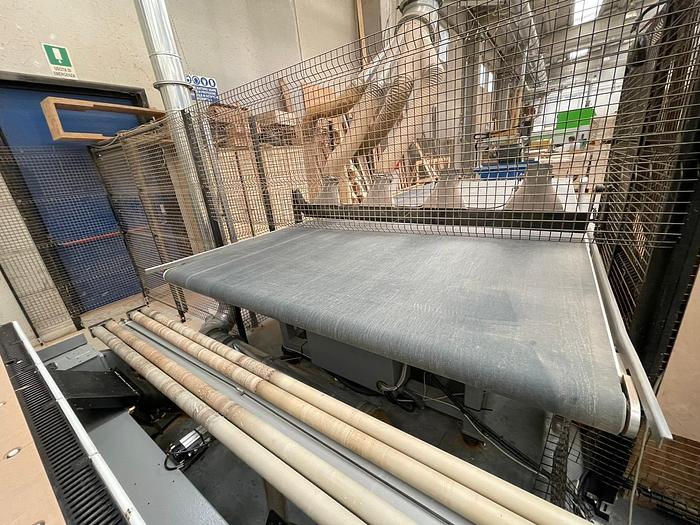

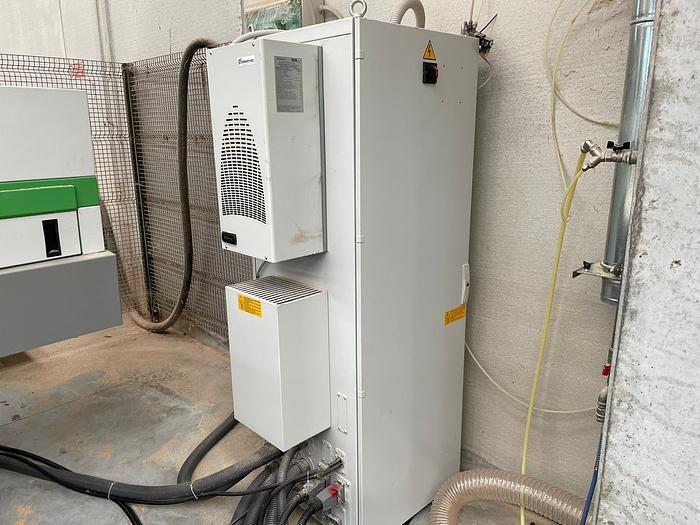

Numerical Control NC 1000 Software Biesse Works Working field in X axis 4300 mm Working field in Y axis 2205 mm FT nesting full plane worktable Automatic loading system with side lifting table Automatic labeling machine for barcode printing Automatic printing and application system of adhesive labels N ° 1 vertical electrospindle, with automatic tool change, HSK F63 Blade unit integrated in the drilling head on X axis - diam. 120 mm Blade unit integrated in the drilling head on Y axis - diam. 120 mm Automatic tool change system with 8 positions - positioned on the machine operating head Automatic tool change system with 21 positions - positioned on the rear of the machine with chain BH 20 boring head with independent spindles arranged as follows: - N ° 8 vertical in X axis - N ° 8 vertical in Y axis - N ° 4 horizontal in X axis - N ° 4 horizontal in Y axis Automatic unloading system with motorized belt Front protection and safety system with carpets and perimeter nets Automatic lubrication system Air conditioning system for the electrical panel Vacuum pumps
