2016 Biesse Rover S 1536 FT

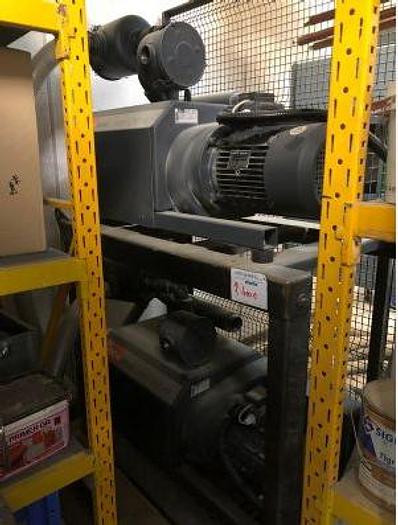

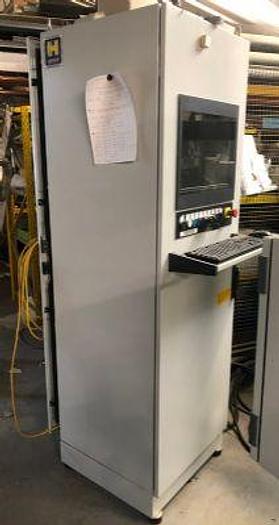

Numerical Control NC 1000 Software Biesse Works Working field in X axis 3765 mm Working field in Y axis 1560 mm Working stroke in Z axis 105 mm FT nesting full plane worktable N ° 1 vertical electro-spindle with automatic tool change, ISO 30., with flange for aggregates and predisposition for Vektor C axis Arrangement for automatic loading system with suction cups for panel handling Automatic unloading system with pusher positioned on the operating head Blade unit integrated in the drilling head on X axis - diam. 120 mm Automatic tool change system with 16 positions - positioned on the rear of the machine with chain BH 18 boring head with independent spindles arranged as follows: - N ° 7 vertical in X axis - N ° 5 vertical in Y axis - N ° 4 horizontal in X axis - N ° 2 horizontal in Y axis Protection system with perimeter nets Automatic lubrication system Air conditioning system for the electrical panel N ° 1 vacuum pumps of 250 m3 \ h
