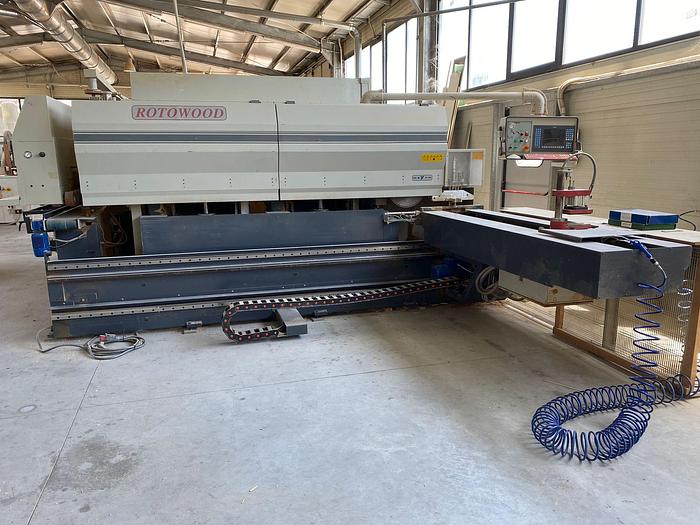

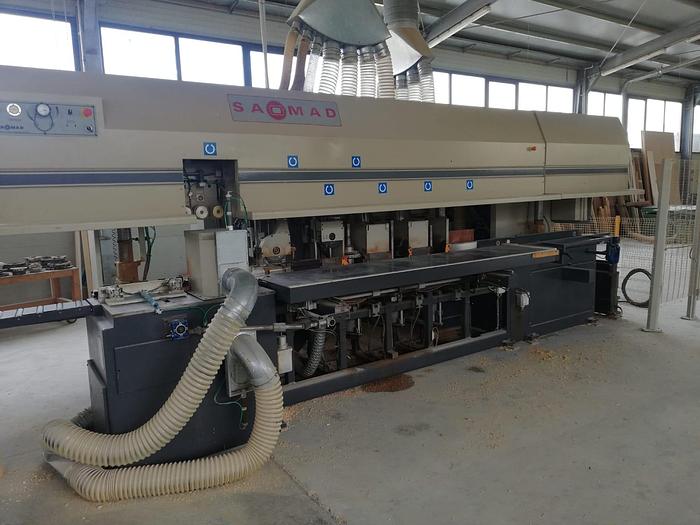

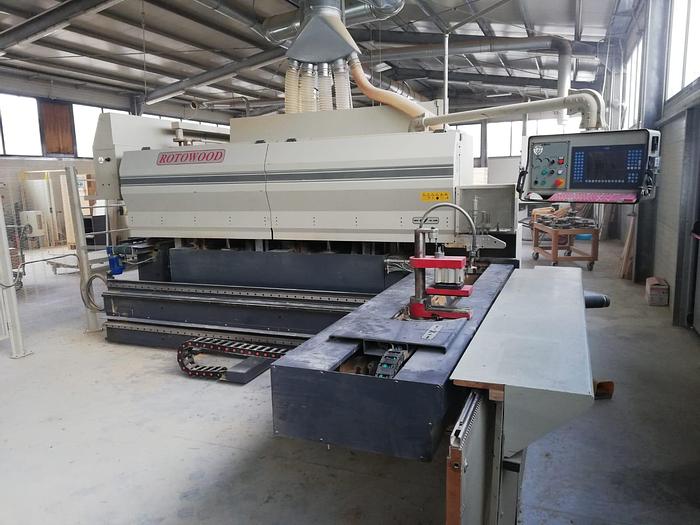

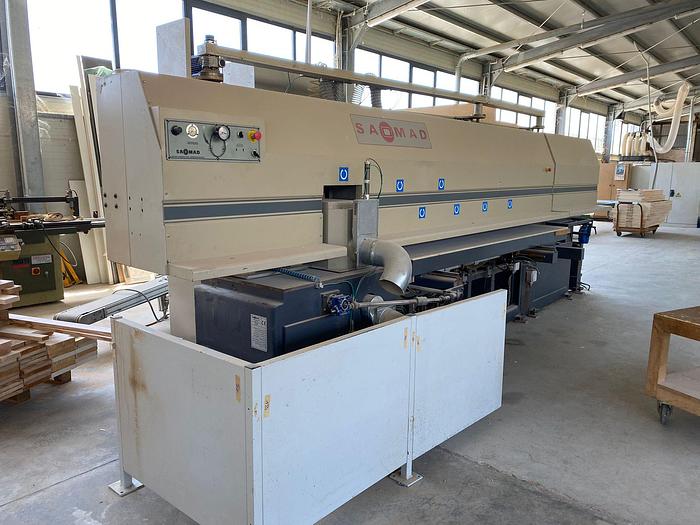

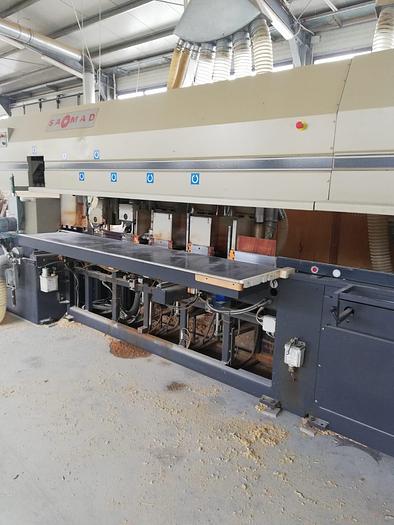

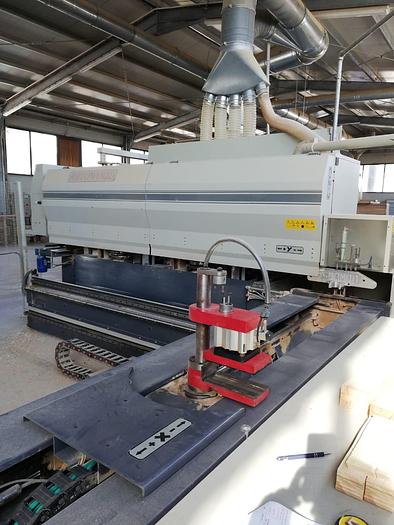

2002 Saomad Rotowood 100

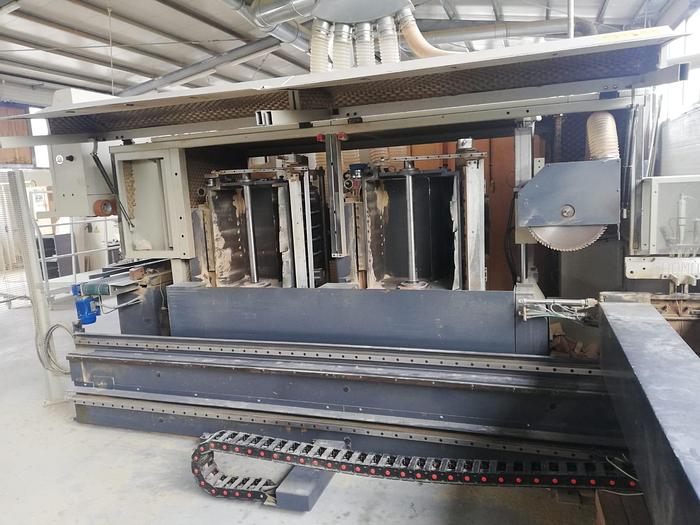

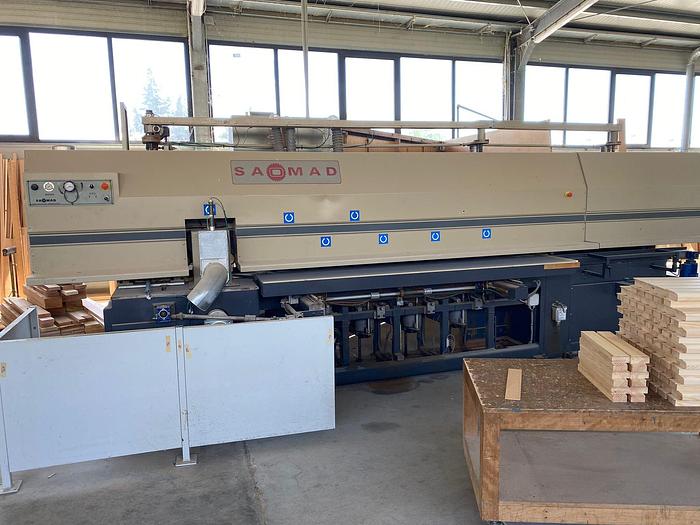

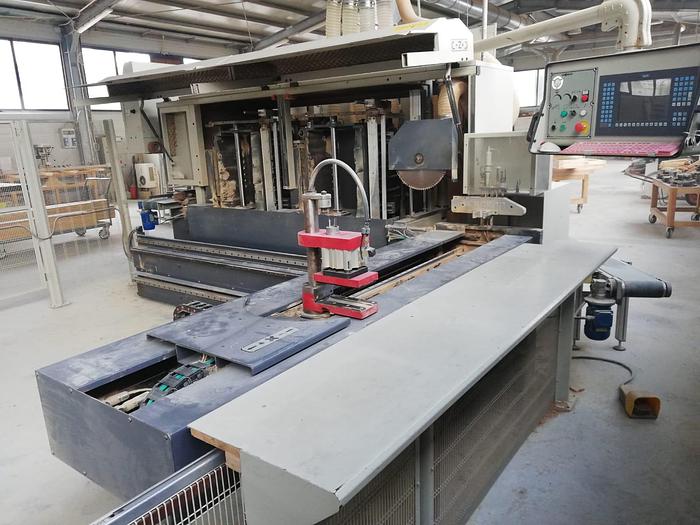

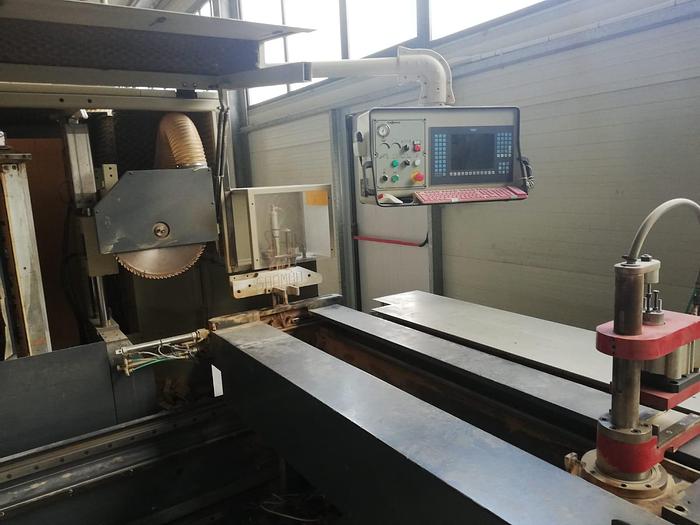

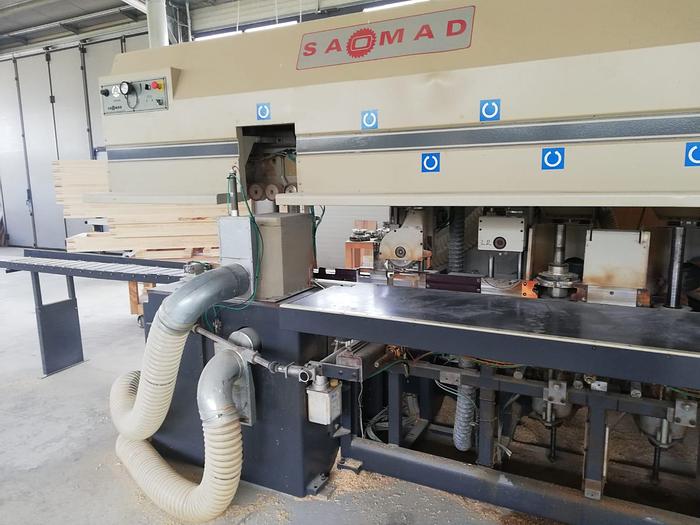

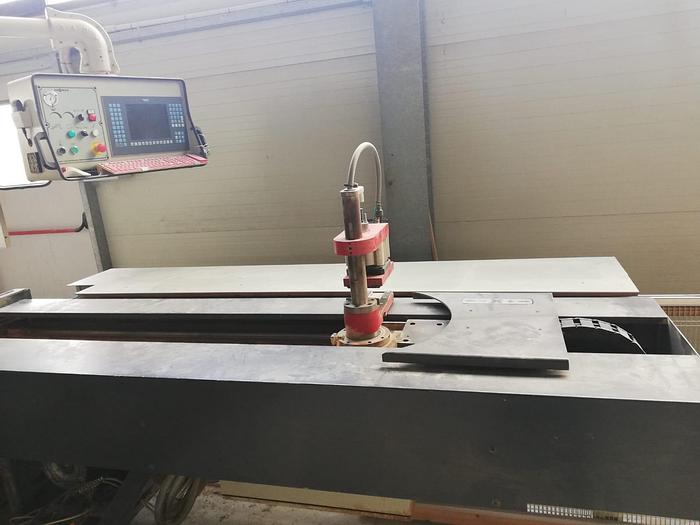

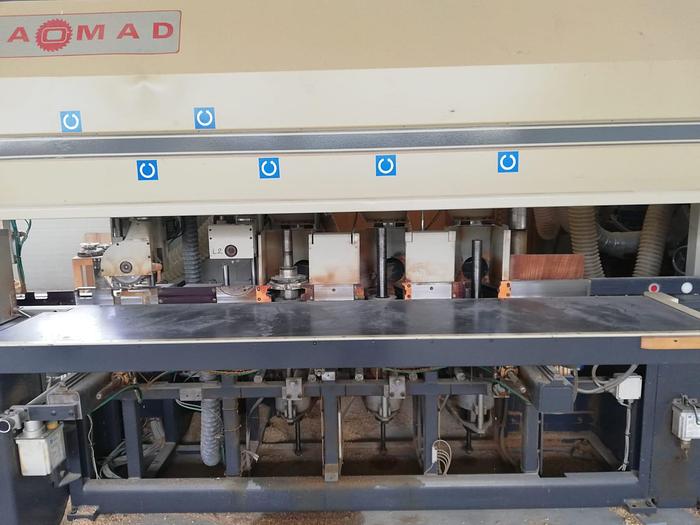

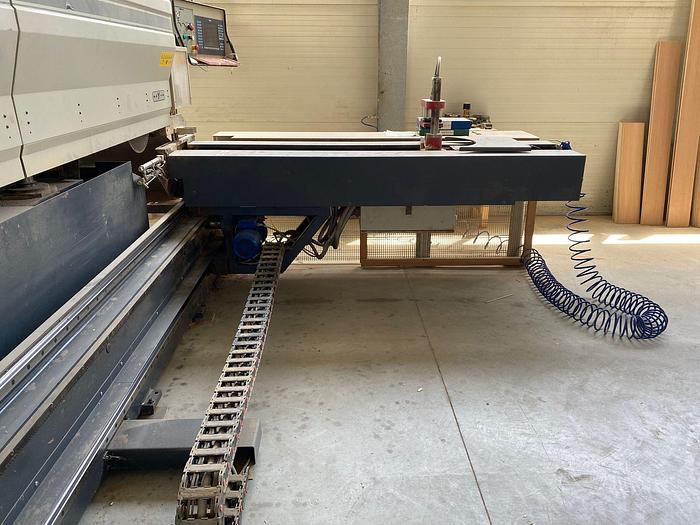

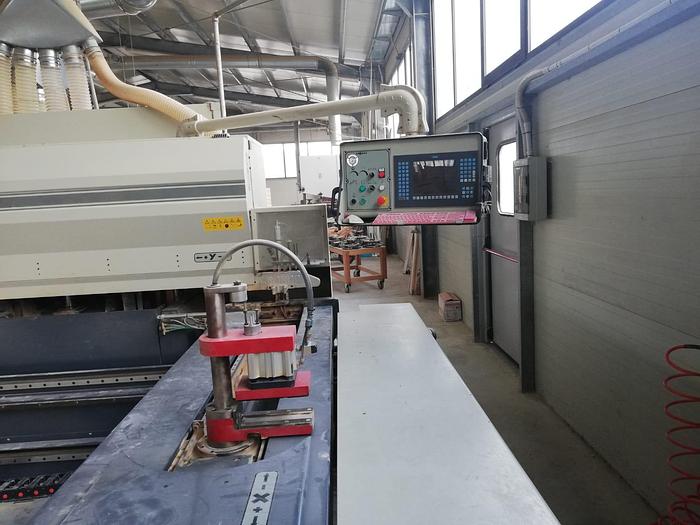

• Maximum workpiece length approx. 3200 mm • Length of tenoning table 2520 mm • Stroke of the tenoning table approx. 400 mm • Width of the clamping device for tenoning 200 mm • Possibility of making inclined tenons • Consists of: • MACHINE 1: Tenoning machine 1 - Saw group: blade diameter 400 mm, motor 3 KW-3000 rpm, maximum cutting height 125 mm, displacement horizontal of the saw blade 150 mm 2 - Vertical milling unit: useful spindle length approx. 600 mm, maximum diameter of the milling tools approx. 350 mm, automatic positioning, motor 11 KW-3200 rpm 3 - Vertical milling unit: useful spindle length approx. 600 mm, maximum diameter of the milling tools approx. 350 mm, automatic positioning, motor 11 KW-3200 rpm • MACHINE 2: Profiling machine 4 - Vertical milling unit: useful spindle length approx. 320 mm, maximum diameter of the milling tools approx. 240 mm, automatic horizontal positioning, motor 9 KW-6000 rpm 5 - Vertical milling unit: useful spindle length approx. 320 mm, maximum diameter of the milling tools approx. 240 mm, automatic positioning, motor 9 KW-6000 rpm 6 - Vertical milling unit: useful spindle length approx. 320 mm, maximum diameter of the milling tools approx. 240 mm, automatic positioning, motor 9 KW-6000 rpm 7 - Upper horizontal cutter group 8 - Glazing bead recovery saw unit: motor 2.20 KW-6000 rpm, blade diameter 200 mm, horizontal adjustment 50 mm 9 - Left vertical cutter unit: useful spindle length approx. 320 mm, automatic positioning • MOTORIZED OUTPUT TRANSFER ROLLS AND GRAVITY WHEELS • Several milling tools are included
