2013 Koch Sprint 200

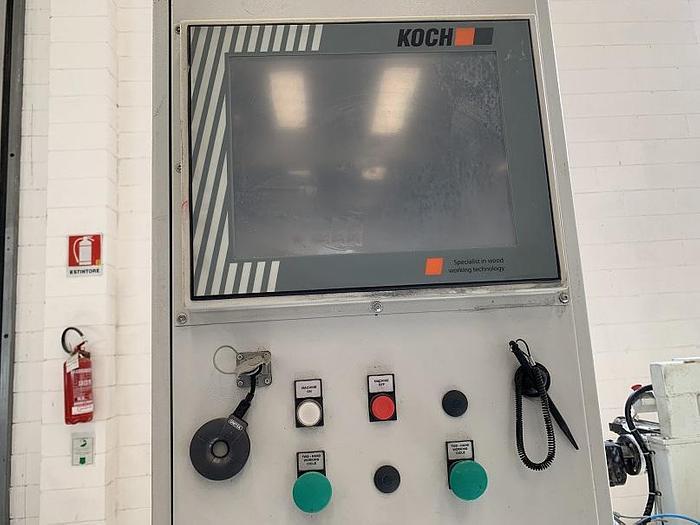

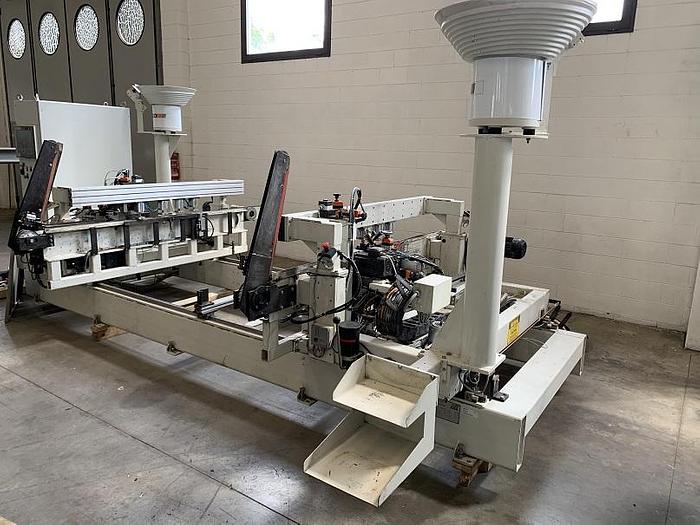

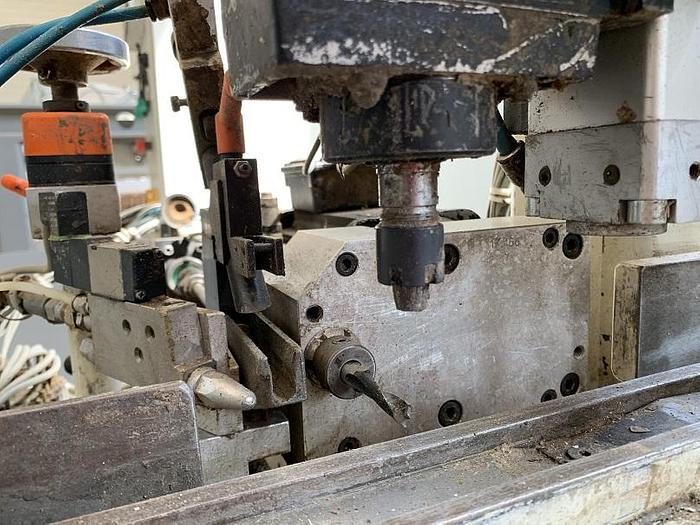

• Control system to regulate the operation of the machine - PC with keyboard and mouse - Monitor - System touch screen • PTP drilling machine inserting gluing machine • Machine working dimensions: 2500 x 800 x 40 mm • Horizontal drilling unit: - Drill assembly: 10 mm - Reamer motor: 0,9 Kw - Speed: 7200 RPM - Max depth drilling: 28 mm - Total length of the drill bit: 70 mm - Anchor diameter: 8 mm • Gluing unit: - Electronic dosing of the quantity of glue controlled by NC - Sensor glue • Unit of vertical drilling: - Drill assembly: 10 mm - Drilling motor: 0,9 Kw - Speed: 7000 - 16000 RPM - Depth drilling maximum: 30 mm - Total length of the drill bit: 70 mm • Dowel insertion unit: - Standard dimensions of the dowels: diameter 8x30-35 mm - Max dowel protrusion: 14 mm • N ° 1 unit for horizontal drilling and n ° 1 unit for gluing and inserting dowels • N ° 1 8L glue tank • N ° 1 8L water tank
