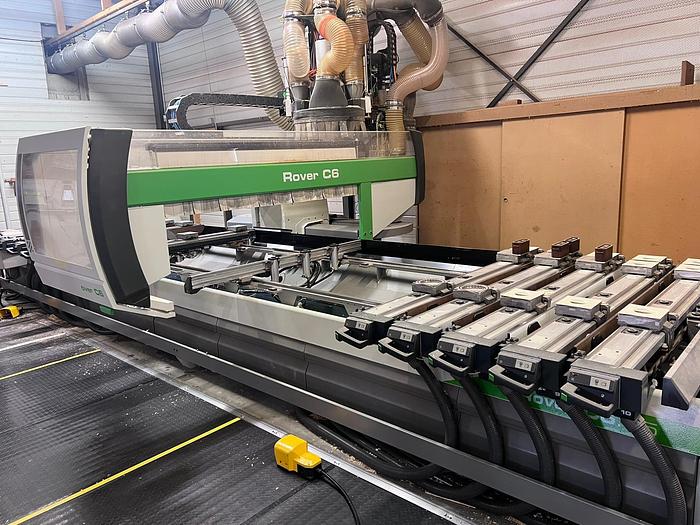

Biesse Rover C 6.65 conf. 3

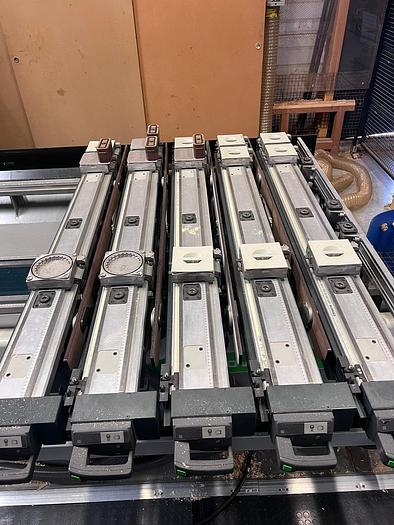

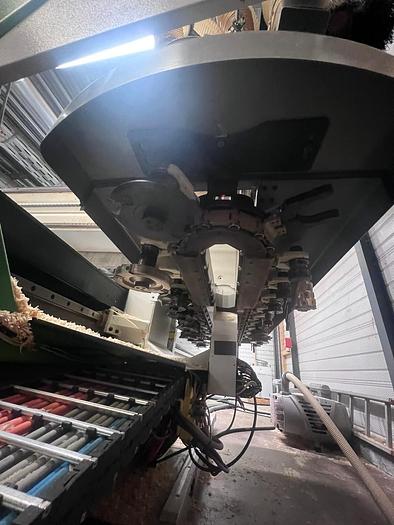

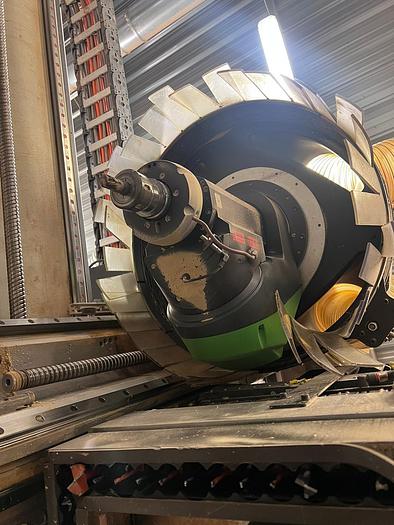

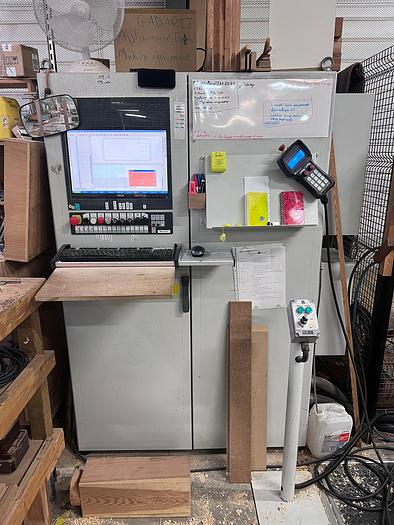

Biesse Works control Working range in X axis mm 6500 Working range in Y axis mm 1535 Working stroke in Z axis mm 345 Bar worktop No. 10 bars electronically adjustable by NC (EPS) N ° 8 pneumatic bakelite bars for lifting the panel N° 3 electronically adjustable suction cups by CN (EPS) for each bar with vacuum seal for fixing the panel during processing N° 1 vertical 5-axis electrospindle, with automatic tool changer, liquid-cooled motor, type cones Hsk N° 1 vertical 4-axis electrospindle (Vektor), with automatic tool changer Automatic chain tool change system with 22 positions - positioned on the back of the machine Boring head with vertical and horizontal spindles as follows: no. 13 vertical spindles in X no. 1 vertical spindles in Y n. 4 horizontal spindles in X n. 2 horizontal spindles in Y Front protection and safety system with carpets Perimeter protection grids Chip evacuation system with motorized belt Air conditioning system for cooling and cleaning the machine control Vacuum pump 250m3/h TECHNICAL DETAILS TO BE CHECK UPON ARRIVAL OF THE MACHINE IN THE WAREHOUSE
