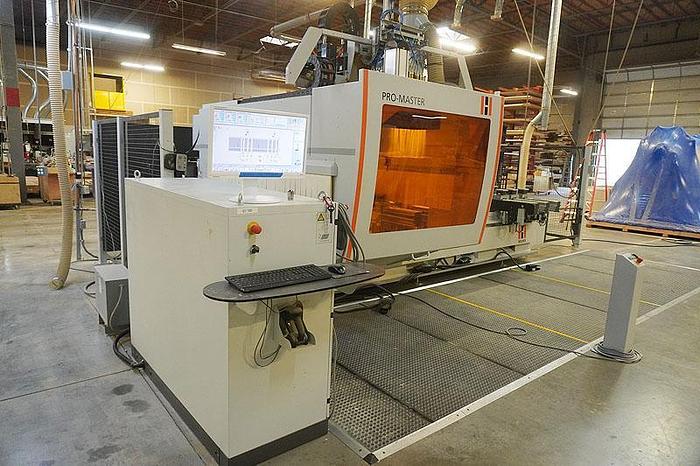

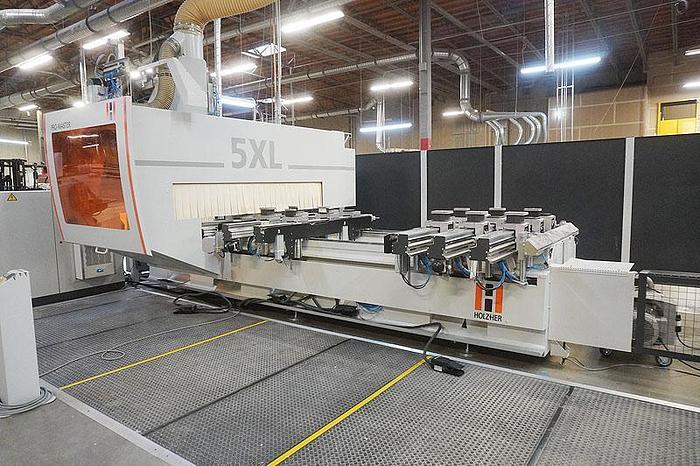

2017 Holzher Pro-Master 7225C 5 XL

Specifications

ManufacturerHolzher
ModelPro-Master 7225C 5 XL
Year2017
Stock NumberMLL894

Description

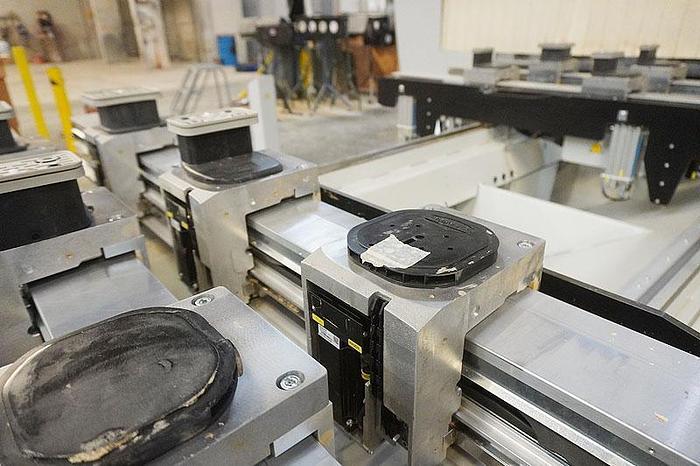

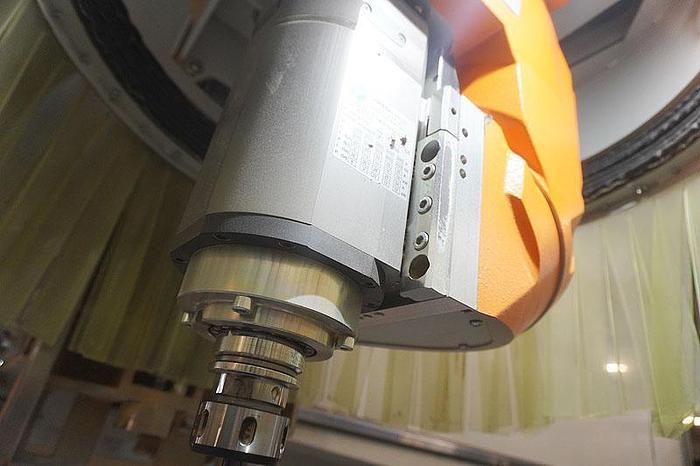

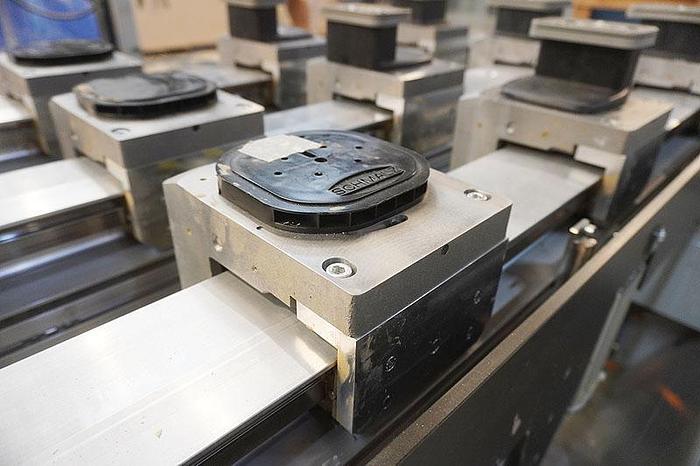

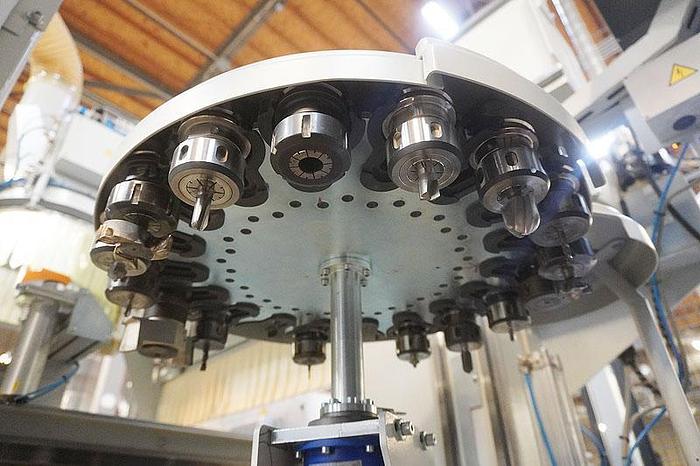

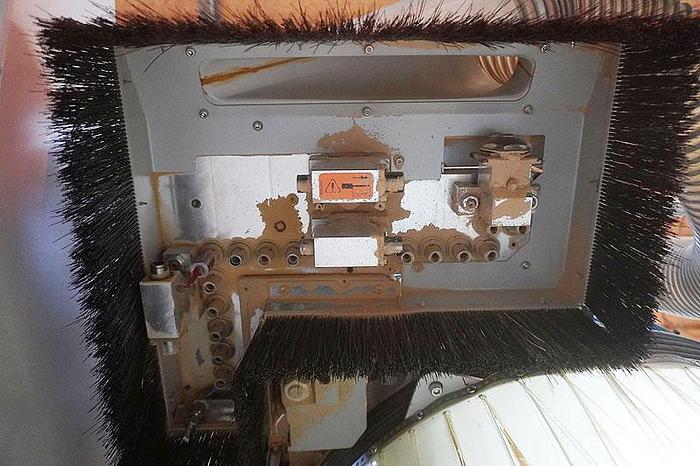

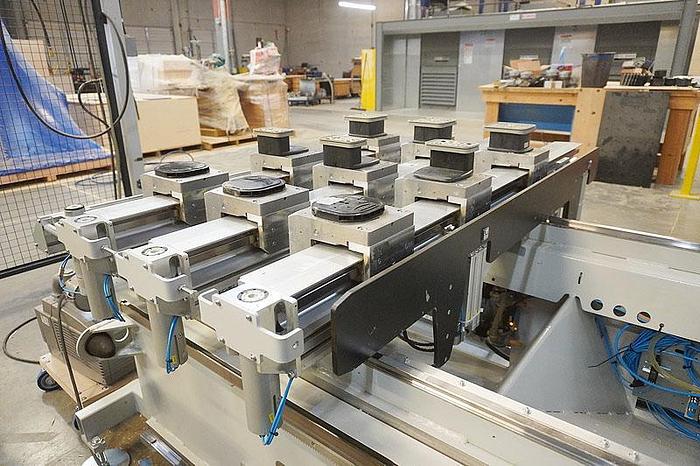

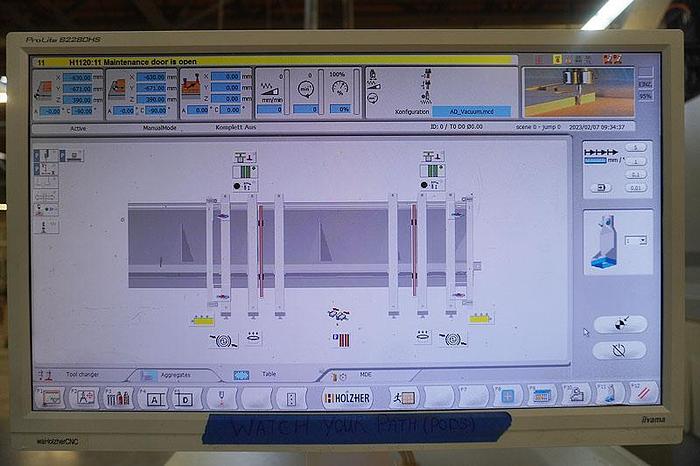

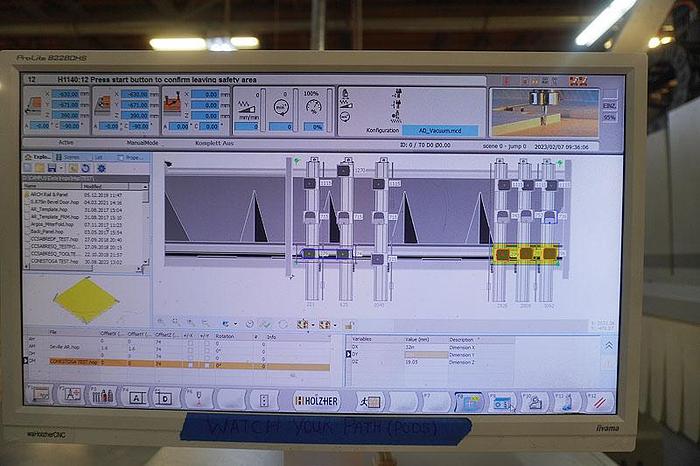

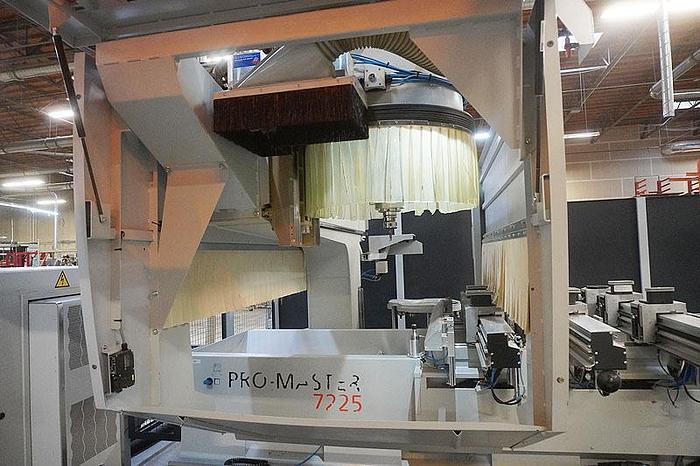

Direct Numerical Control NC HOPS with Campus software Working range in X axis mm 3400 Working field in Y axis mm 1600 Working field in Z mm 300 Worktop with 6 adjustable bars No. 3 suction cups each work bar for holding the piece being processed N° 1 5-axis electrospindle, 10 KW, with automatic tool change, Hsk F63 type cones Boring head with 24 spindles as follows: N. 12 Y-axis vertical spindles N. 6 X-axis vertical spindles N. 4 horizontal spindles Y axis N. 2 X-axis horizontal spindles Automatic tool change system with 18 positions - positioned on the back of the machine Frontal protection and safety system with carpets and perimeter nets Automatic lubrication system Air conditioning system for the switchboard No. 1 vacuum pump
