2018 Fida

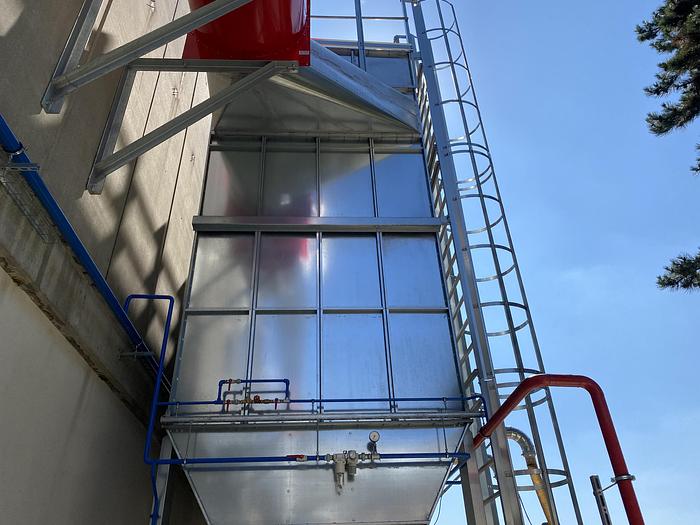

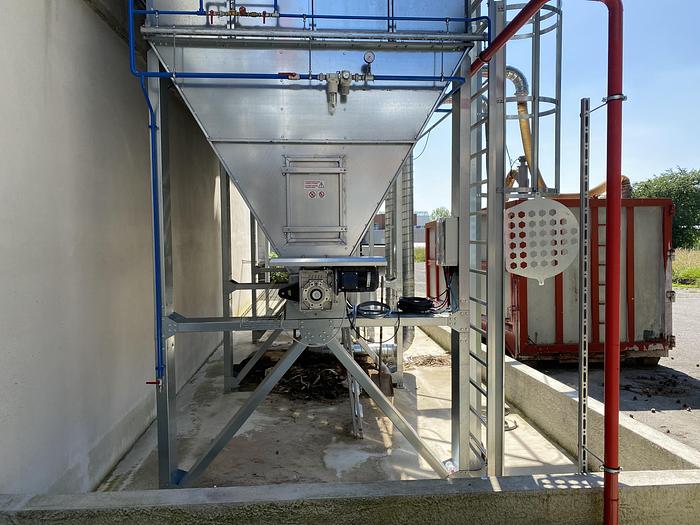

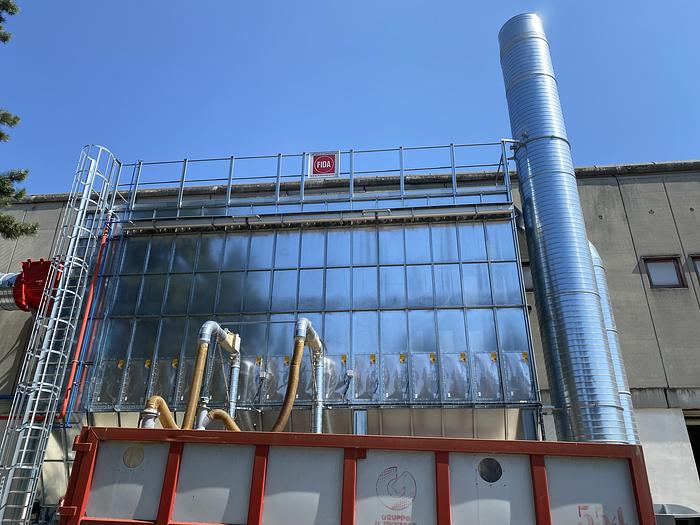

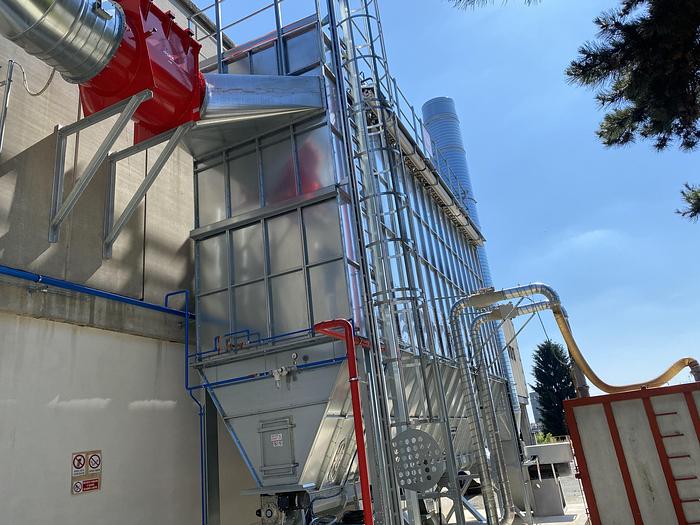

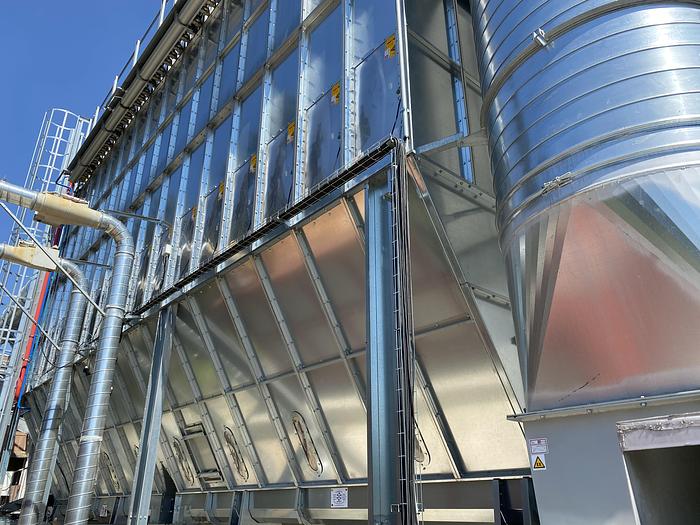

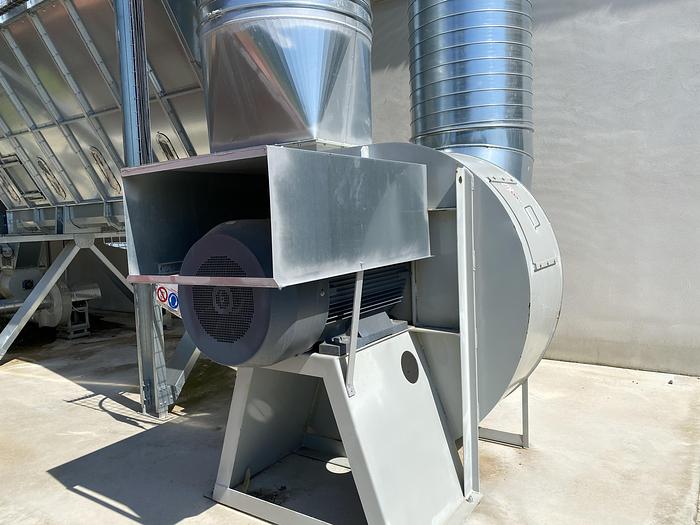

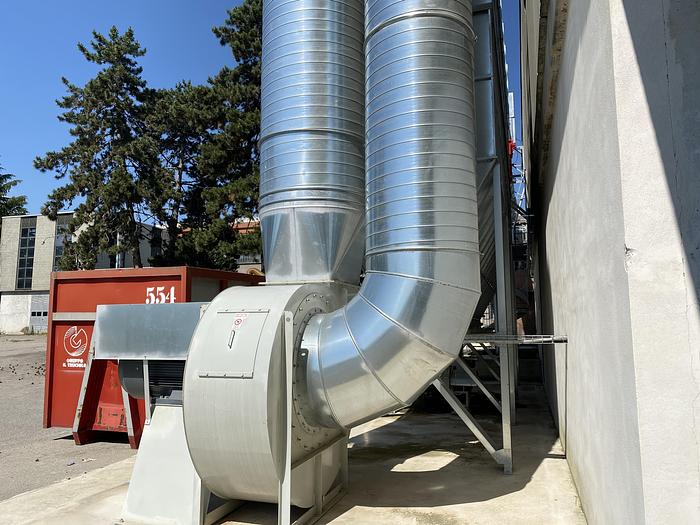

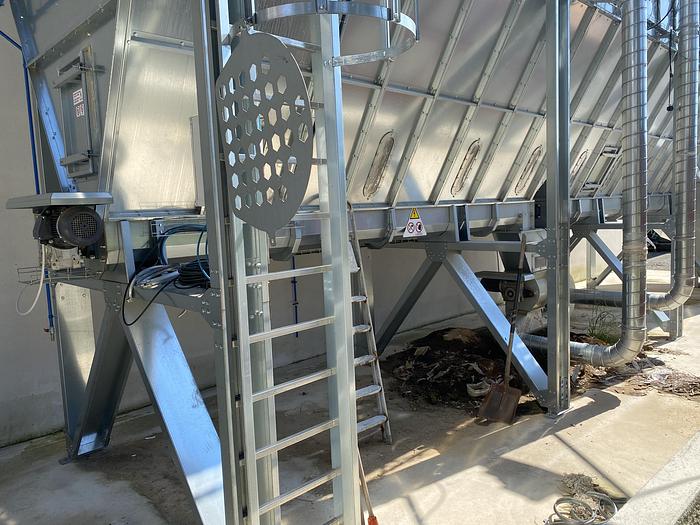

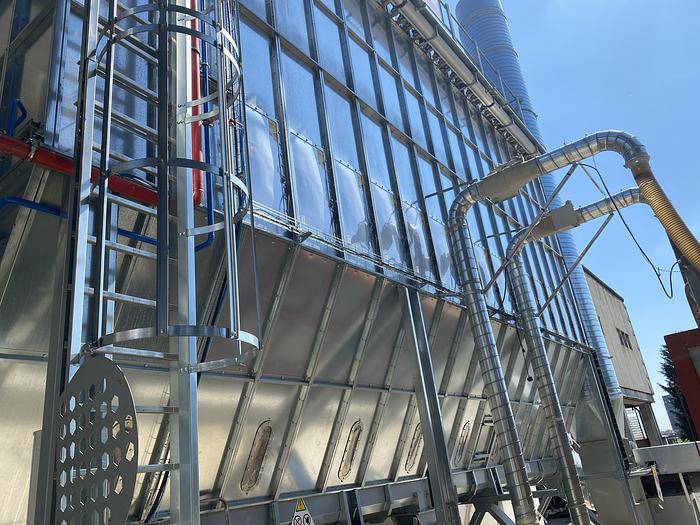

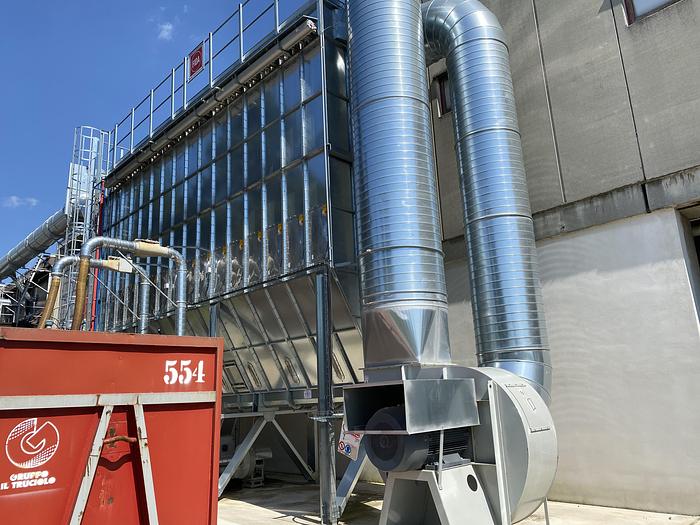

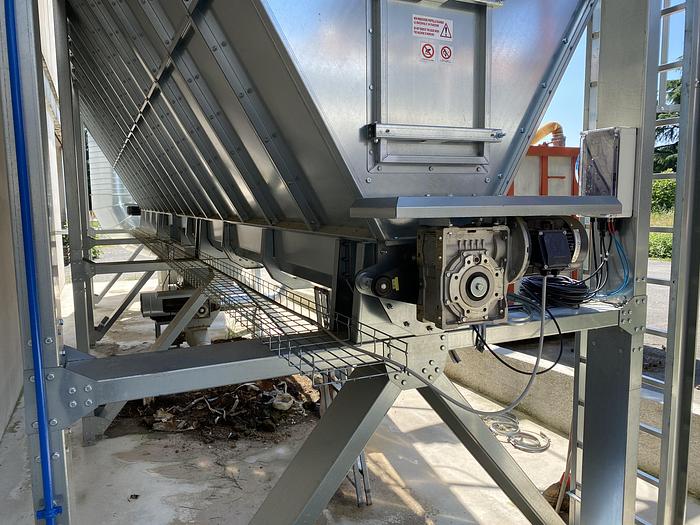

Suction system composed as follows: 1) Substation with automatic counter-current sleeve cleaning with compressed air, operating in negative pressure, with the following features: * Width: 2,500 mm * Length: 10.400 mm * Height: 9,500 mm * Air flow: 85.000 m3 / h * Room temperature * Filter surface: 847.8 m2 * Filtration speed: 1.65 mt / min * Compressed air consumption: 67.9 Nm3 / h * No. of hoses: 540 * Hose diameter: 125mm * Hose height: 4000 mm 2) High efficiency centrifugal fan with backward curved impeller with the following characteristics: * Flow rate: 85,000 m3 / h * Speed: 1,475 rpm * Noise: 90 dB (A) at mt. 1.50 * Installed power: Kw 132 3) Series of ducts in galvanized sheet 4) Chip transfer system from the substation to the roll-off container 5) Electrical panel with 132 Kw inverter 6) Automatic spark detection and extinguishing system 7) N ° 1 fire damper 8) N ° 1 non-return valve 9) Shut-off dampers 10) Foot valve 11) Thermo-velocimetric sensor for substation
