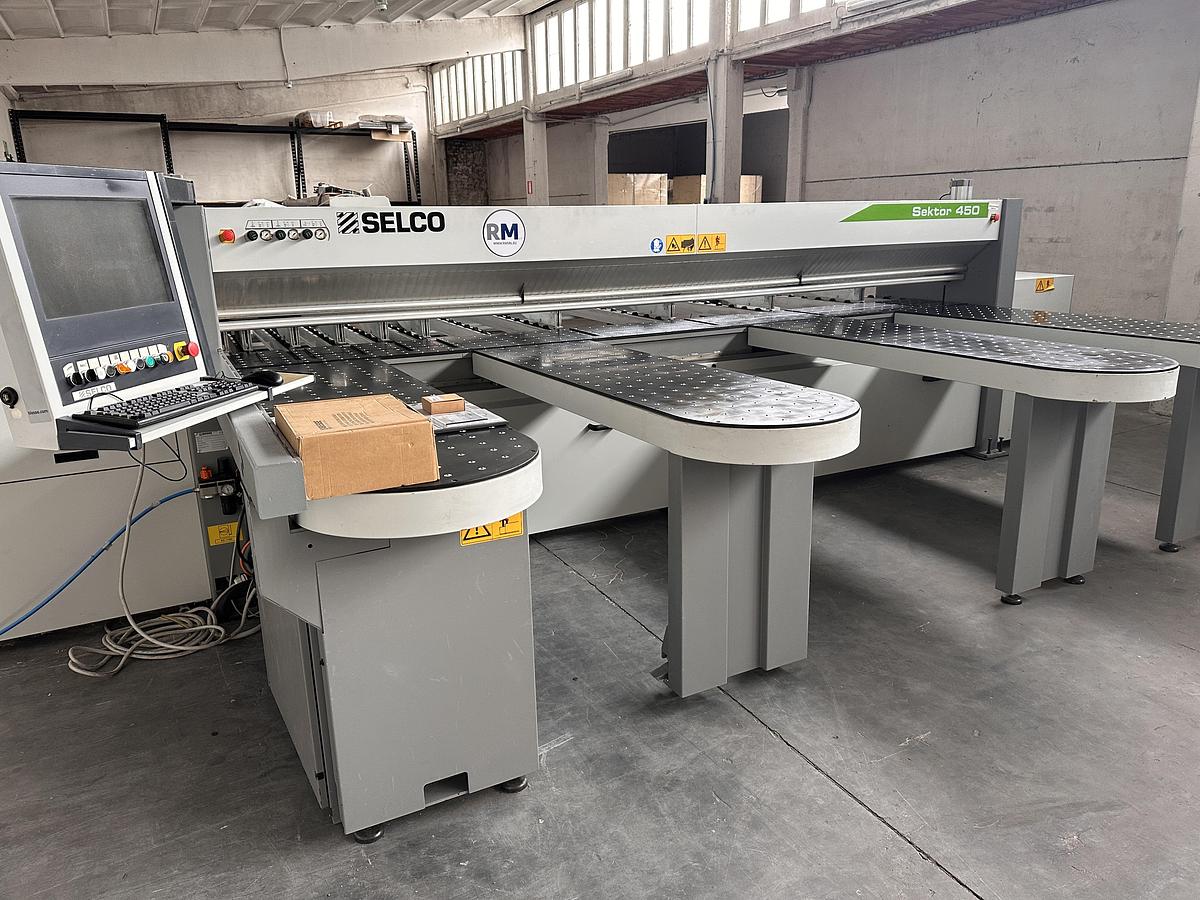

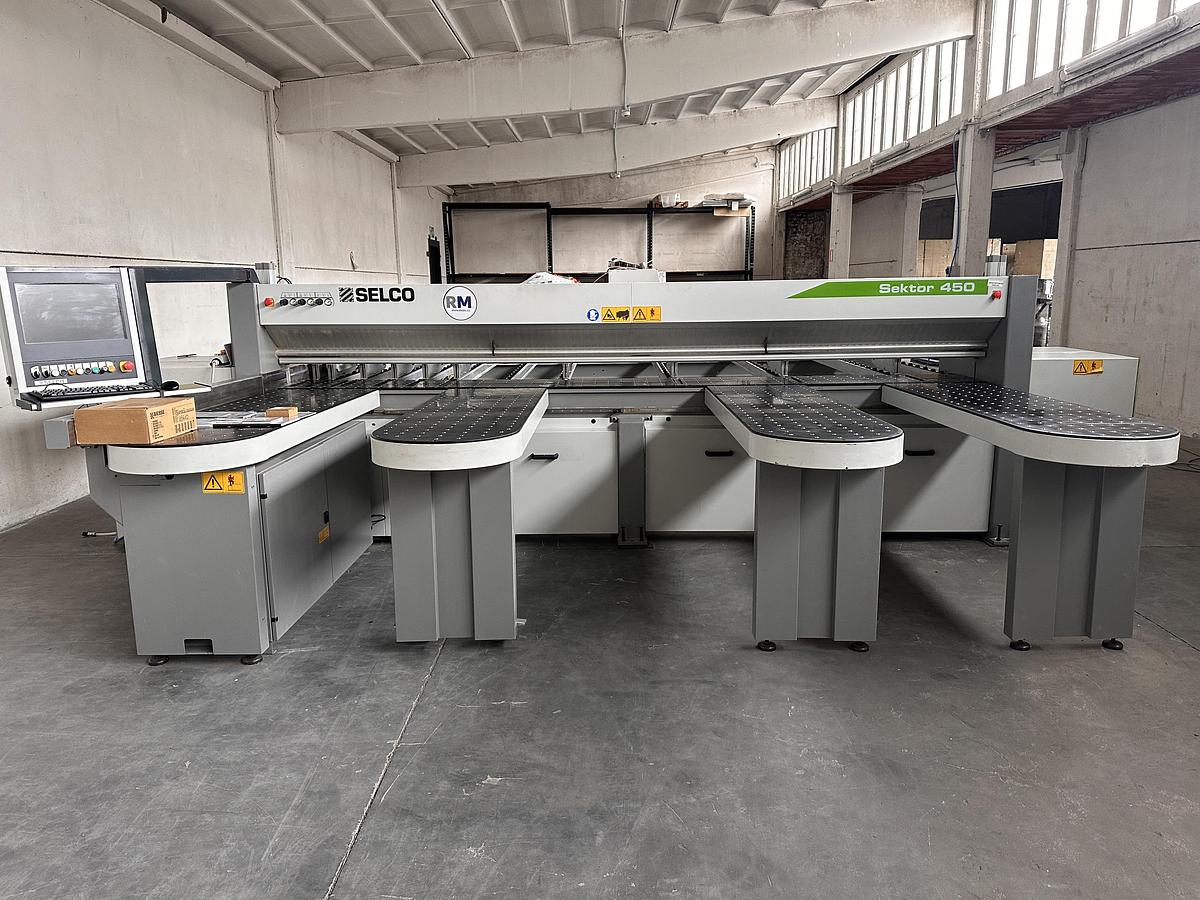

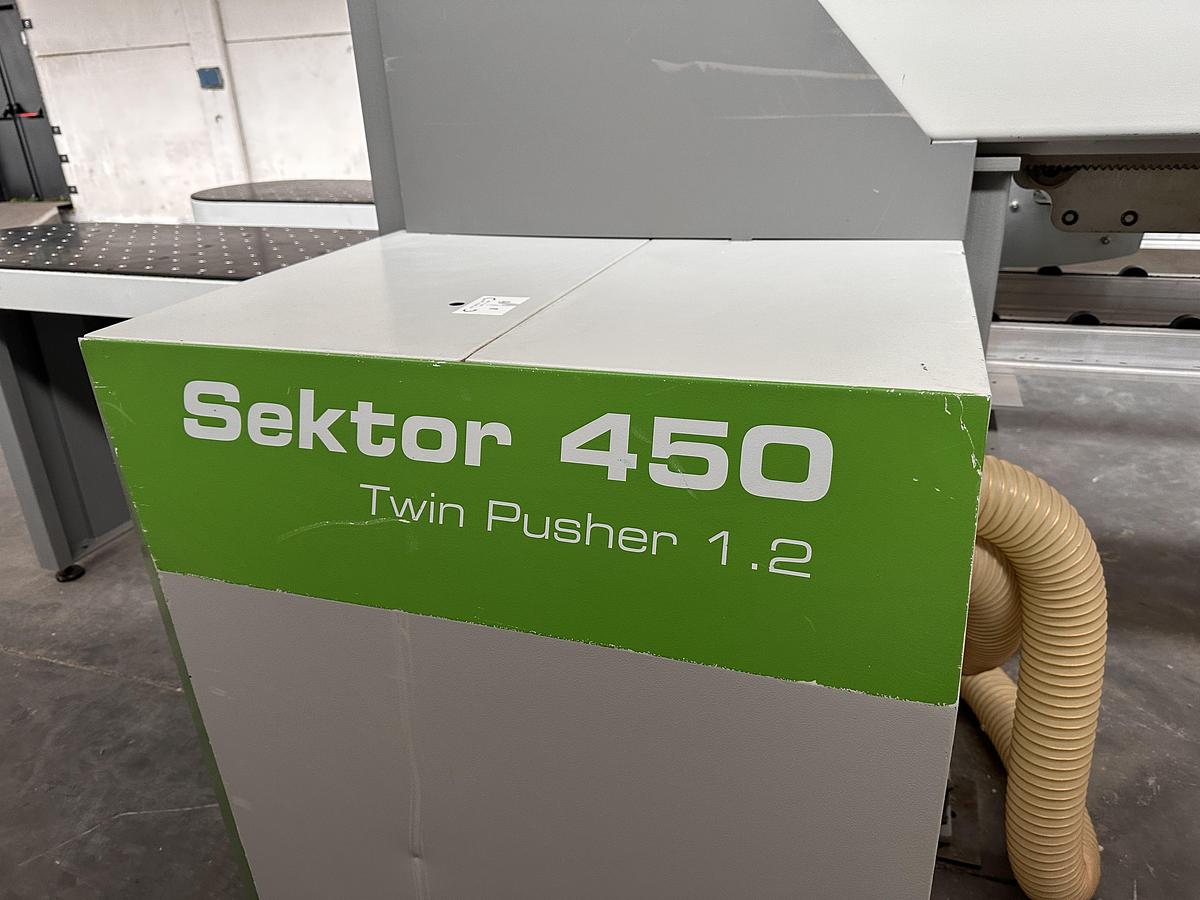

2017 Biesse Selco SK 4 450 Twin Pusher 1.2

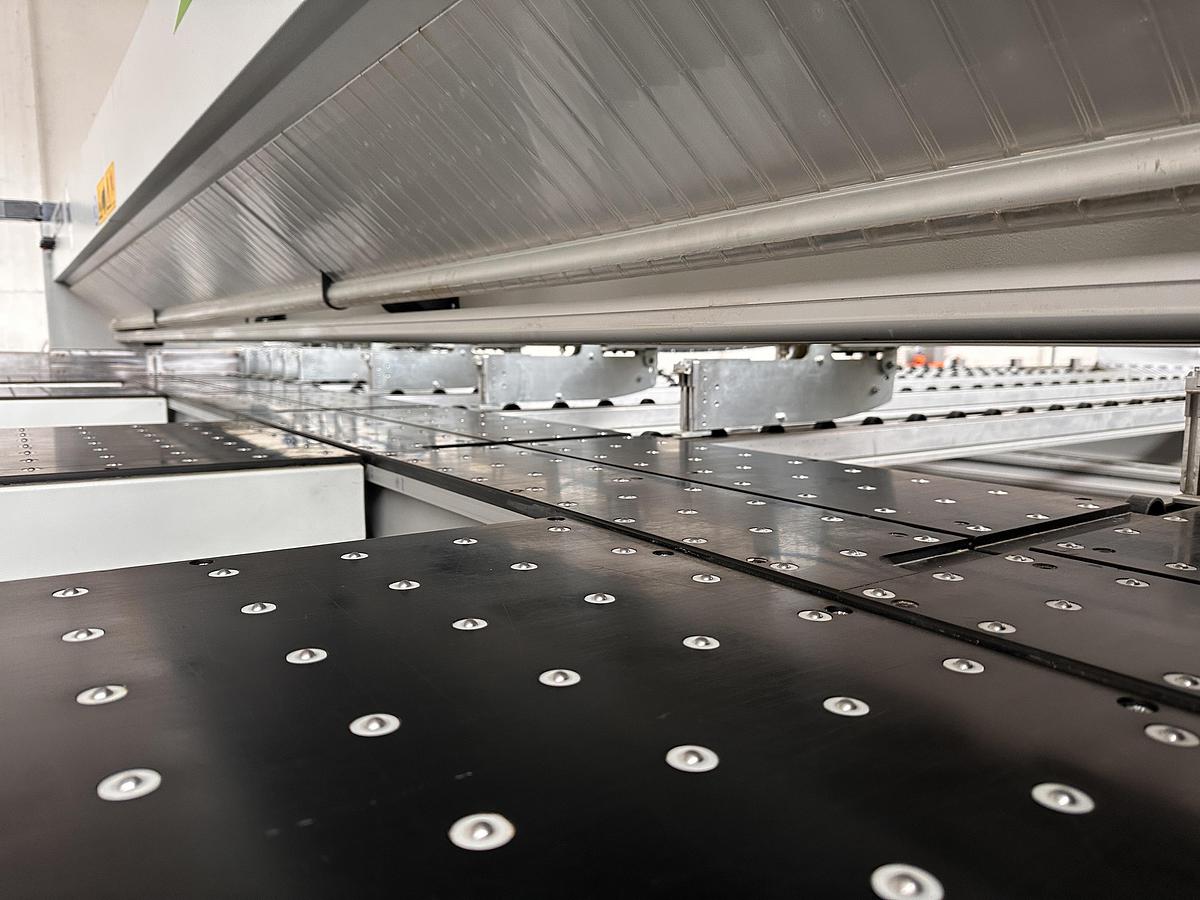

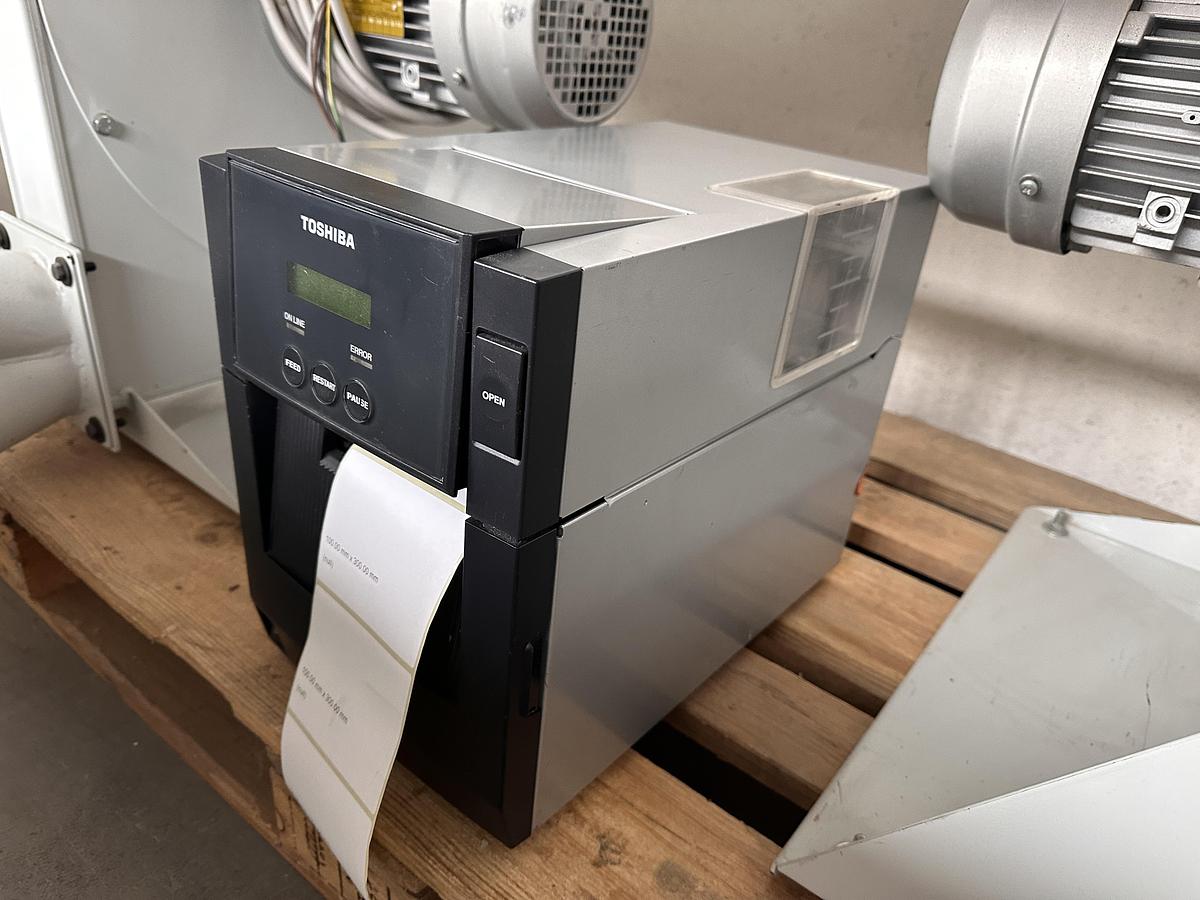

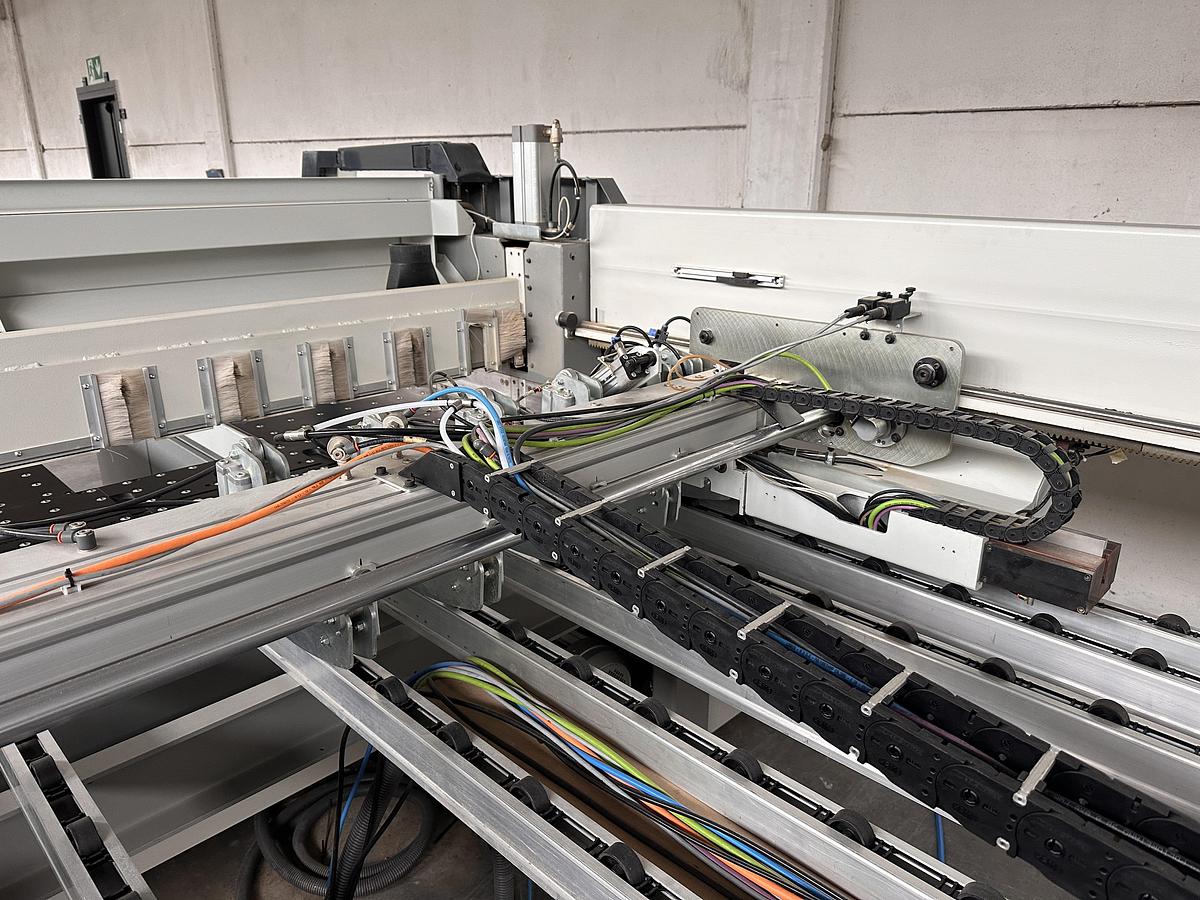

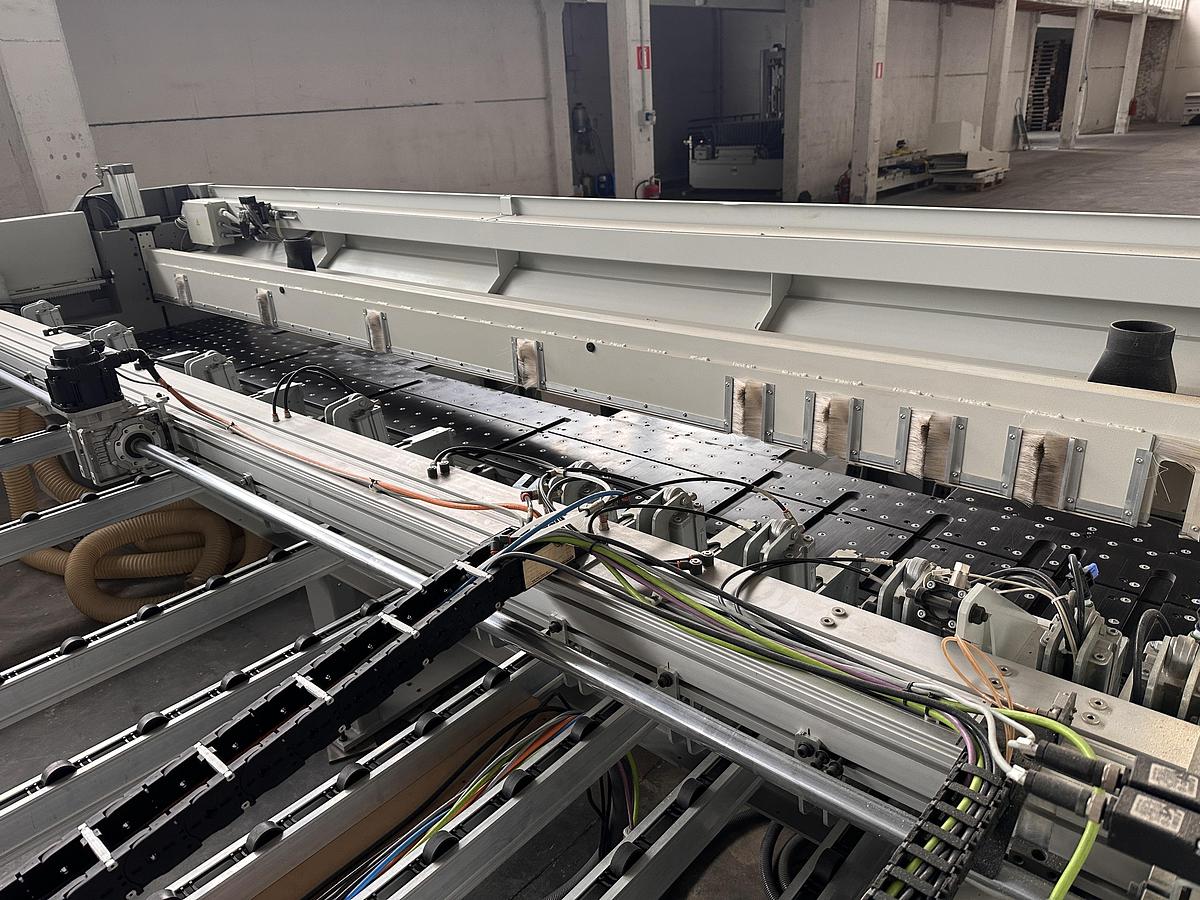

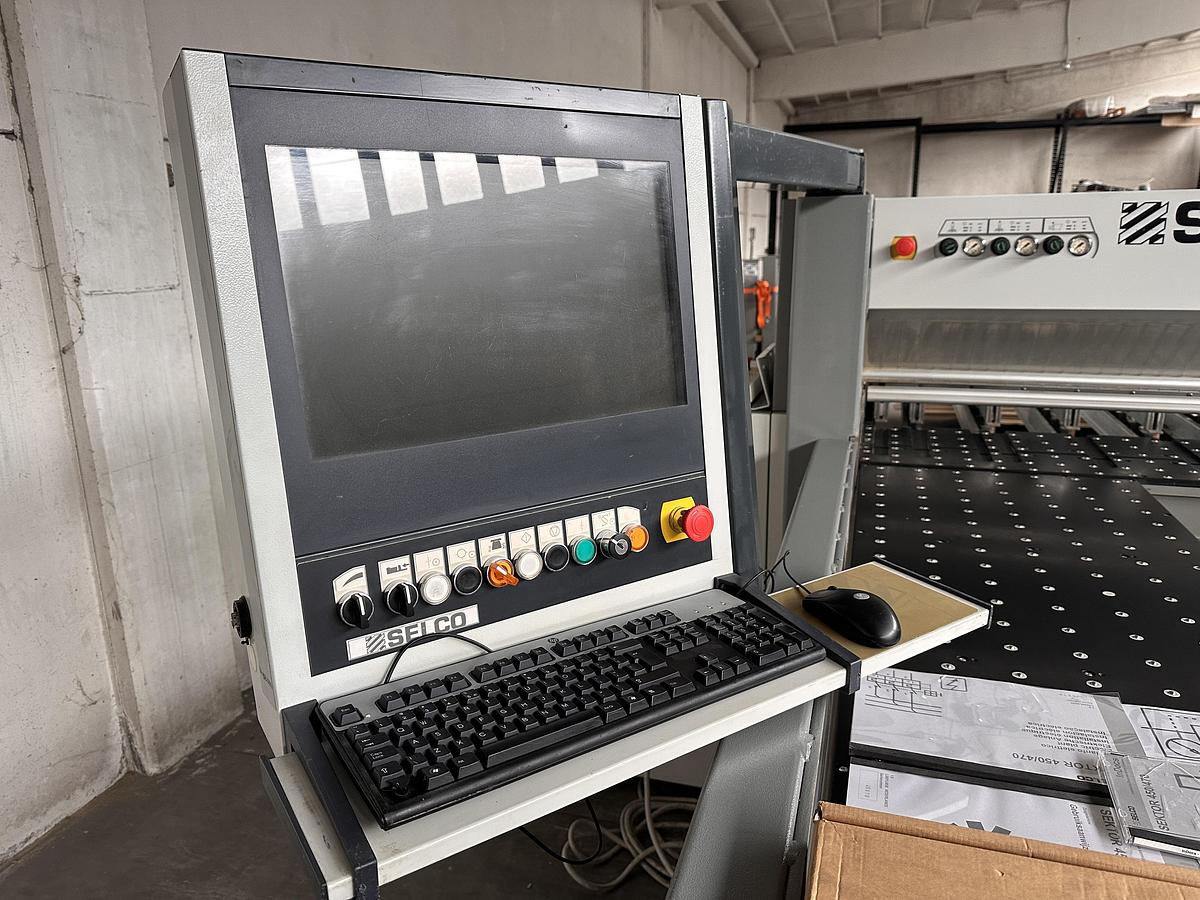

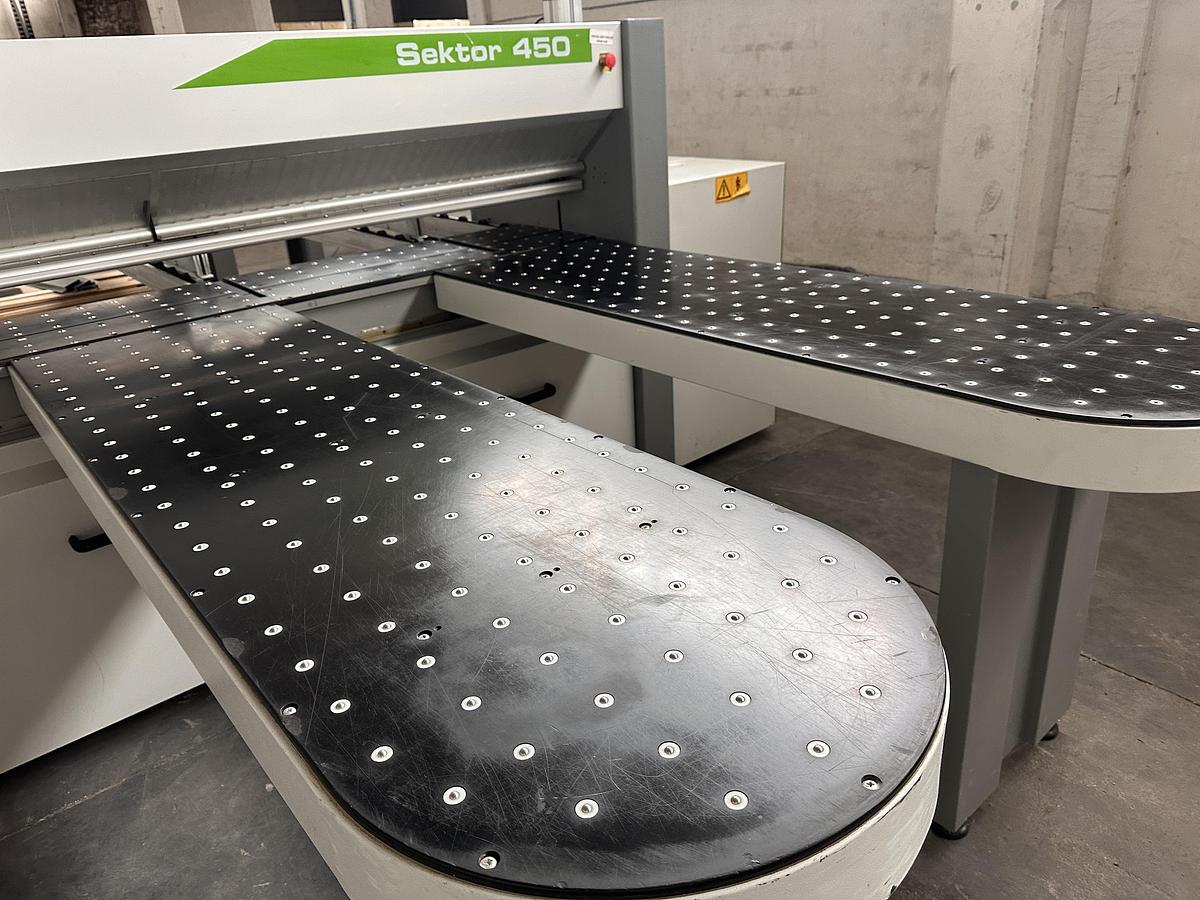

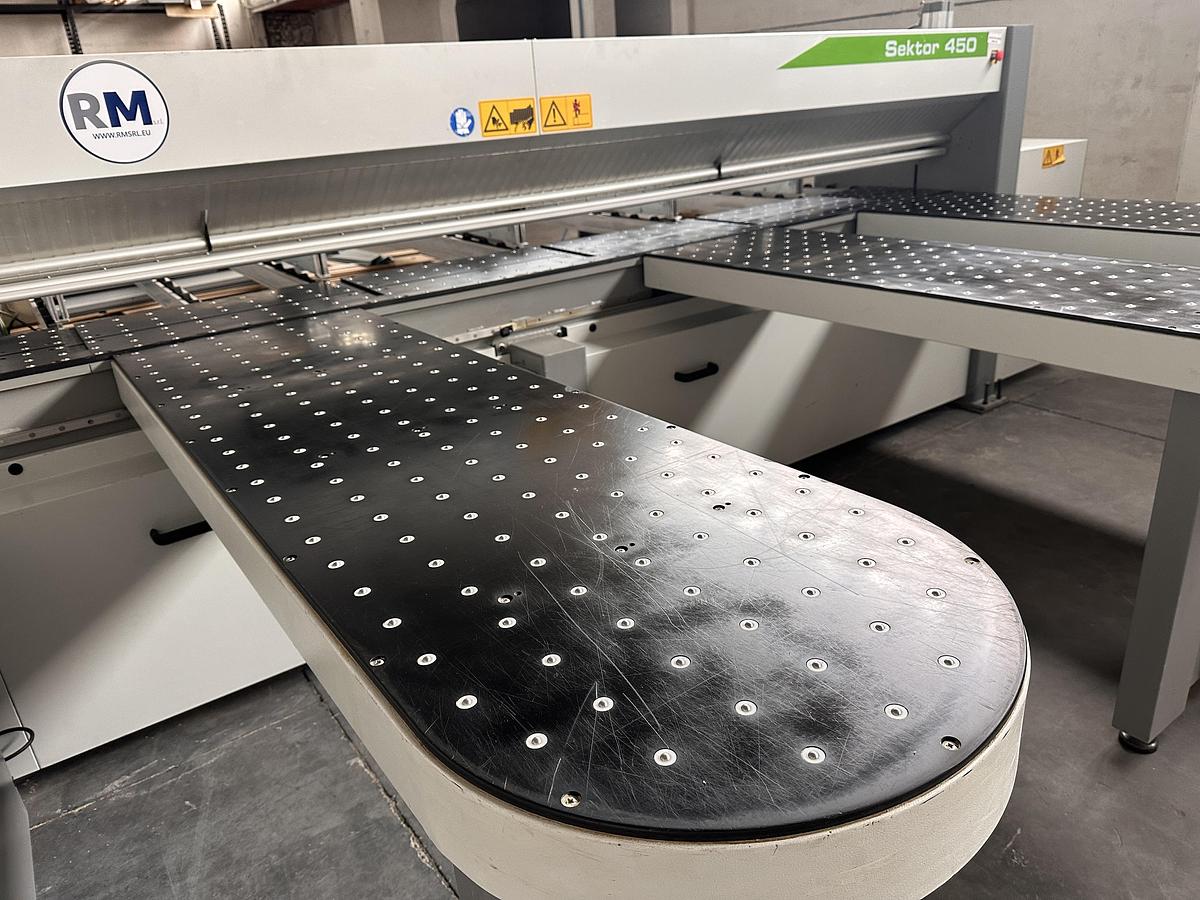

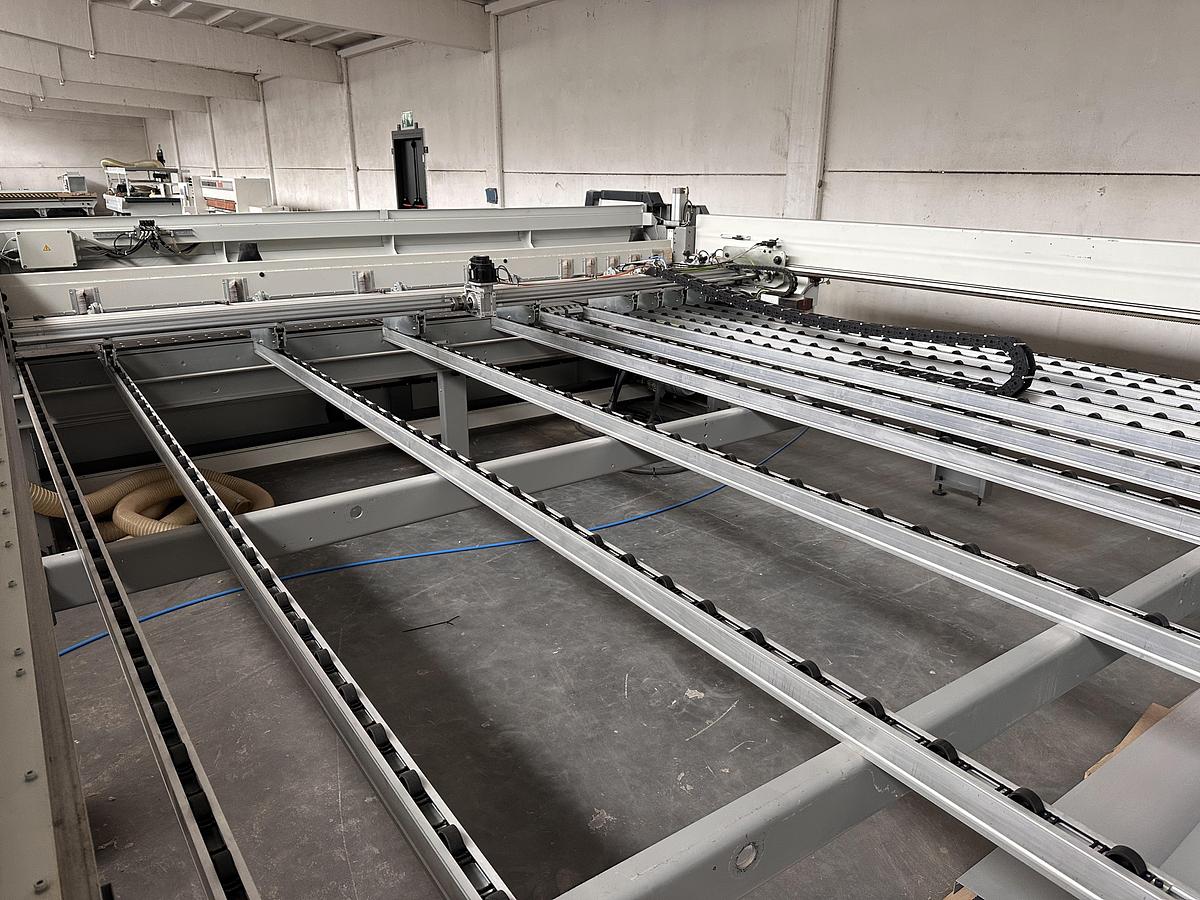

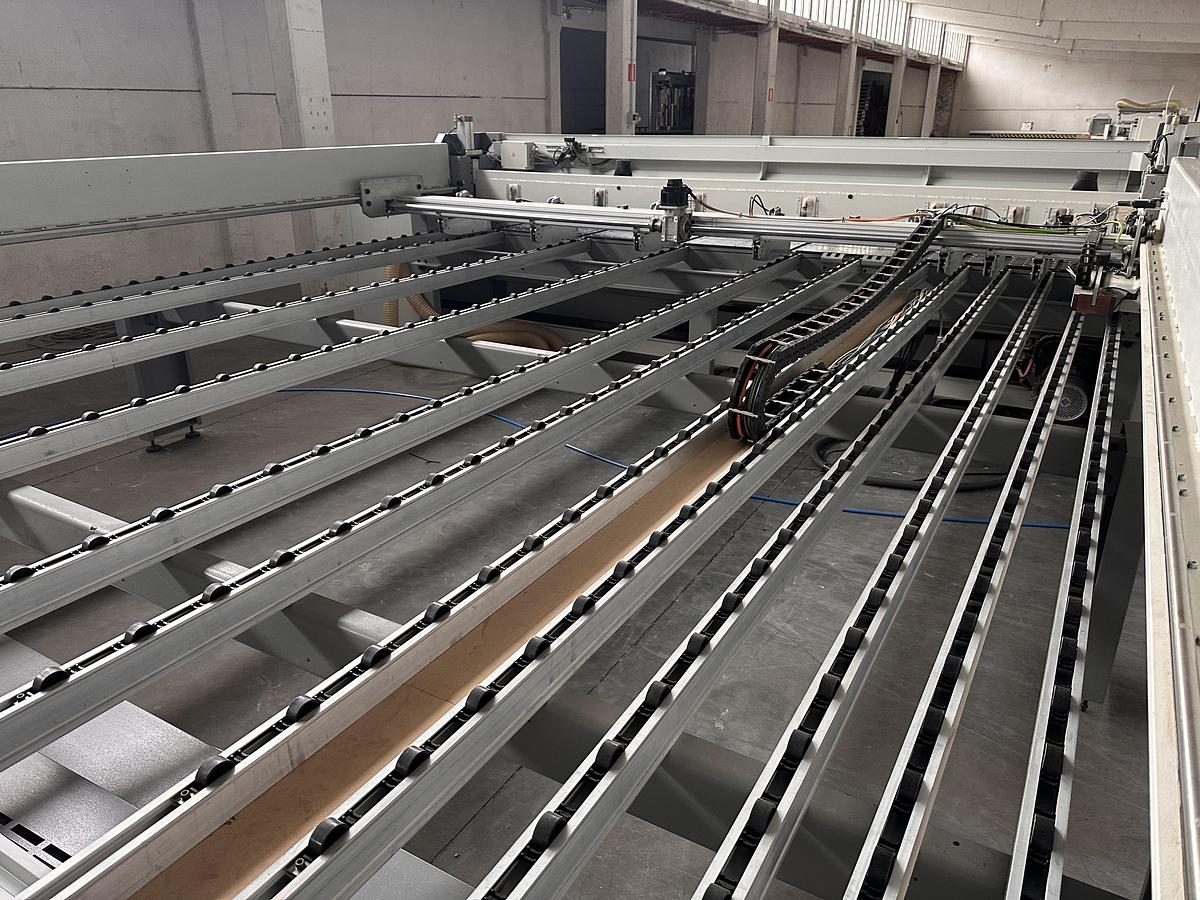

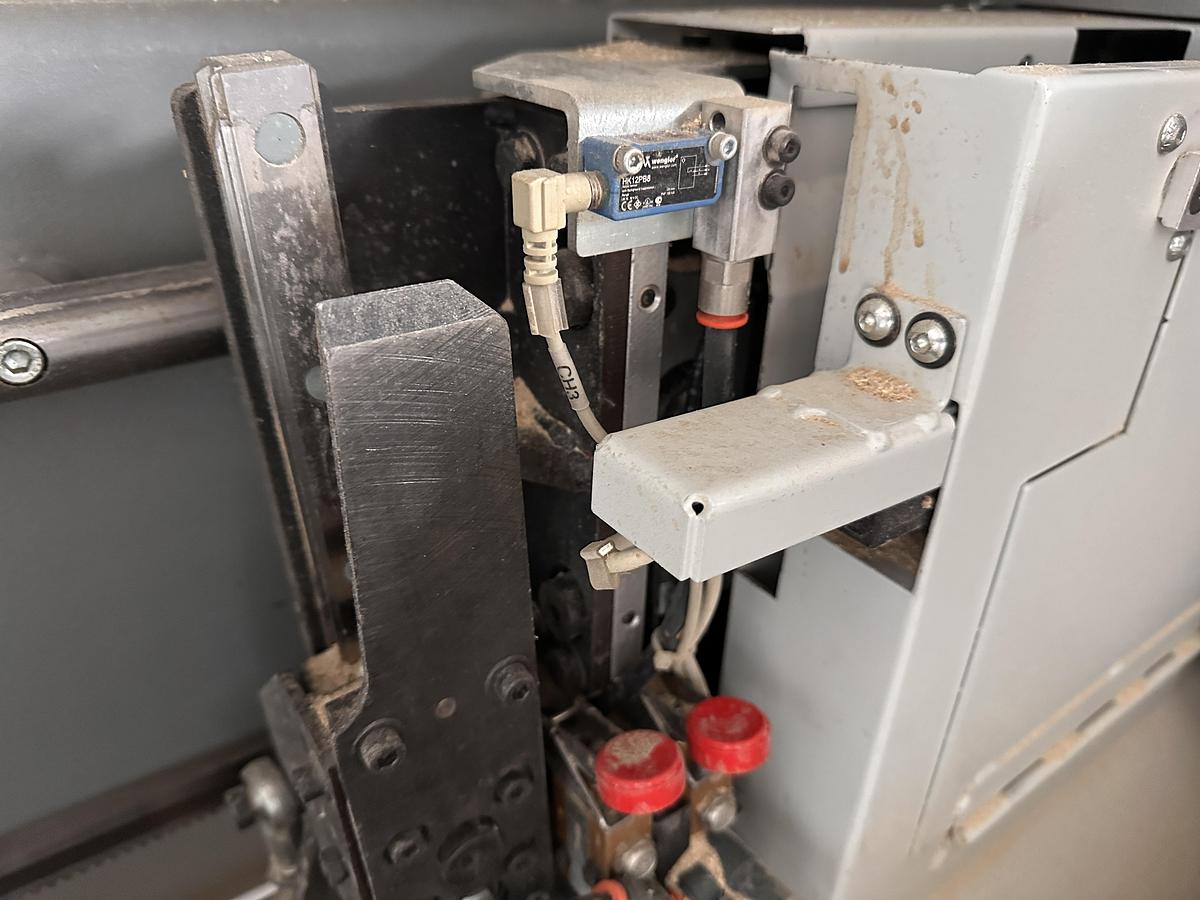

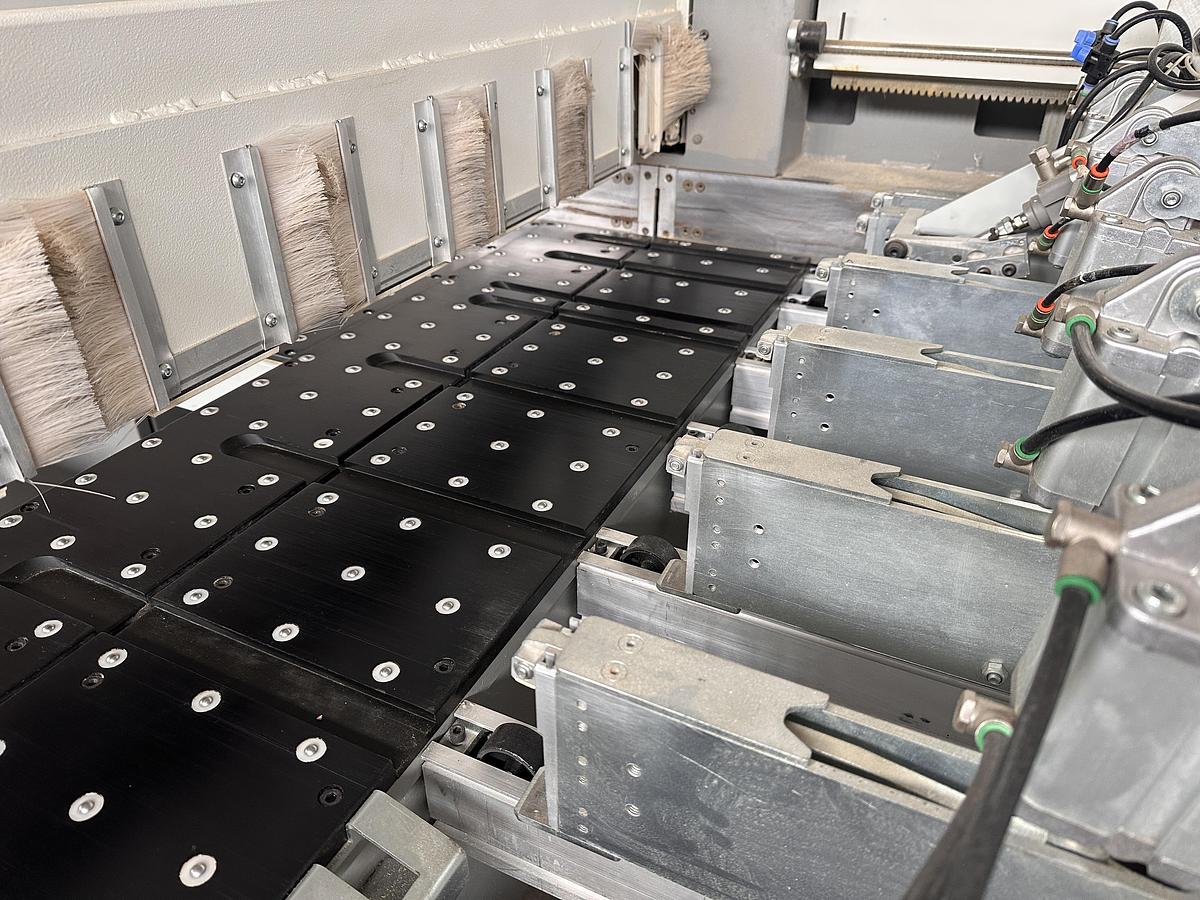

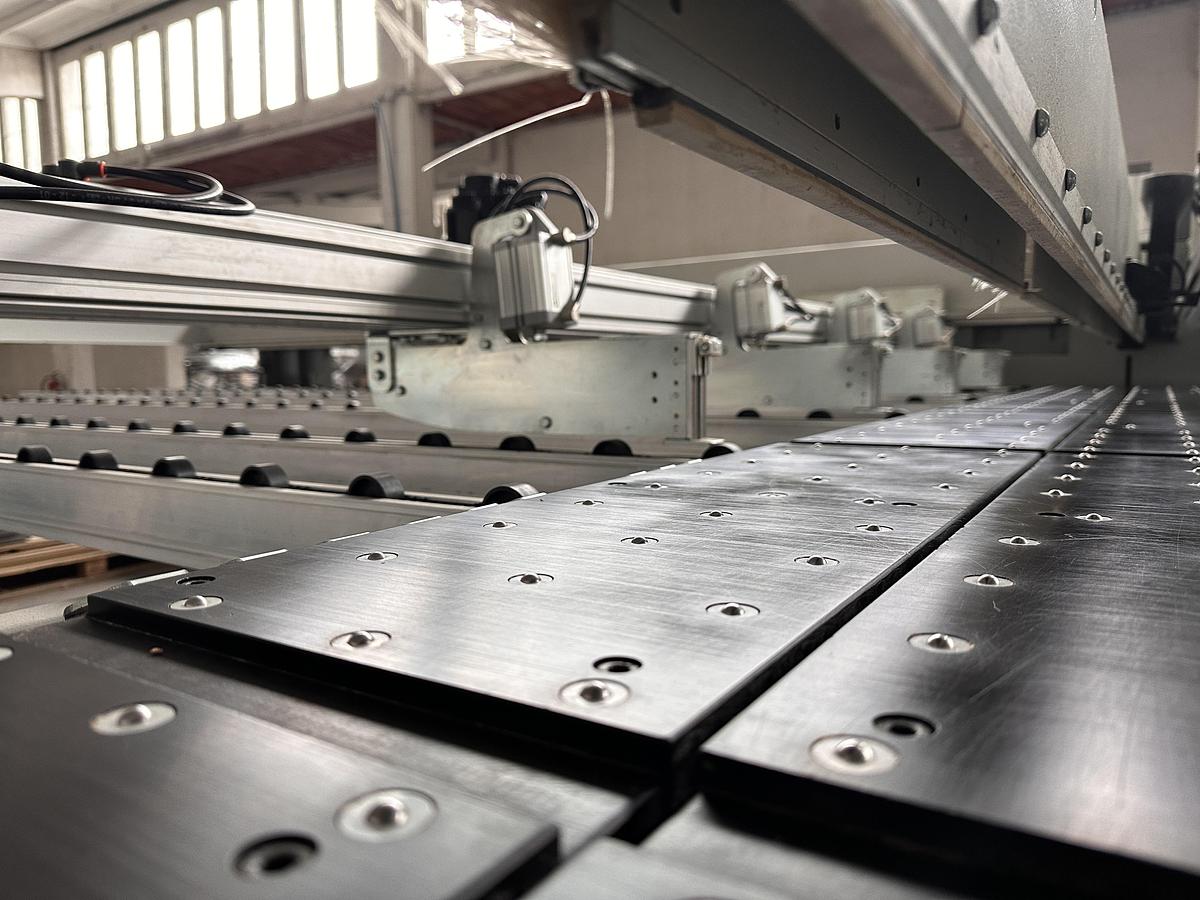

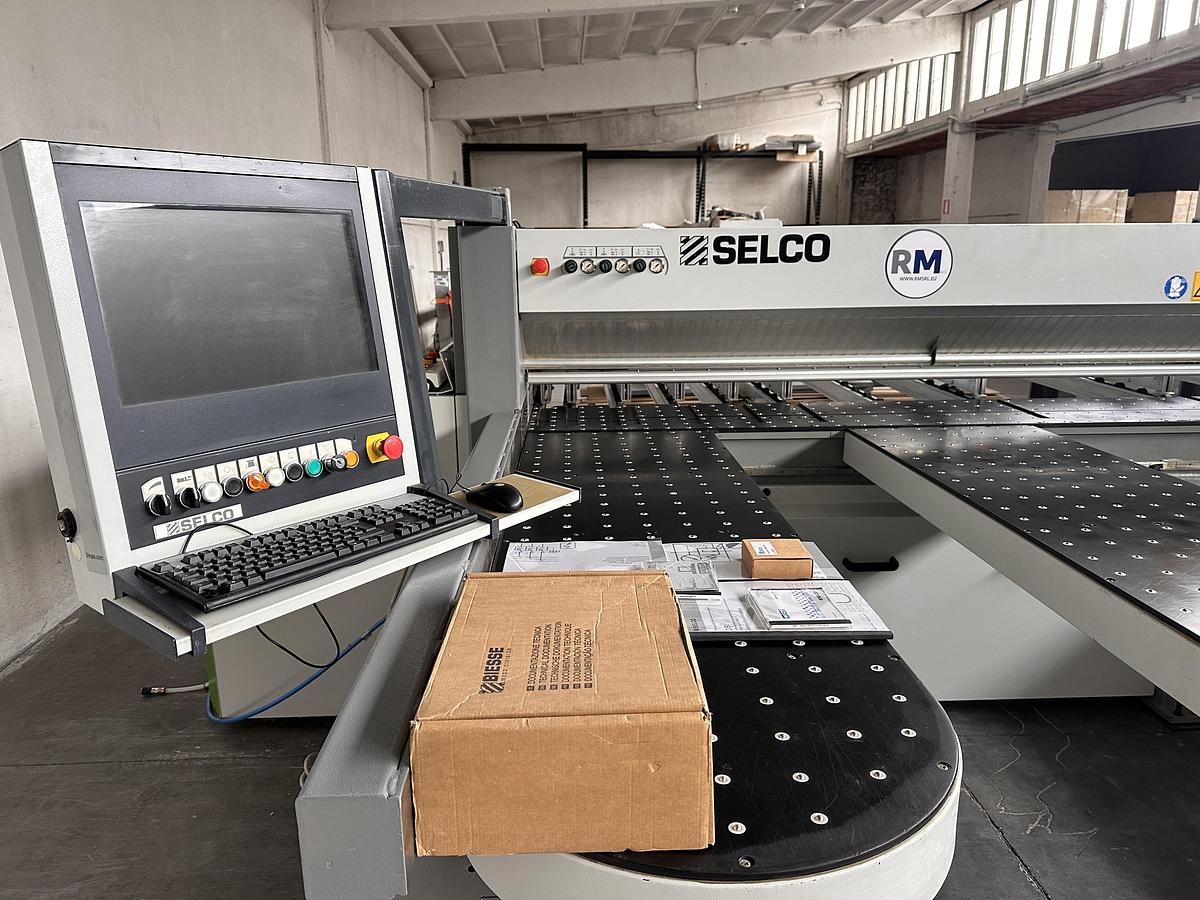

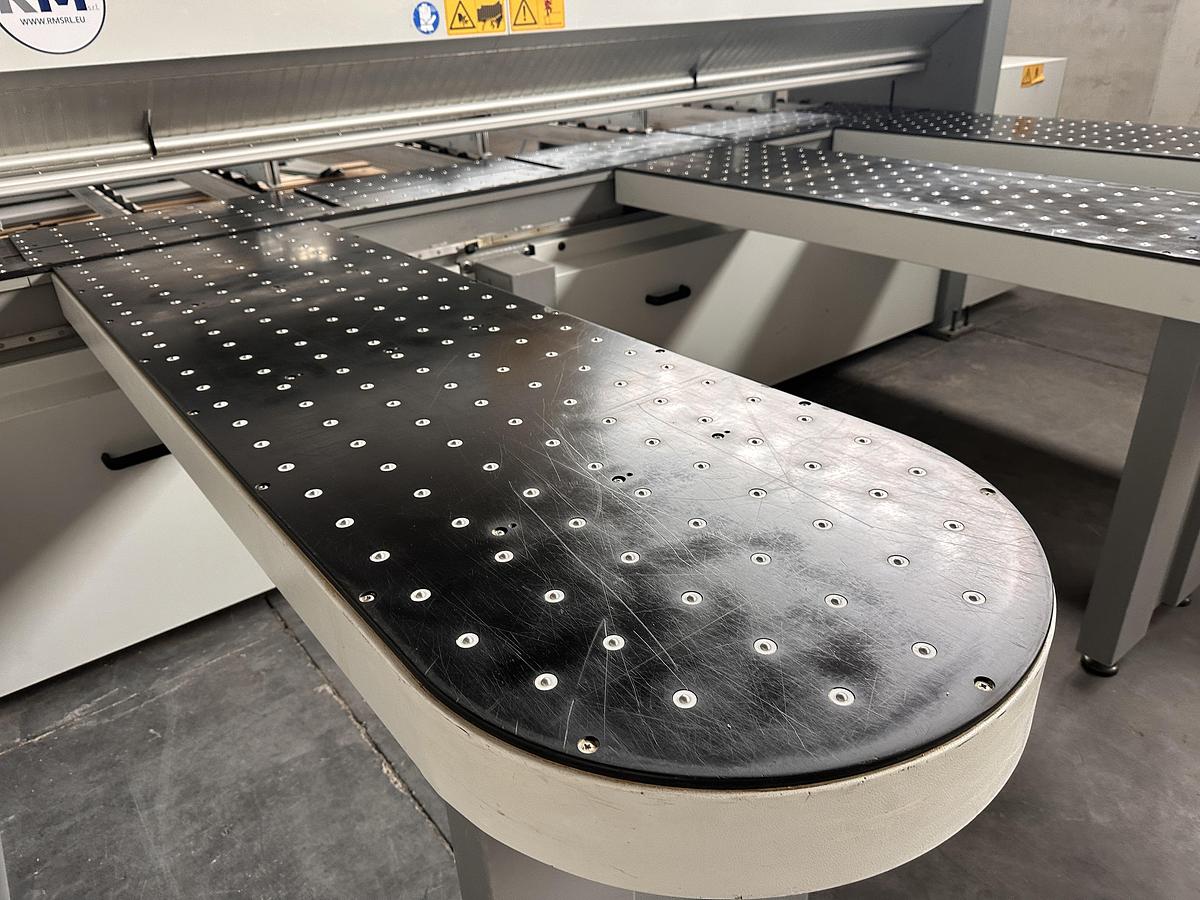

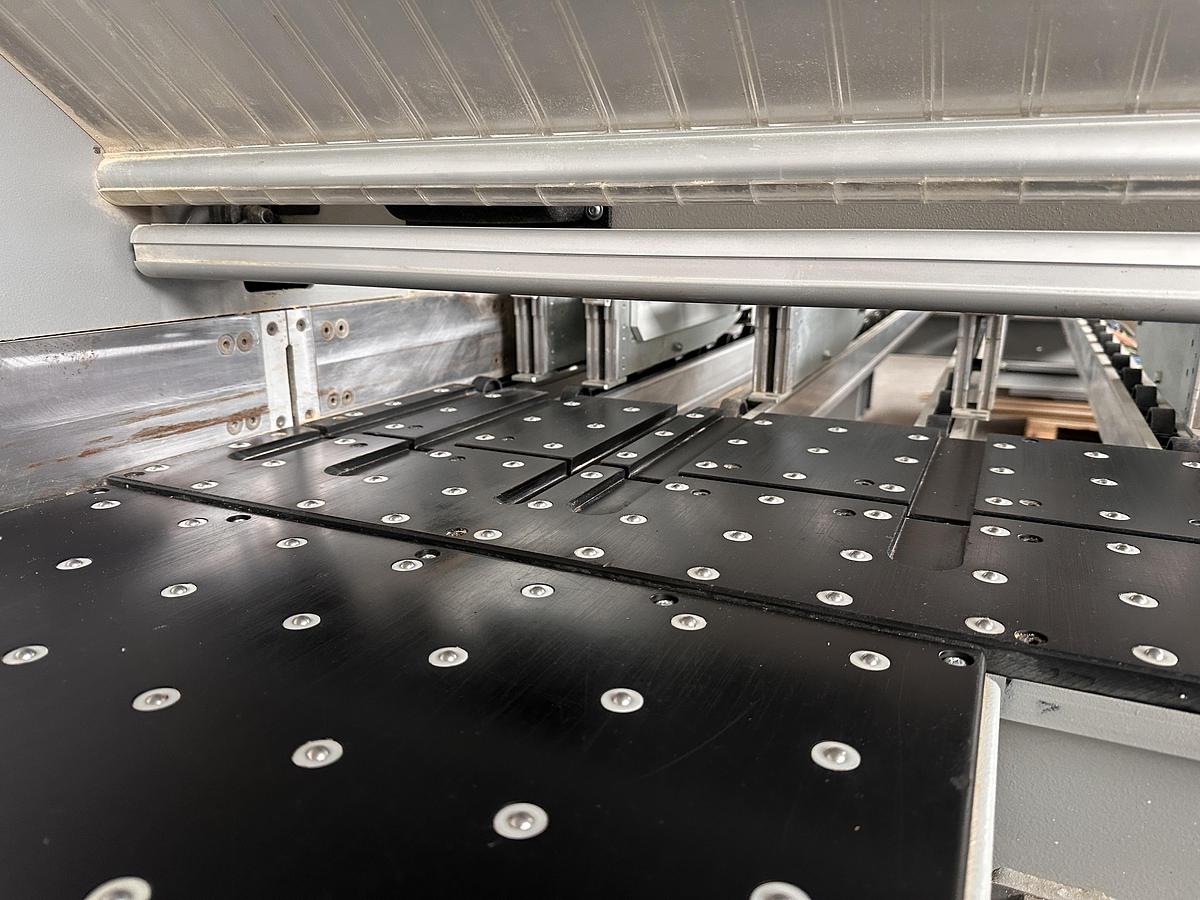

Osi Plus Numerical Control QUICK OPTI software for cutting pattern optimization directly on the machine Cutting optimization software OPTIPLANNING PROFESSIONAL version Barcode Label Printer - OS-Labelling Electrical cabinet air conditioner Cutting length mm 4400 Cutting width mm 4300 Blade projection 75 mm Manual front panel loading Lateral aligner integrated into the blade carriage No. 1 fixed front bakelite table with air curtain system for unloading the panels (mm 2050 x 850) No. 3 adjustable front bakelite tables with air curtain system for unloading the panels (mm 2050 x 650) Main blade group (max. blade diam. / power) 355 mm / 7.5 kW Engraving group (max blade diam. / power) 200 mm / Kw 2.2 Adjustable speed of the blade carriage Pusher wagon with 10 clamps Blade carriage speed 1-120 m/min Pusher speed 60 m/min Twin Pusher 1.2 system with 1 additional clamp on pusher carriage (position 570 mm) to perform different patterns cutting at the same time TECHNICAL DETAILS TO BE CHECKED
