2010 SCM / ROUTECH Chronos

Specifications

ManufacturerSCM / ROUTECH
ModelChronos
Year2010
Stock NumberMIG010

Description

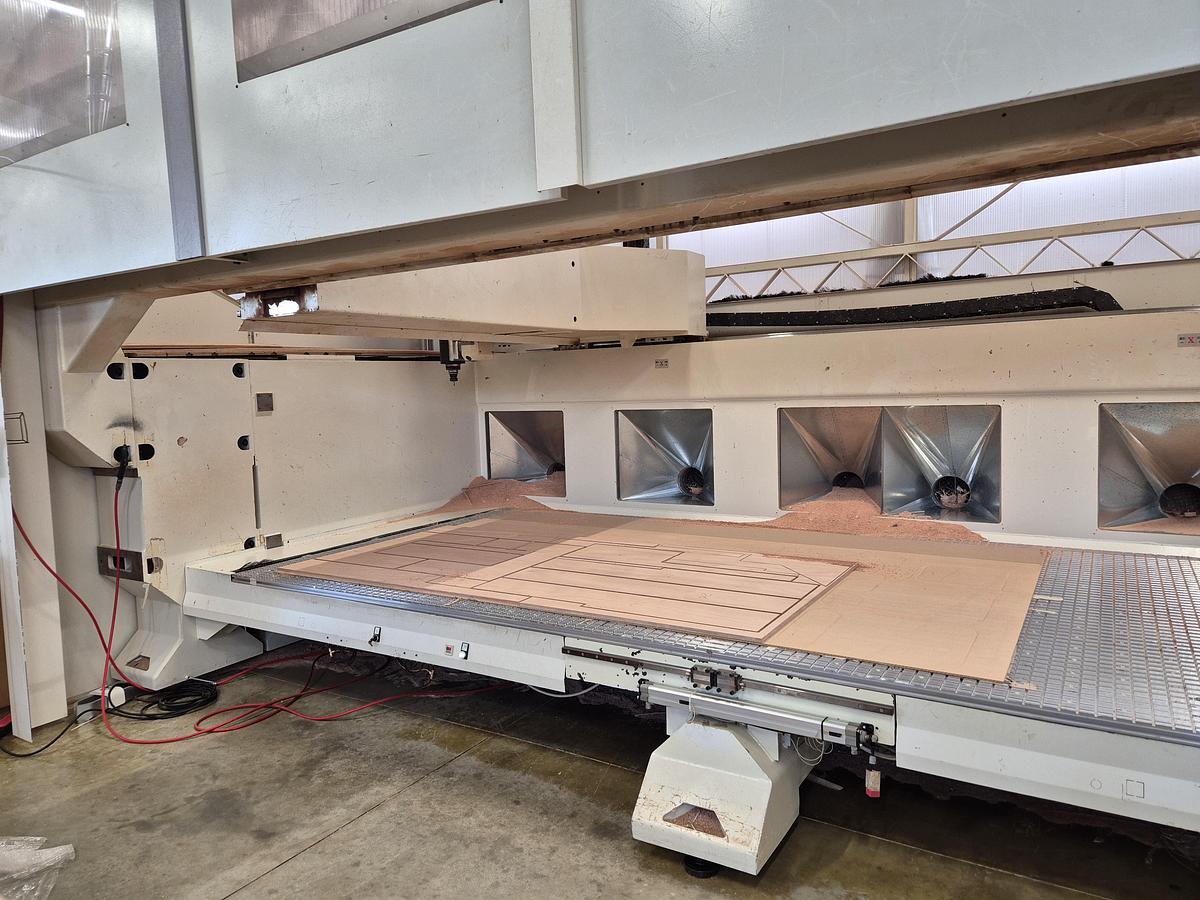

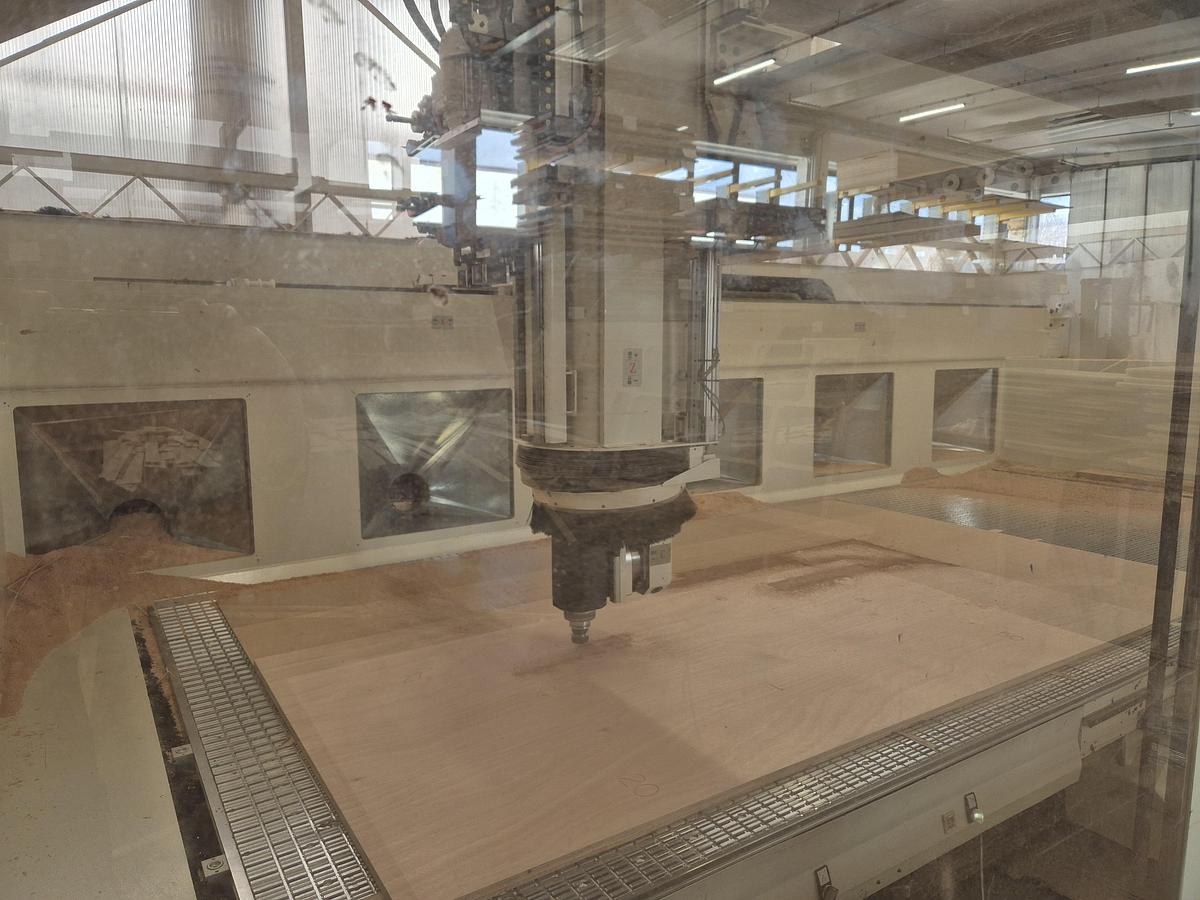

5-axis machining center with nesting table Numerical Control with OSAI software Axis travel (X, Y, Z) mm 4950, 2050, 1000 Working range on X-axis mm 4250 Working range on Y axis mm 1560 Working range on Z axis mm 800 FT multifunctional nesting full-surface worktable No. 1 PRISMA 5-axis electrospindle, kW 12 (hp 16), 900 - 24000 rpm, rotation directions SX / DX Automatic tool changer with 12 positions, HSK-F 63 type cones * n 12 tools diameter 80 mm * n 6 tools diameter 160 mm * max tool diameter mm 250 * maximum weight per tool 4 kg * maximum weight in the warehouse 24 kg Drilling head with 9 spindles arranged as follows: - No. 5 vertical spindles; - No. 4 horizontal star spindles; * Distance between spindles mm 32 * rotation speed rpm 4000 * engine power kw 2.2 Protection and safety system with photocells and perimeter walls Automatic lubrication system Air conditioning system for the electrical panel No. 2 vacuum pumps, one of 250 m3/h Accessories and tools are sold separately Overall dimensions mm 7865 x 4200 x 4000 TECHNICAL DETAILS TO BE CHECKED
