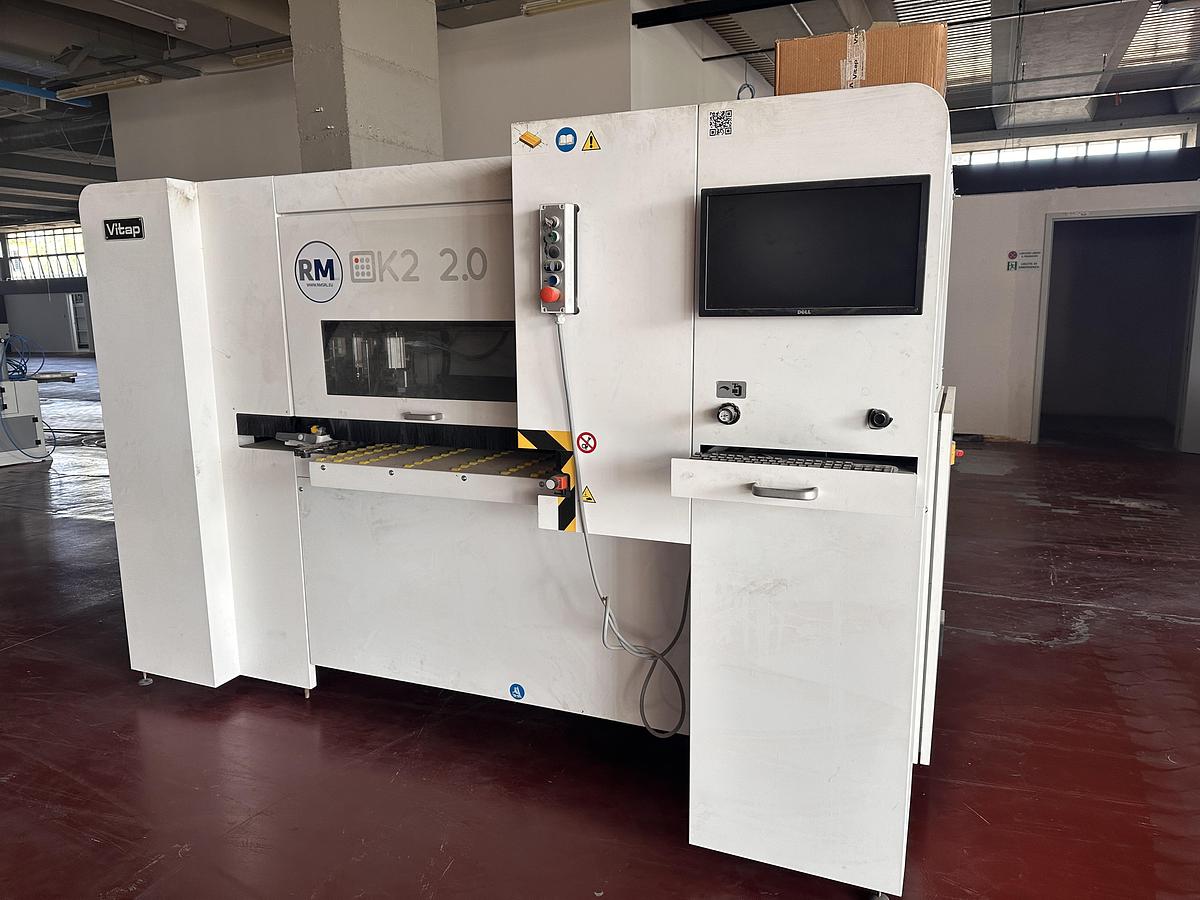

2020 Vitap K2 2.0

WELCOME TO THE "BAR NESTING REVOLUTION" WITH ALL THE ADVANTAGES OF CLASSIC NESTING PROCESSING BUT WITHOUT ANY MORE LIMITS IN HORIZONTAL DRILLINGS. To move from high production to "JUST IN TIME PRODUCTION" it is necessary to review the production methods nowadays. production and adequate cost reduction to respond to ongoing market trends. Automatic tool changer with 4 positions and large capacity Y-axis 1250 mm. Patented D-D-T (Double Dynamic Transport) system with continuous panel movement without any piece recovery via 2 clamps. Maximum panel grip, panel thickness from 3 to 50 mm. 4-sided squaring device 0-3 mm. Vitap Bar Nesting System. 12 independent vertical spindles. 2 + 2 horizontal spindles on the X-axis. 2 + 2 horizontal spindles on the Y-axis. Blade d.100 mm. ISO 30 5kW electrospindle (rpm 12000\24000) Full Parametric Control with the ability to import CAM and DXF files Maximum panel dimensions x infinity \ y 1250 mm \ z 50 mm Minimum panel dimensions x 270 mm \ y 150 mm \ z 3 mm Weight 1400 Kg Dimensions 2900 x 1650 x 1890 mm
