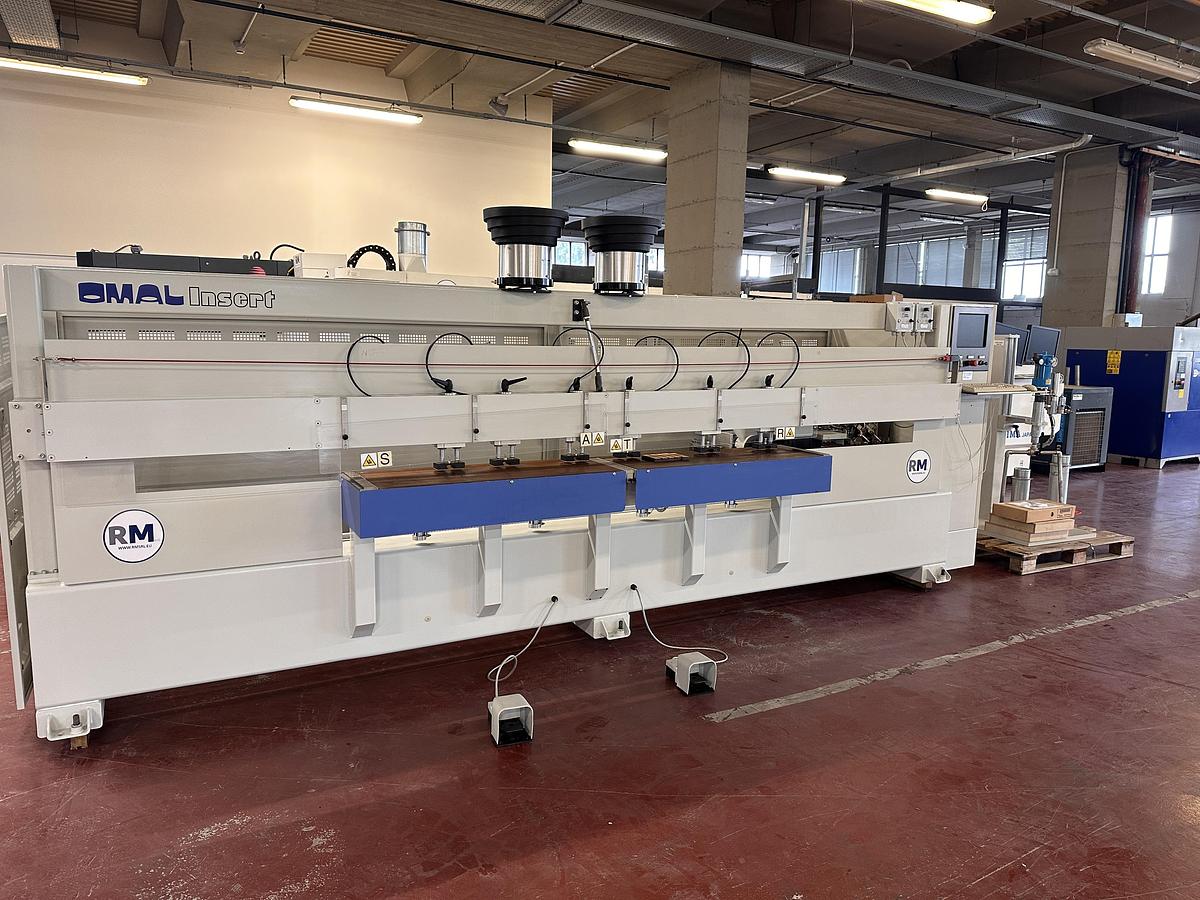

Omal Insert Livello 3

Automatic drilling and dowel insertion machine PC-based numerical control programming system 4 work fields in X Working dimensions (mm): 1200 - 600 x 2 Workpiece thickness 10-40 mm 1 horizontal drilling unit 2 gluing and dowel insertion units 1 horizontal drilling head with 5 spindles 1 vertical drilling head with 5 spindles 1 8-liter glue container + 1 8-liter water container Maximum hole depth with dowel: 30 mm Maximum hole depth without dowel: 45 mm Electronic glue dosing controlled by NC 2 tanks with vibrators for dowel storage Dowel dimensions: diameter 8 mm x length 35 mm Maximum dowel protrusion: 15 mm Glue/water gluing system
