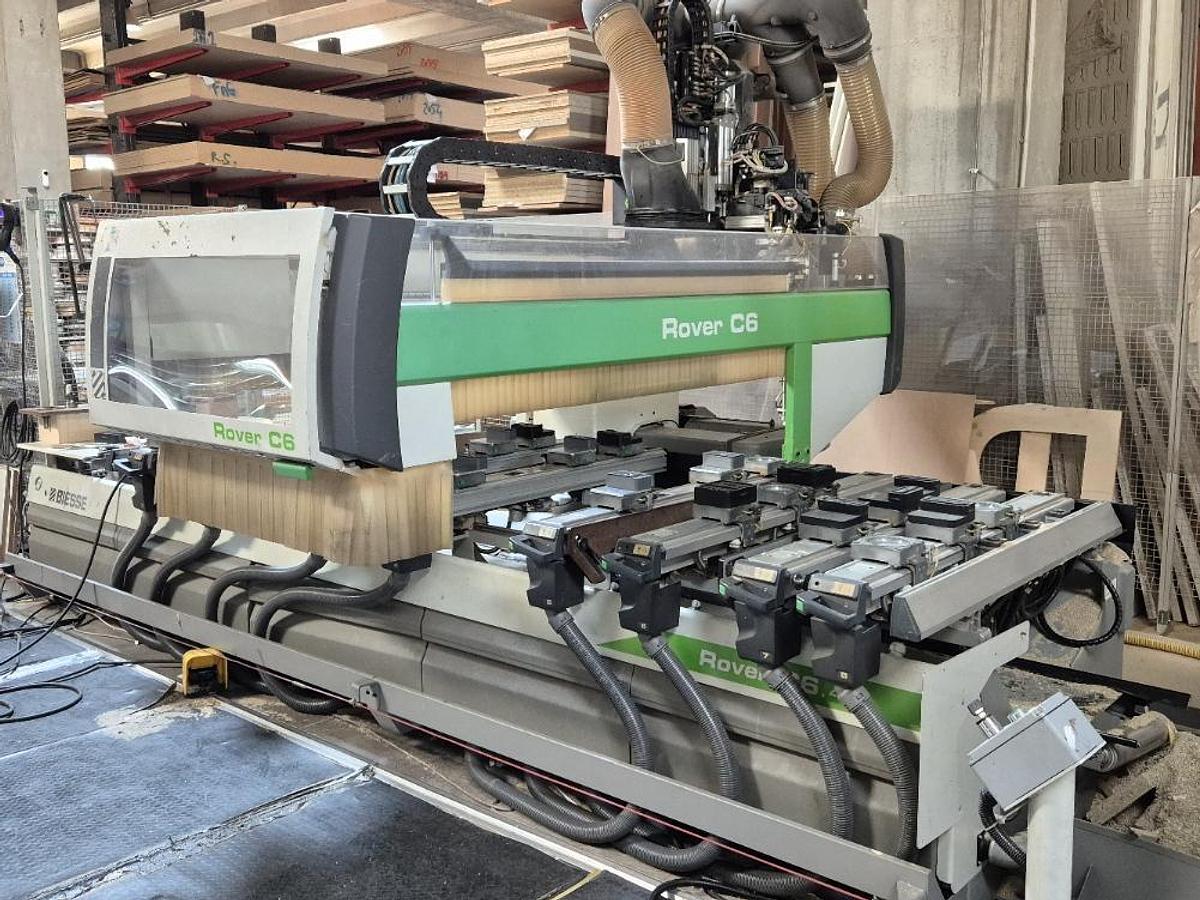

2009 Biesse Rover C 6.40

Biesse Works Control Working range on X axis mm 3500 Working range on Y axis mm 1585 Working stroke in Z axis mm 350 N ° 2 work fields Bar worktop No. 8 adjustable bars N° 4 pneumatic Bakelite bars for lifting the panel No. 3 adjustable suction cups for each bar with vacuum seal for fixing the panel during processing No. 1 4-axis vertical electrospindle (Vektor), with automatic tool change, HSK type cones 10-position rotary tool change system on the operating head 24-position chain tool change system - located on the rear of the chain machine Drilling head with vertical and horizontal spindles composed as follows: n. 12 vertical spindles in X n. 12 vertical spindles in Y n. 6 horizontal spindles in X n. 4 horizontal spindles in Y n. 1 independent blade for making X-grooves Front protection and safety system with carpets Perimeter protection grids Chip evacuation system with motorized belt Air conditioning system for cooling and cleaning of machine control Vacuum pump 250mc/h TECHNICAL DETAILS TO BE CHECKED
