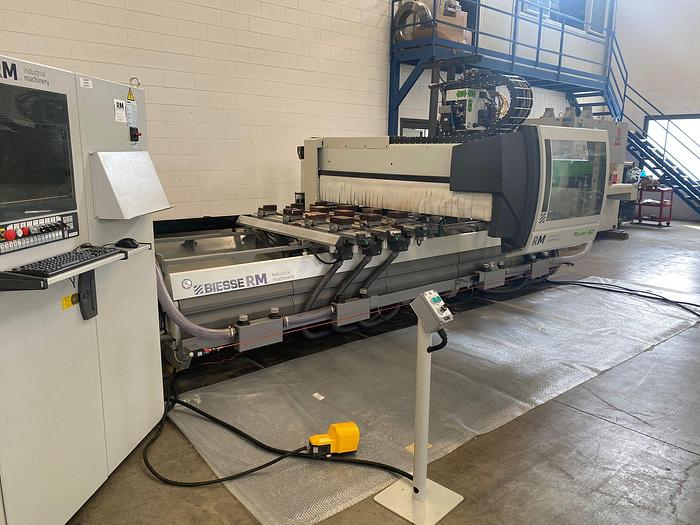

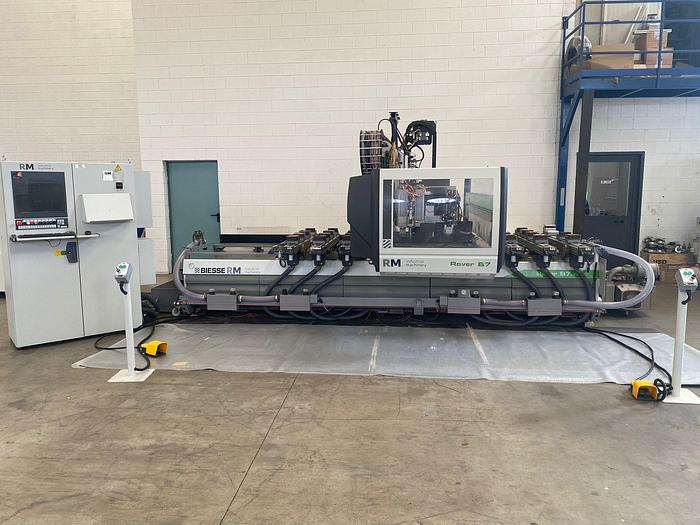

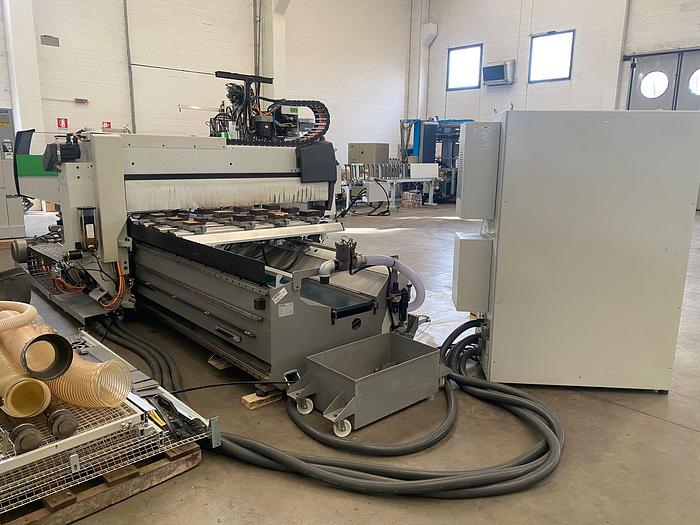

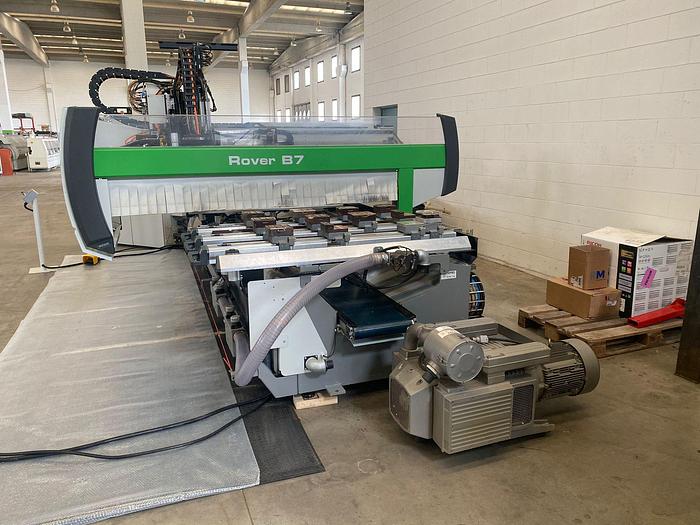

2011 Biesse Rover B 7.40

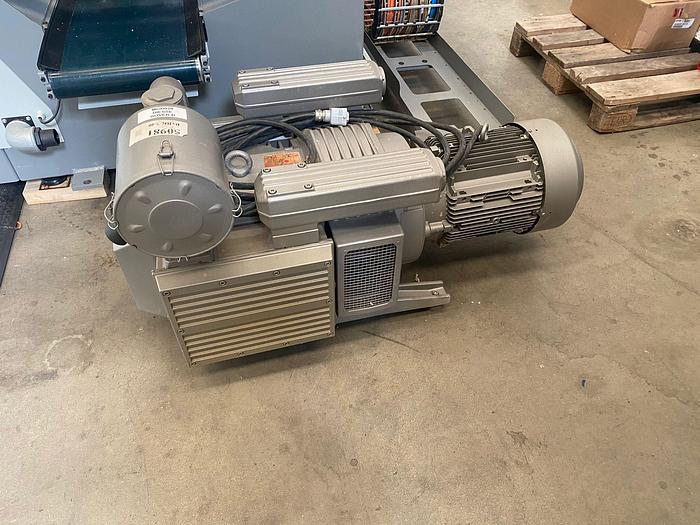

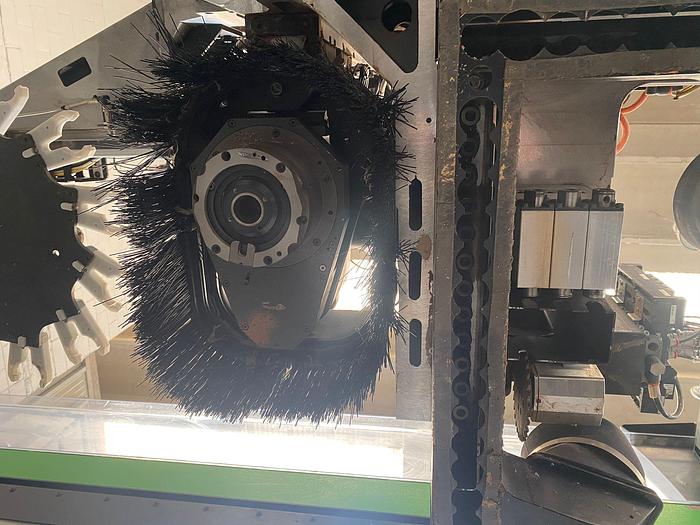

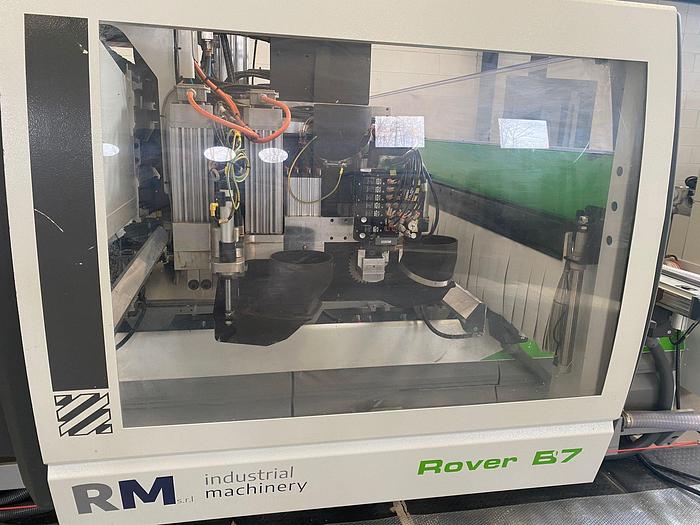

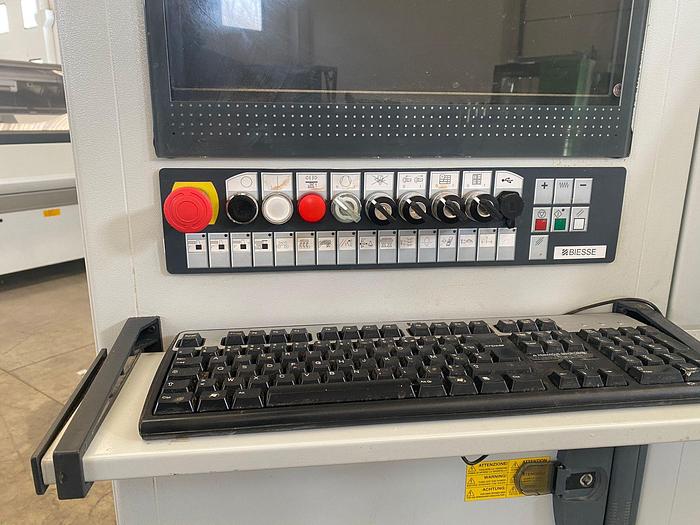

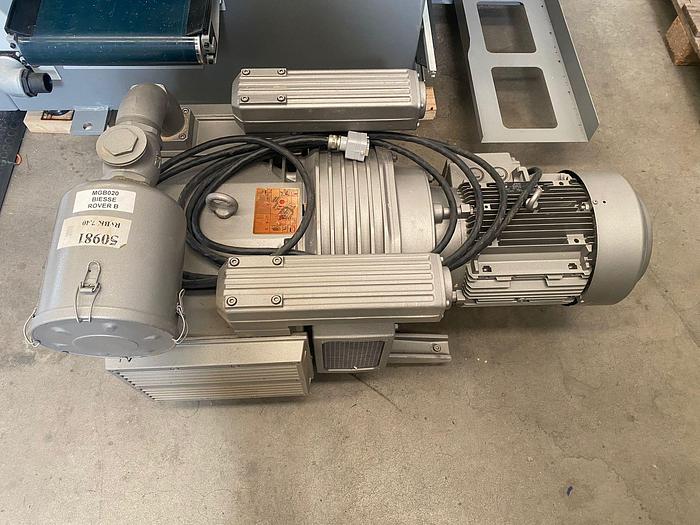

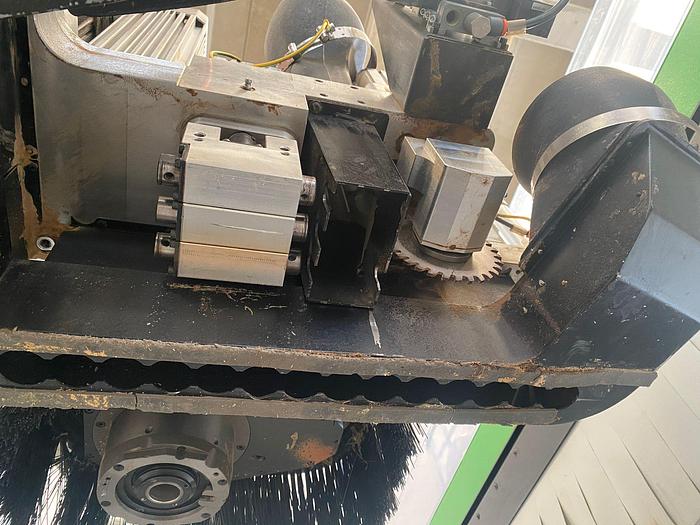

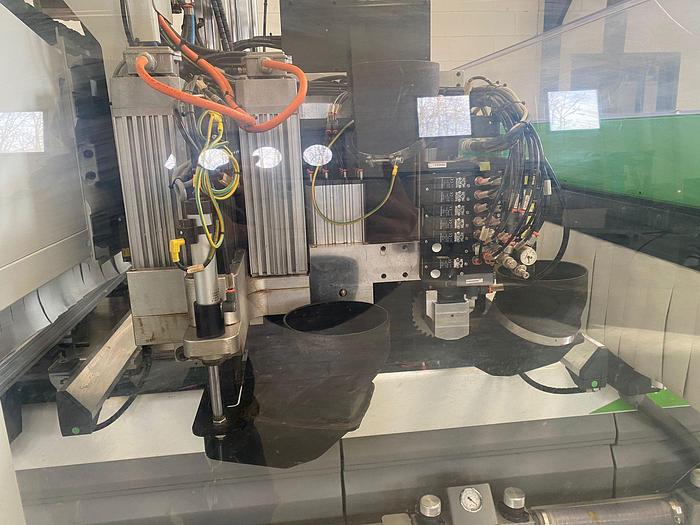

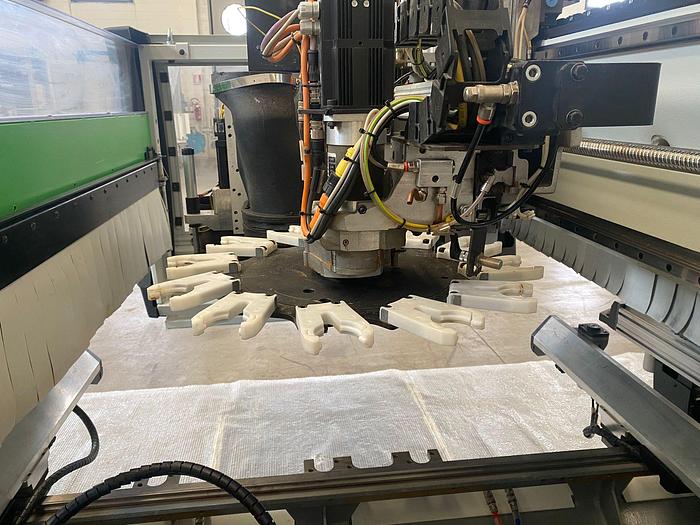

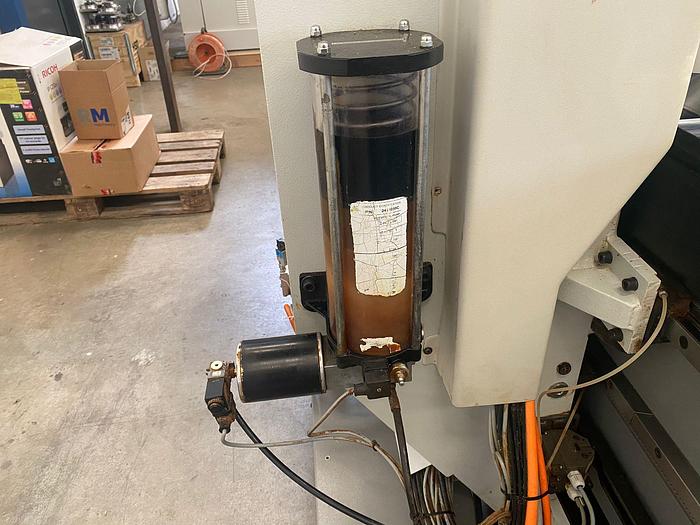

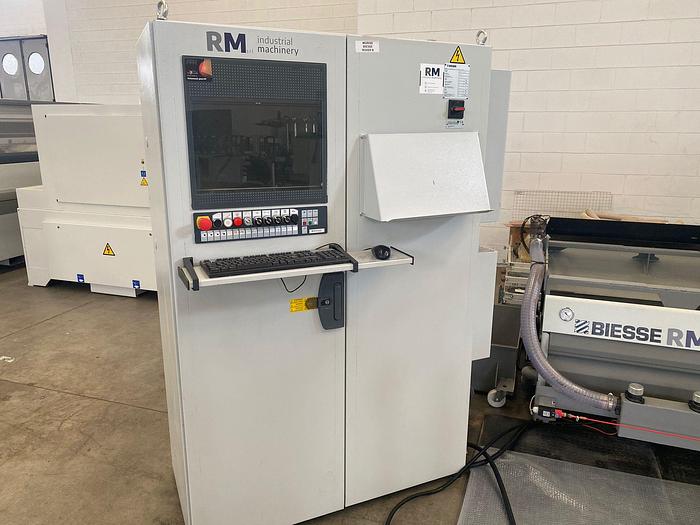

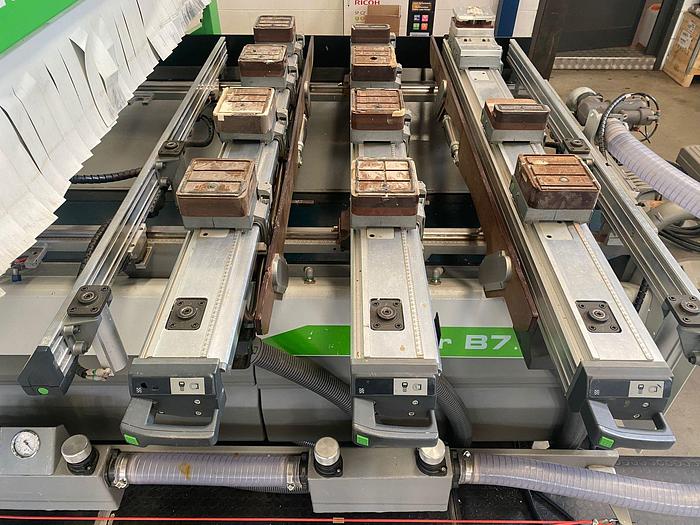

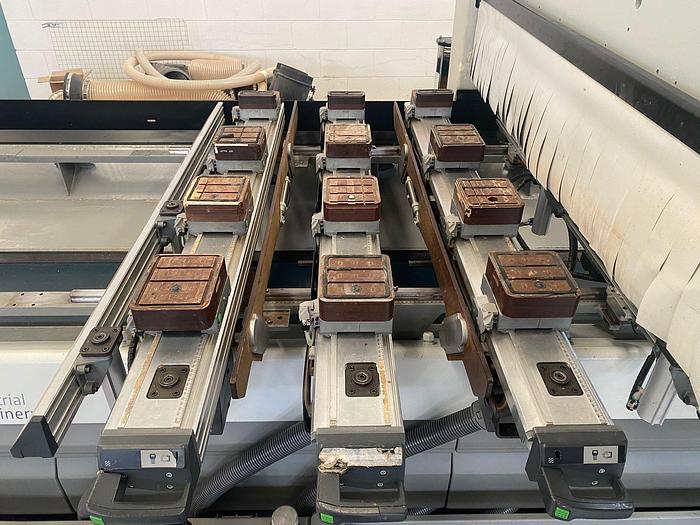

Biesse Bh 660 Numerical Control with Biesse Works Software Working field in X axis 3640 mm Working field in Y axis 1524 mm Working field in Z axis 150 mm N ° 2 work fields Worktop with bars 6 manually adjustable bars for the suction cups support N ° 4 pneumatic bakelite bars for lifting the panel N ° 3 manually adjustable suction cups for each bar with vacuum seal for fixing the panel during the processing N ° 1 vertical electrospindle with C Vector axis, with automatic tool change, motor KW 12, Automatic tool change system with 12 positions - positioned on the machine head BH35L boring head spindles arranged as follows: - N ° 14 vertical in X axis - N ° 10 vertical in Y axis - N ° 6 horizontal in X axis - N ° 4 horizontal in Y axis Independent blade for the execution of grooves in the X axis Front protection and safety system with carpets Perimeter protection grids Automatic lubrication system Air conditioning system for cooling and cleaning the machine control Vacuum pump mc / h 250 Increased vacuum drive system for the possible execution of machining on a full surface (nesting)
