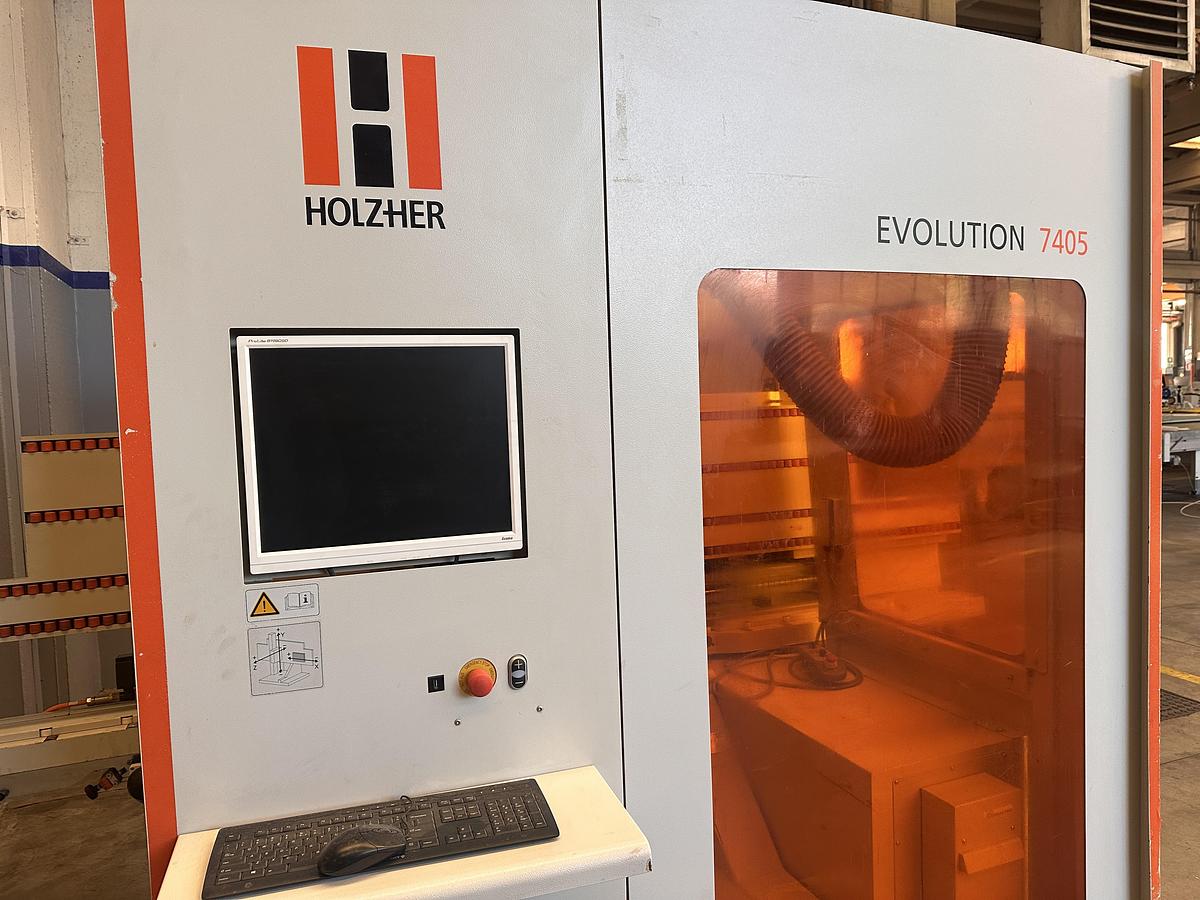

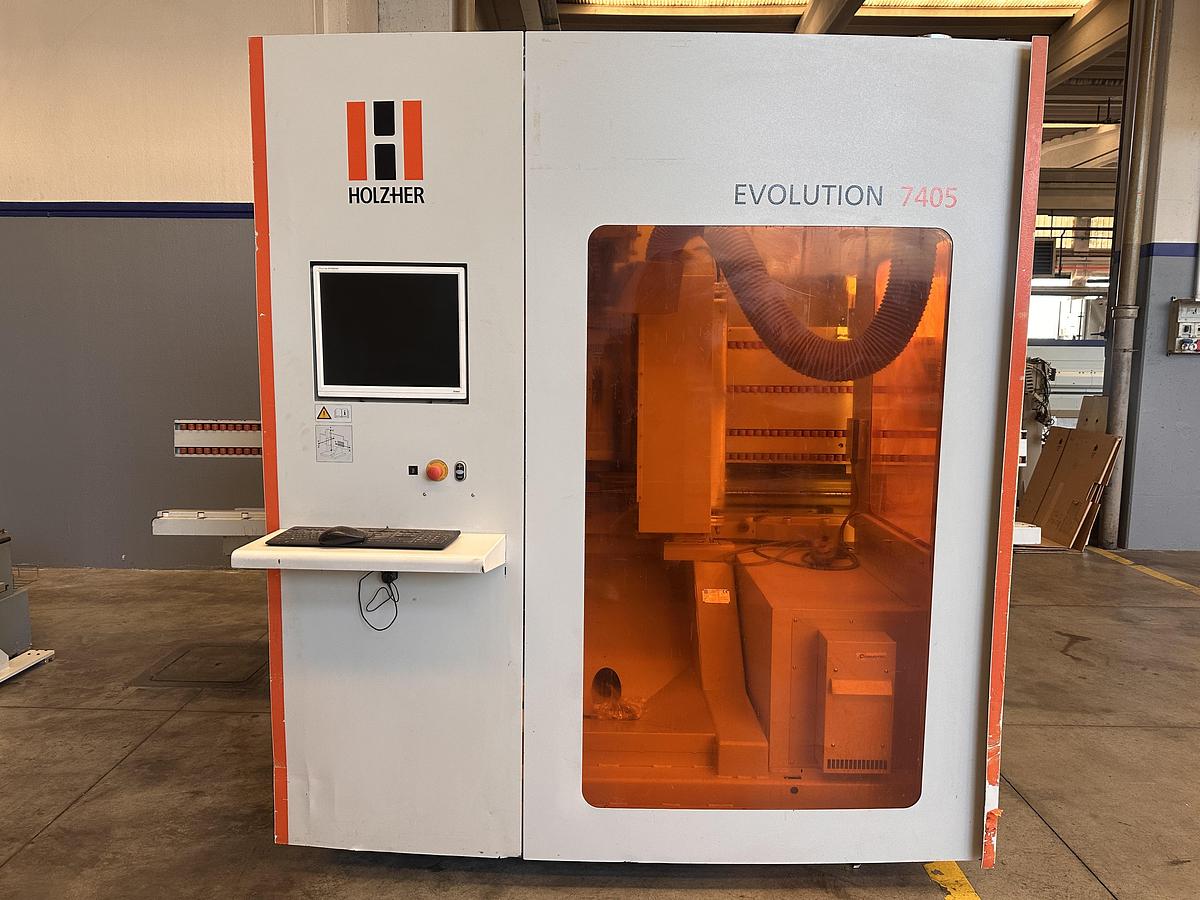

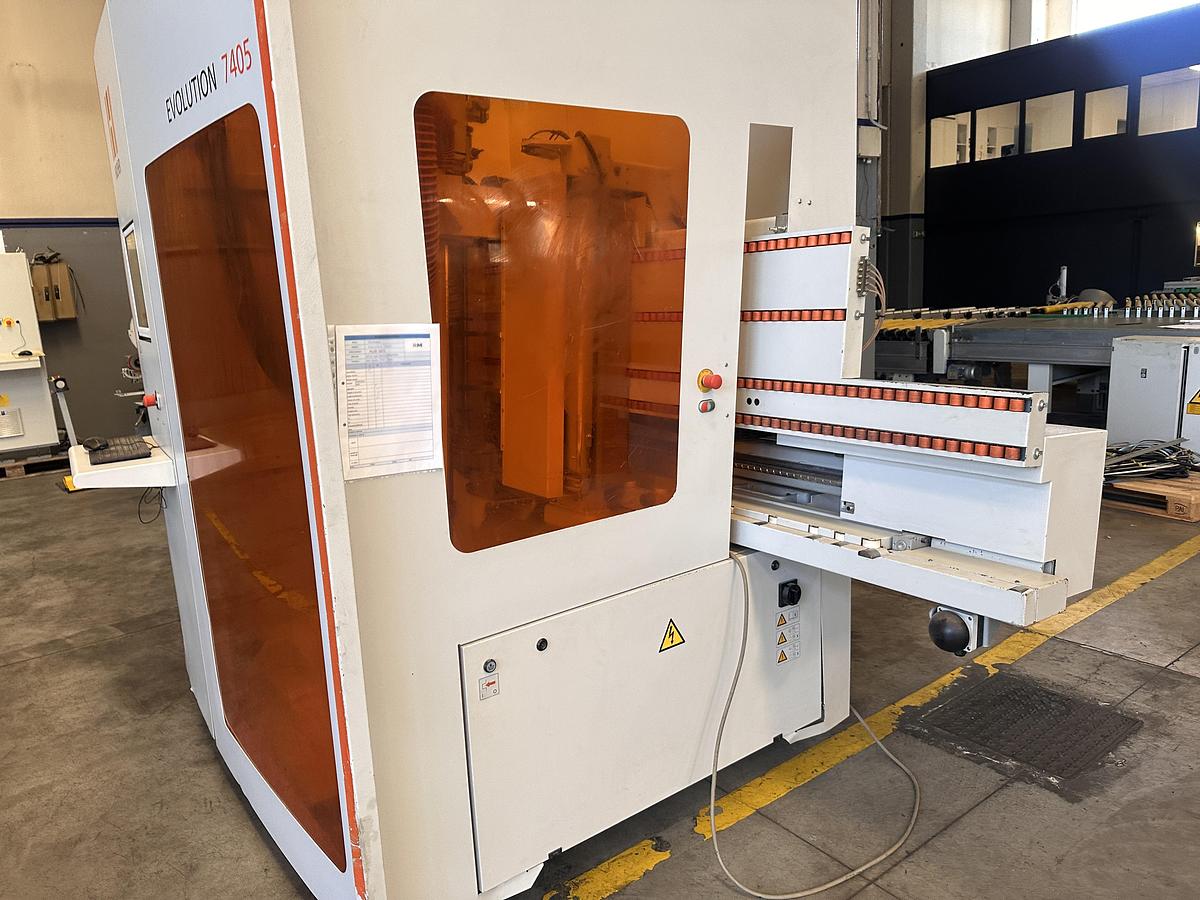

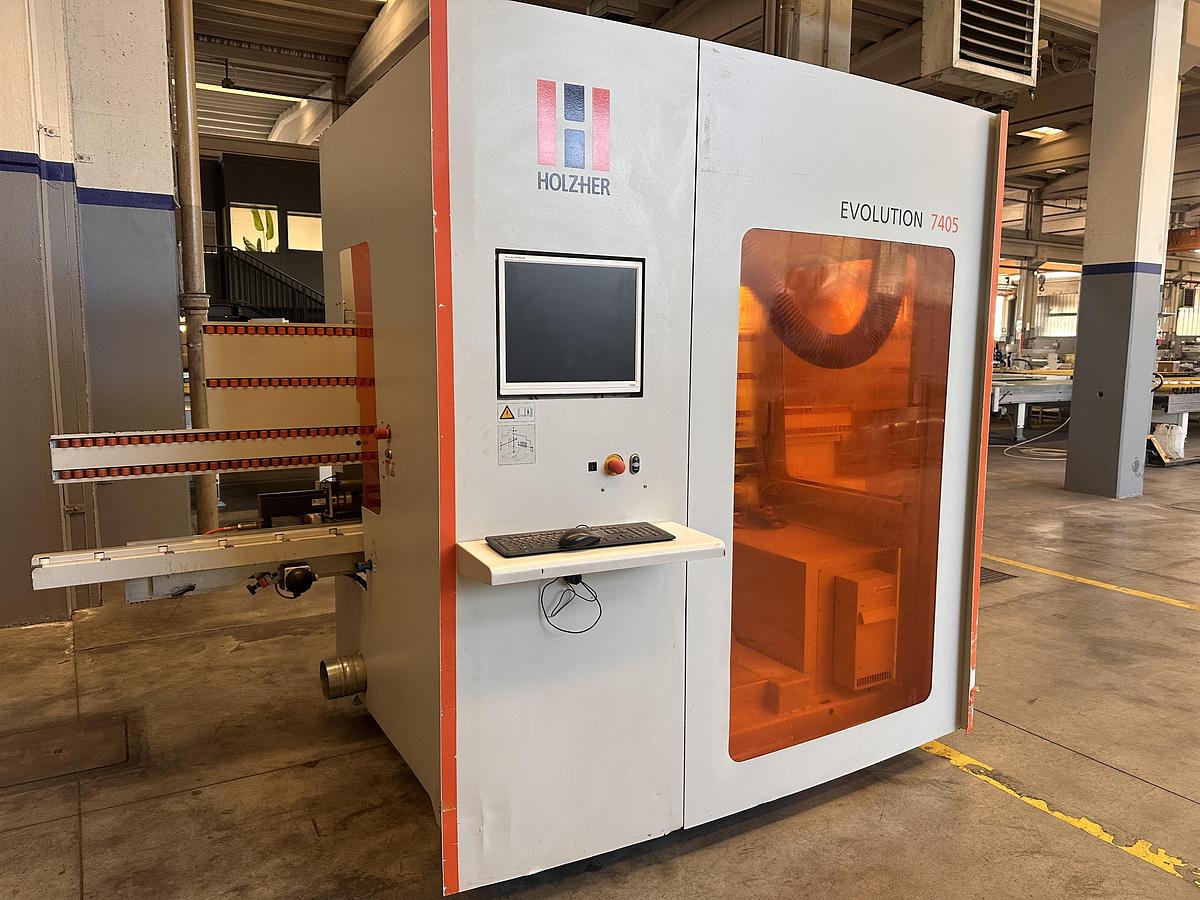

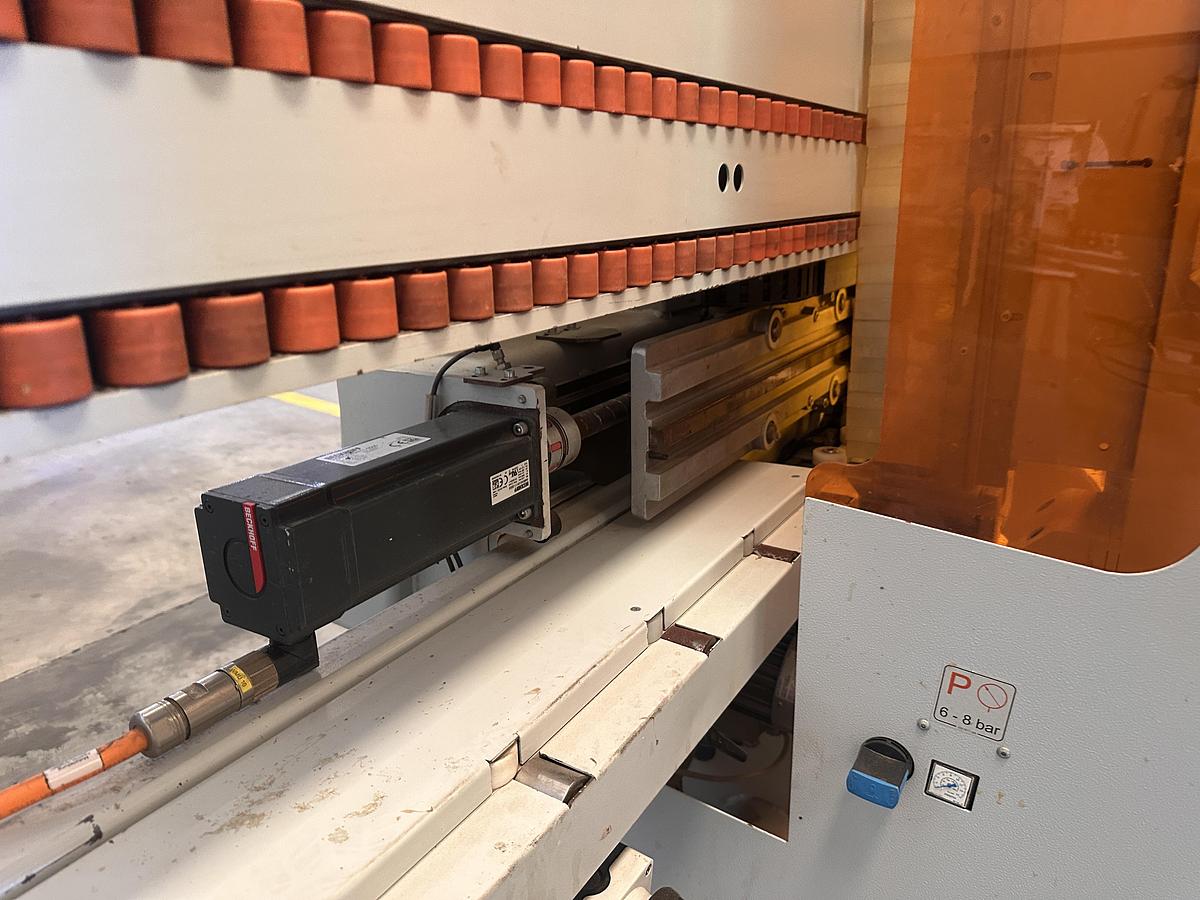

2017 Holzher Evolution 7405

Continuous process machining,

Milling on 5 faces possible,

Integrated vacuum pump,

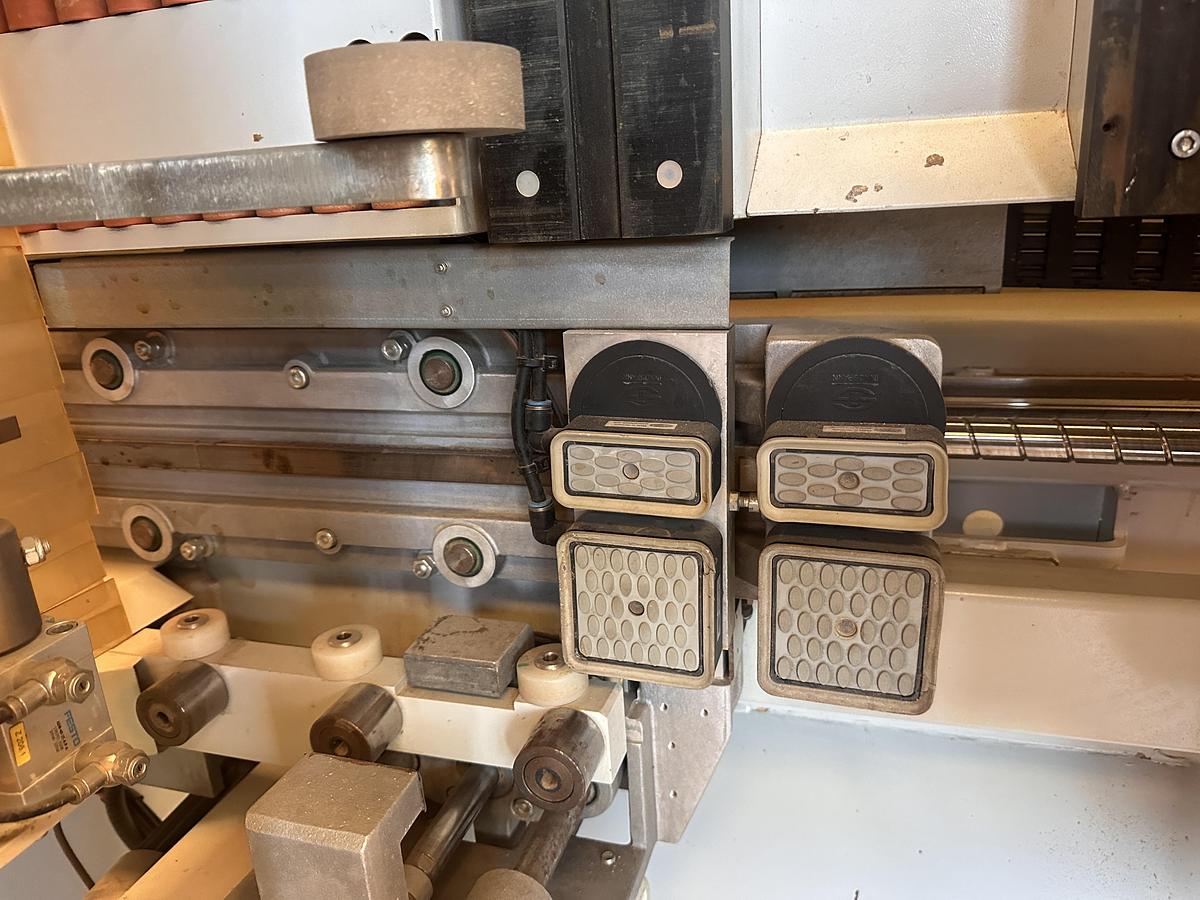

Automatic positioning of the suction cups,

Tempered and dust-protected prism guides.

Ball screw circulation on all axes,

Integrated electrical panel,

Electrical cabinet cooling with heat exchanger,

Manual control panel,

Drill bit

Groove milling group in X-direction

Tooling Storage Pick-Up,

Automatic centralized lubrication

Min. piece length X: 200 mm,

Min. piece width Y: 70 mm,

Min. piece thickness: 8 mm,

Max. length of piece X: 3,200 mm,

Max width of piece Y: 920 mm,

Max. piece thickness: 70 mm,

Machine control software: CAMOUS HOPS,

Main spindle motor power: 6.5 kW,

Main spindle range: 1,000 - 18,000 rpm,

Main spindle interface: HSK-F63,

Drilling unit motor power: 1.7 kW,

Drill spindle attachment: M10, precision seat 11 mm,

Vertical drilling spindle count: 13 pieces,

Horizontal double spindle head direction X: 2 pieces

Horizontal double spindle number, Y direction: 1 piece,

Saw group blade diameter: 120 mm,

Tooling in stock: 6 pieces,

Intake connection diameter: 2 x 120 mm + 1 x 140 mm,

Required air flow: 4,100 m³/h,

Requested static depression: 2,500 - 3,000 Pa,

Required air velocity: 30 m/s,

Compressed air connection: 6 bar,

Compressed air consumption: 300 l/min.
