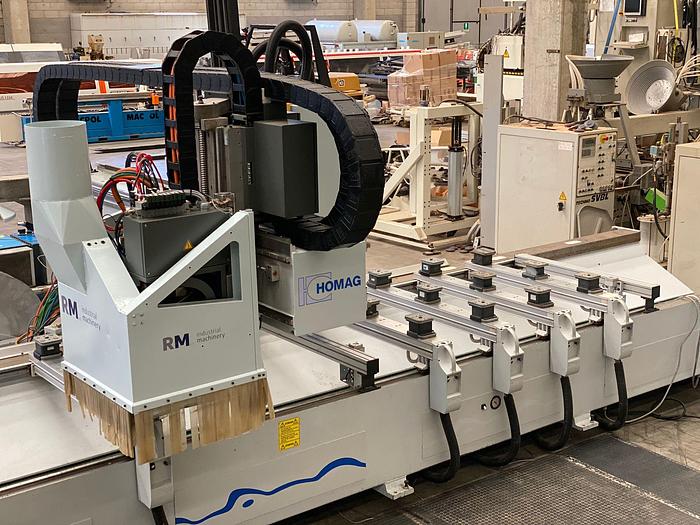

2004 Homag Optimat BAZ 32/50 / K

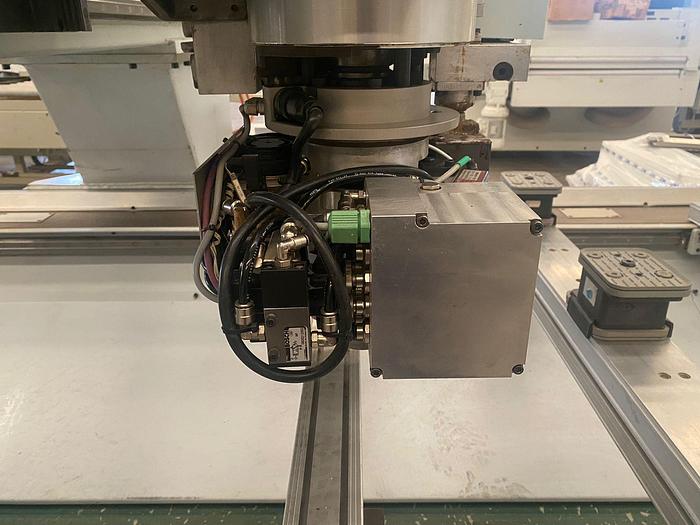

Numerical Control Power Control Homati PC 83 with WoodWop Software Working field in X axis 5800 mm Working field in Y axis 1480 mm N ° 8 adjustable panel support bars for positioning the suction cups N ° 3 adjustable suction cups for each bar with vacuum seal for fixing the panel during processing N ° 1 vertical electrospindle with C axis with automatic tool change, Hsk type cones Automatic tool change with 18 positions on the back of the machine Boring head with 18 spindles arranged as follows: - N ° verticals in X axis 11 - No. of verticals in Y axis 7 - N ° 1 cross aggregate Edging unit with glue pot and pre-melting device for EVA glue N ° 1 blade aggregate N ° 1 trimming aggregate N ° 1 edge scraper aggregate Edge holder magazine Front protection and safety system with carpets Chip evacuation system with motorized belt Air conditioning system for cooling and cleaning the machine control N ° 1 vacuum pump
